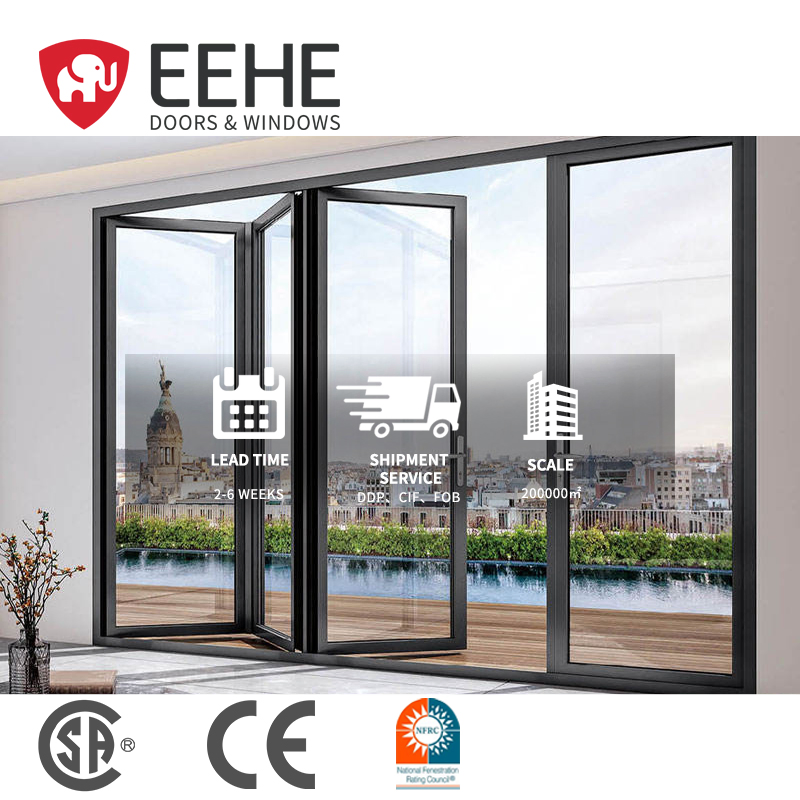

Eehe Aluminum Bifold Entrance Doors with Architectural Door System Top Hung Track Large Opening CE

After-sales Service: 24/7 Online Support for Fast Solutions
Warranty: 5 Years
Material: Aluminum Alloy

Product Description

Bifold Entrance Doors
Wide Coverage

Covering over 50 states in North America with professional standards.

Responsive Services

Quick response through online communication and efficient resolution of issues.

After Service

Reliable support for non-human factors, focusing on replacement quality.

Basic Information
Model NO.
80 Series
Style
Modern
Open Style
Folding
Sound Insulation
35 dB
Screen Netting
Nylon
Position
Exterior
Security Rating
A
Frame Depth
78mm
Profile Thickness
2.0mm
Standard Glass
5mm Gr+25ar+5mm Gr
Size Range
W: 400-800mm, H: 900-3000mm
Opening Method
Foldable Inner/Outer Door
Product Specifications
Material 1.8mm Thickness Thermal Break Aluminum Profiles - Powder Coating Finishing
Colour Powder Coating / Fluorocarbon Gray / Dark Curry
Glass 5mm(Loe-E)+15A+5mm(Loe-E)
Hardware Silver Handle Lock (Customized Available)
Architectural Door System

Embrace the Future of Window and Door Design

Our series invites you to look ahead and reimagine your living space. We redefine your view with windows and doors that offer expansive openings and sleek architectural lines.

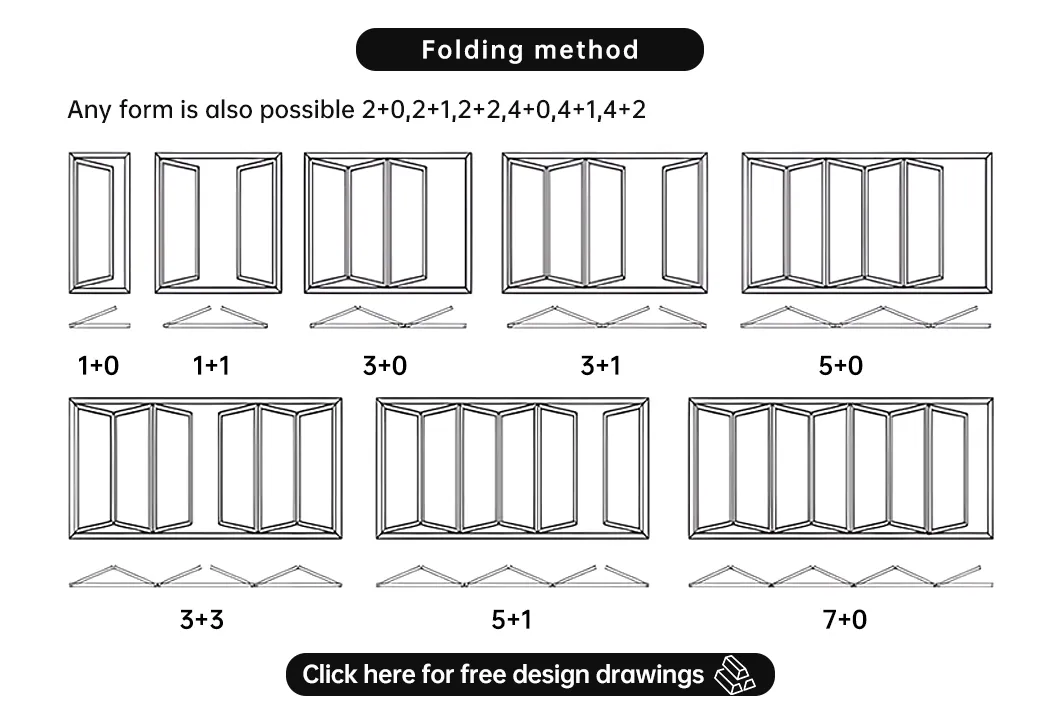

Bifold Door Design

Global Project Excellence

Our projects span the globe. In the North American market, we have successfully delivered numerous large-scale benchmark projects, covering luxury apartments, commercial complexes, and high-end hotels. Our track record demonstrates compliance with world-class engineering standards.

Global Projects

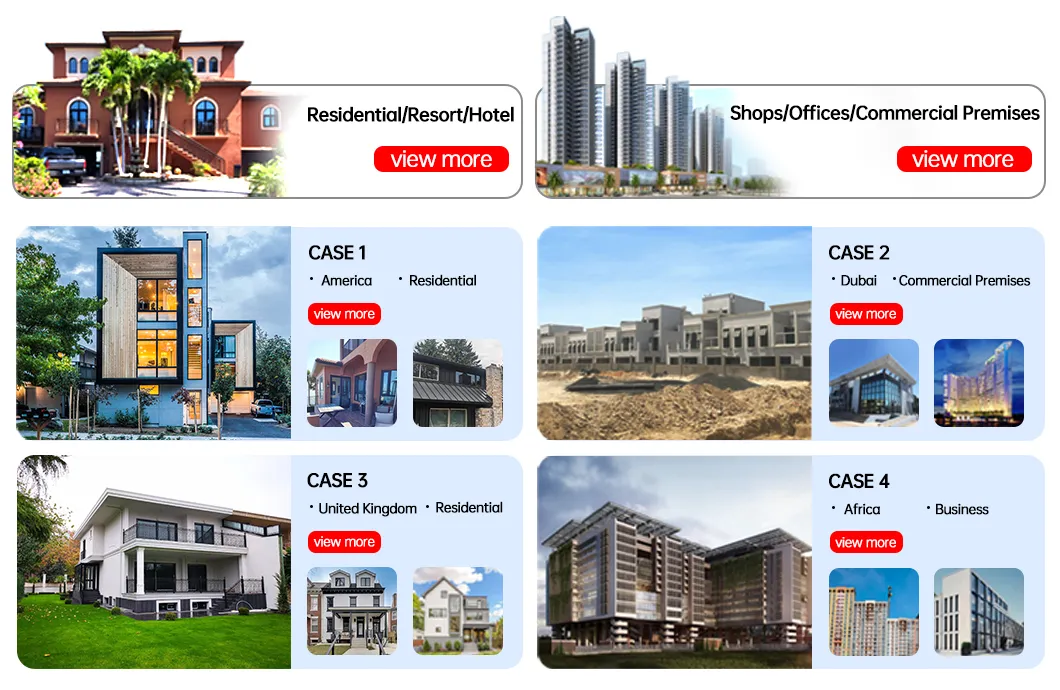

Application Scenarios
Application 1 Application 2
Application 3 Application 4
Application 5 Application 6

Waterproofing & Insulation at Its Best

While sleek aesthetics and wind resistance are paramount, our systems go even further by excelling in water resistance and thermal insulation, ensuring comfort in all climates.

Insulation Detail

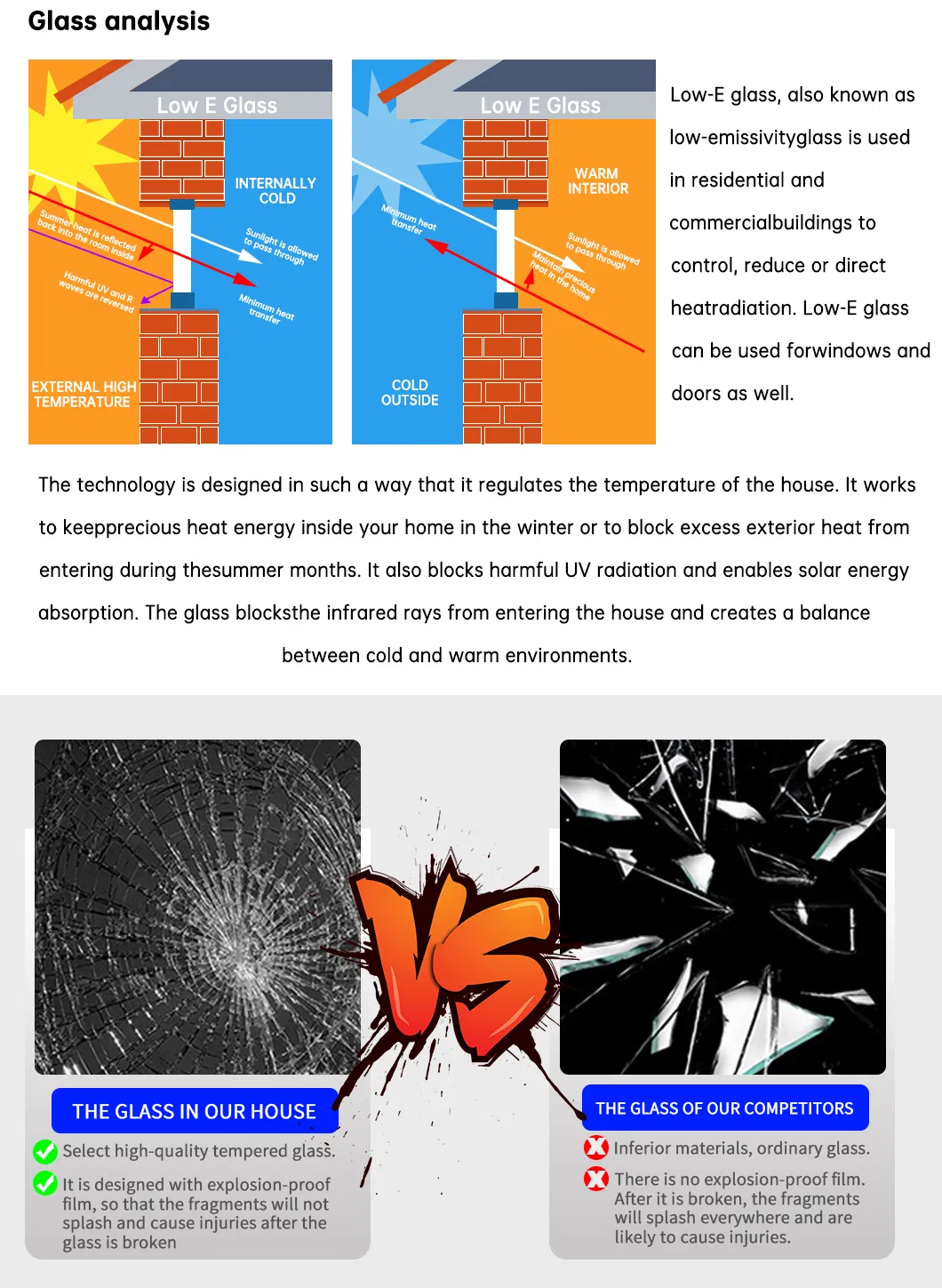

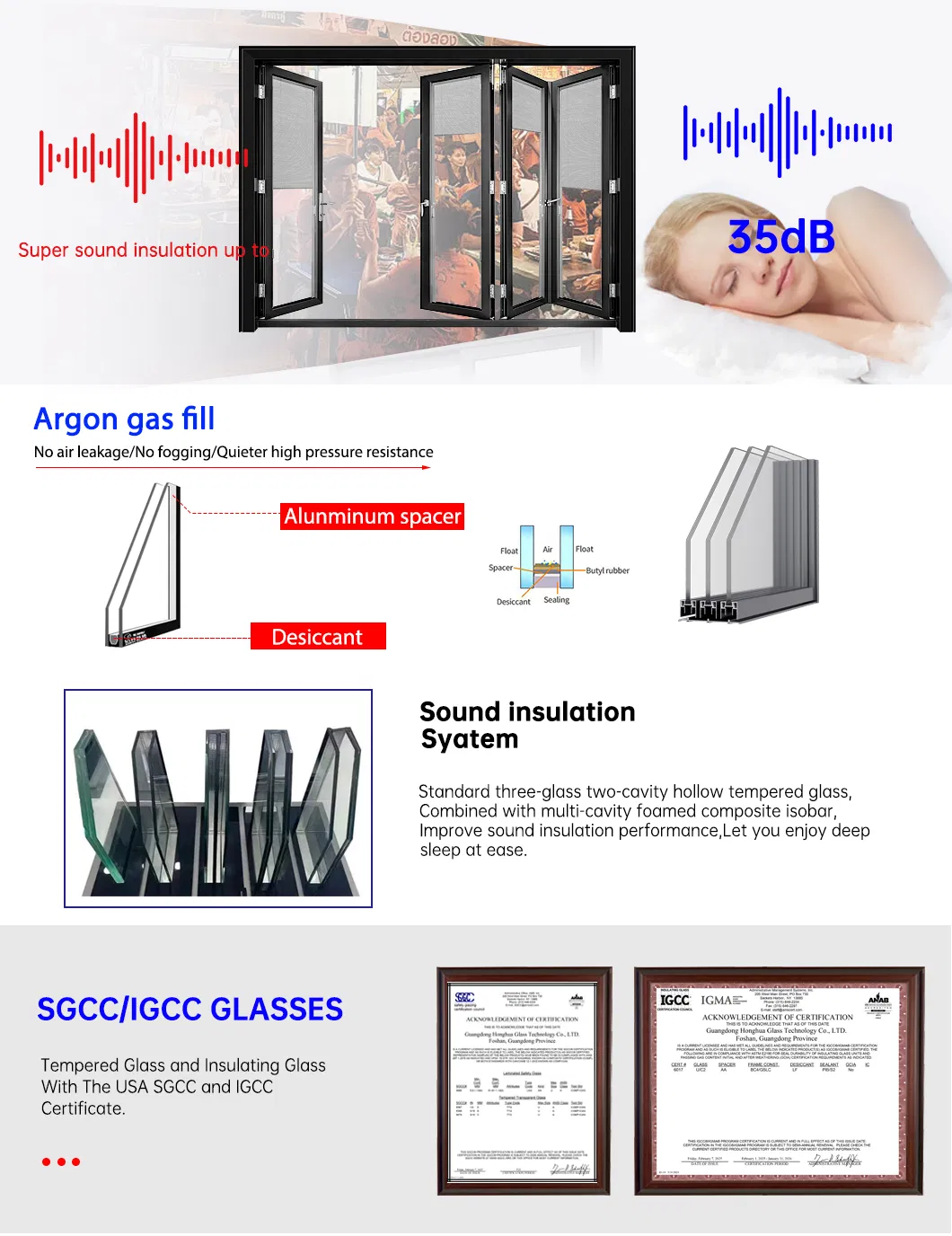

High-Performance Glass Sheets

Utilizing premium glass with high light transmittance, low impurity content, and strong stability. Our glass fully complies with international standards for safety and efficiency.

Glass Technology

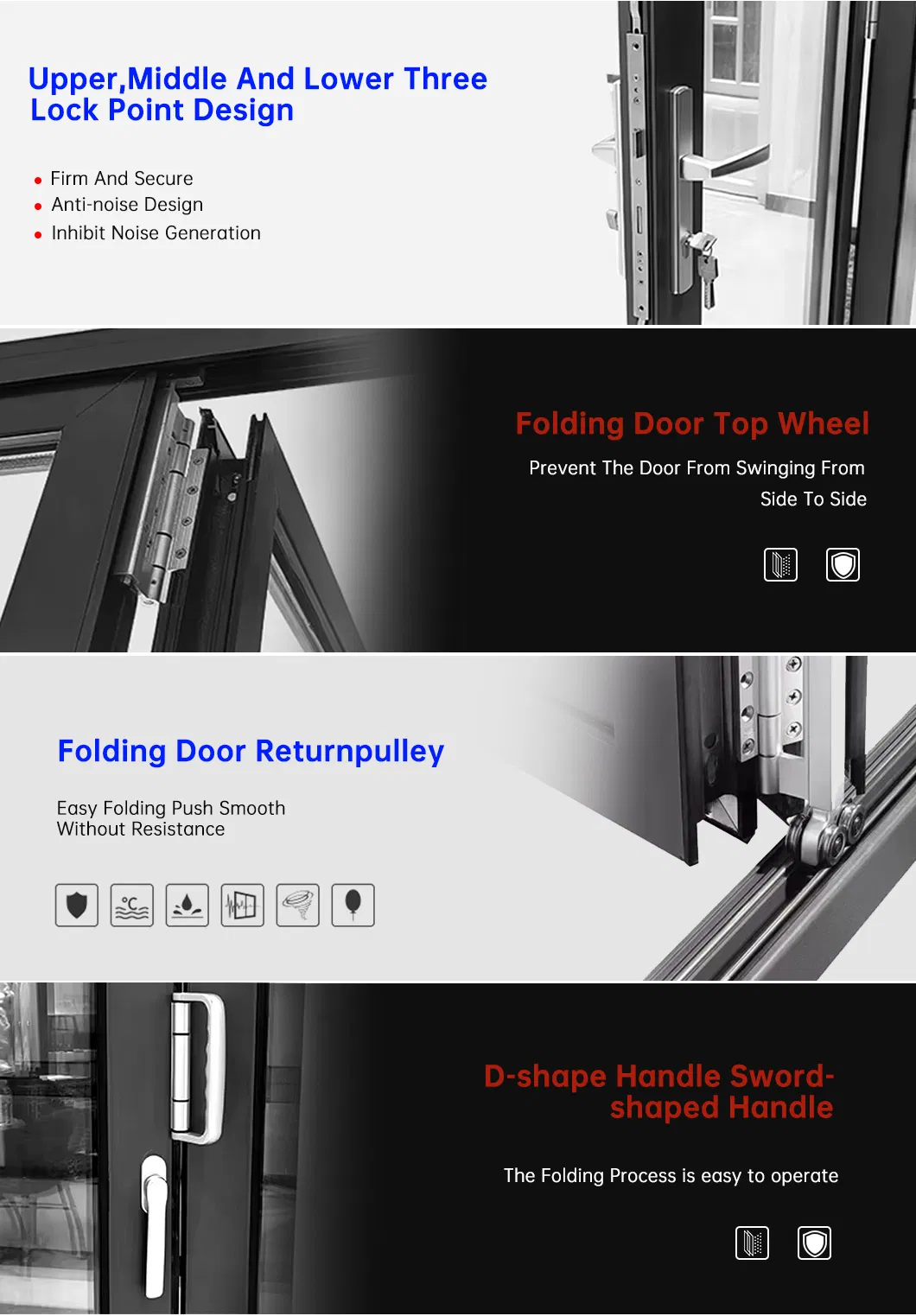

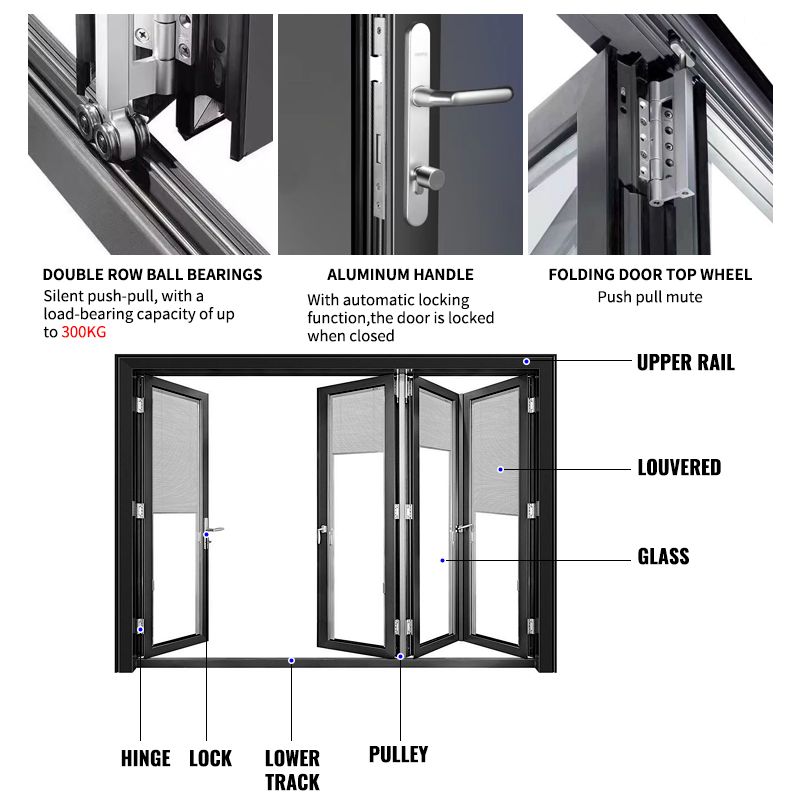

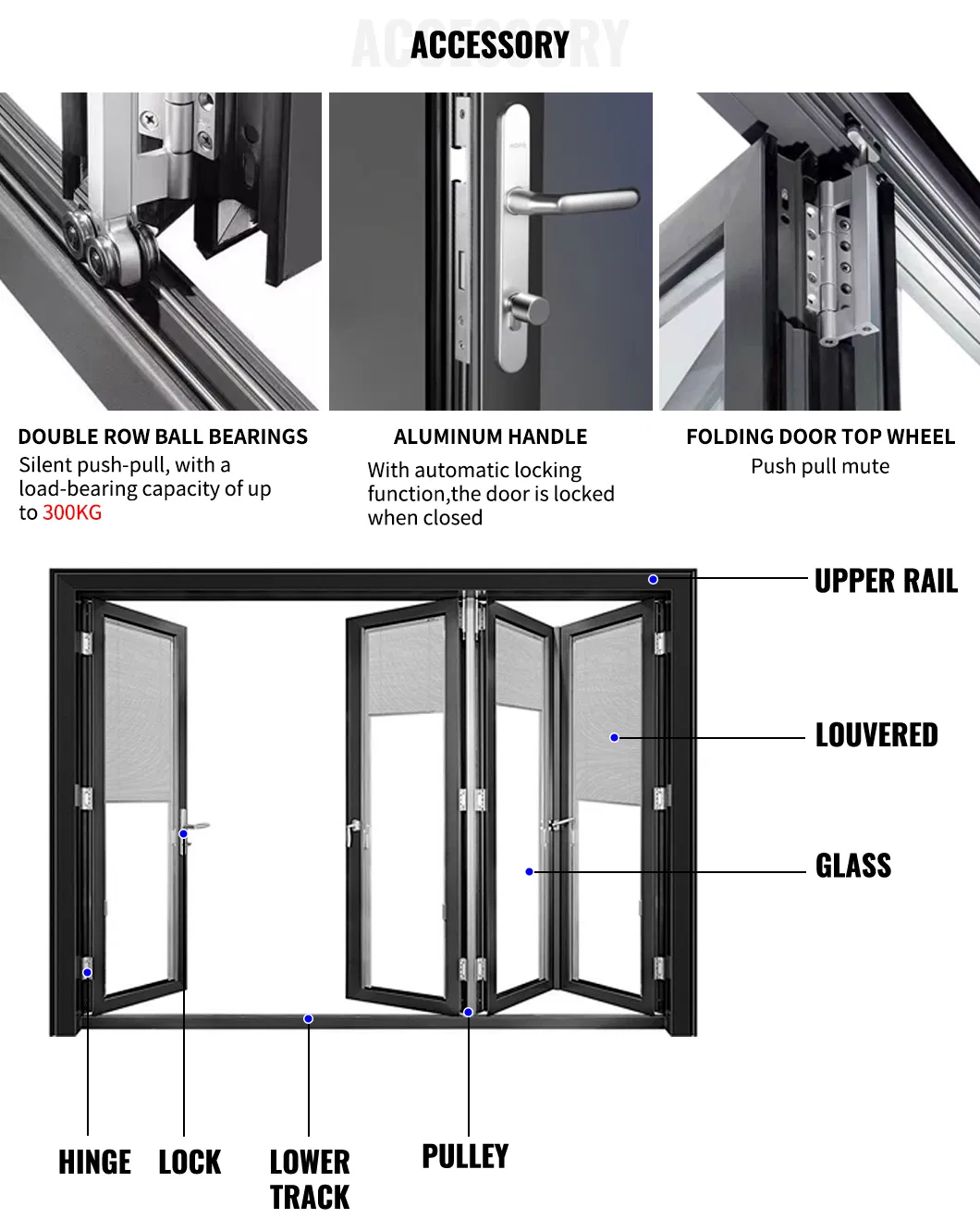

Track Detail Hardware Detail
Frequently Asked Questions
What are the primary benefits of the 80 Series Bifold doors?
The 80 Series offers a modern folding design that maximizes opening space, provides excellent sound insulation (35dB), and features a high security rating of A for exterior use.
What kind of glass is used in the standard configuration?
The standard setup includes 5mm Gr + 25ar + 5mm Gr insulated glass. We also offer 5mm(Low-E) + 15A + 5mm(Low-E) options for enhanced thermal performance.
Can the doors be customized to specific sizes?
Yes, our doors are fully customizable. The standard size range per panel is 400mm to 800mm in width and 900mm to 3000mm in height.
How is the weather resistance and insulation handled?
The doors use 1.8mm to 2.0mm thermal break aluminum profiles with 15mm insulation strips, ensuring top-tier waterproofing and thermal efficiency.
Is there an option for mosquito protection?
Yes, the system comes with integrated nylon screen netting material to provide protection while maintaining an expansive view and airflow.
What surface finishes and colors are available?
Standard colors include Fluorocarbon Gray and Dark Curry. The surface is finished with high-quality powder coating or fluorocarbon treatment for maximum durability.
