Modern Design Aluminum Alloy Auto Rotate Door for The Main Entrance Door of a Large Building Site

Customization: Available
After-sales Service: 2 Years After Sale Service
Warranty: 2 Year

Product Description

Basic Specifications

Model NO.:automatic revolving door
Open Style:Induced
Position:Commercial
Surface Finishing:Finished
Material:Aluminum
Type:Revolving
Canopy:300~600 mm Height
Certification:CE, ISO9001
Special Function:Pedestrian Access
Motor:Made in Germany
Finishing:Stainless Steel, Powder Coating, Anodized
Power of Motor:550 W
Voltage&Frequency:AC220/50Hz
Color:Customized
Glass:Tempered
Production Capacity:20 Sets/Month

Product Description

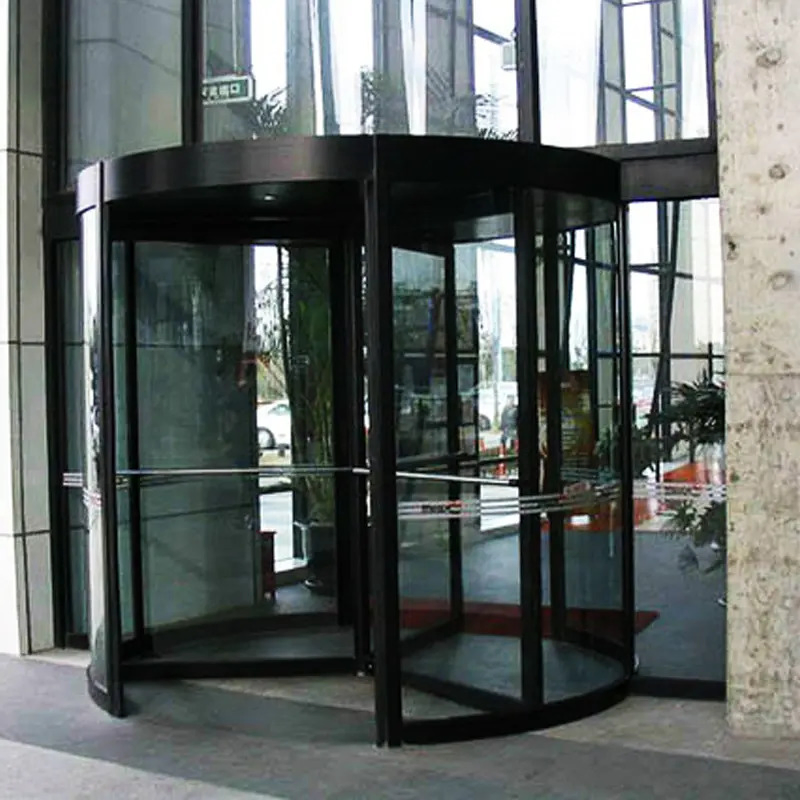

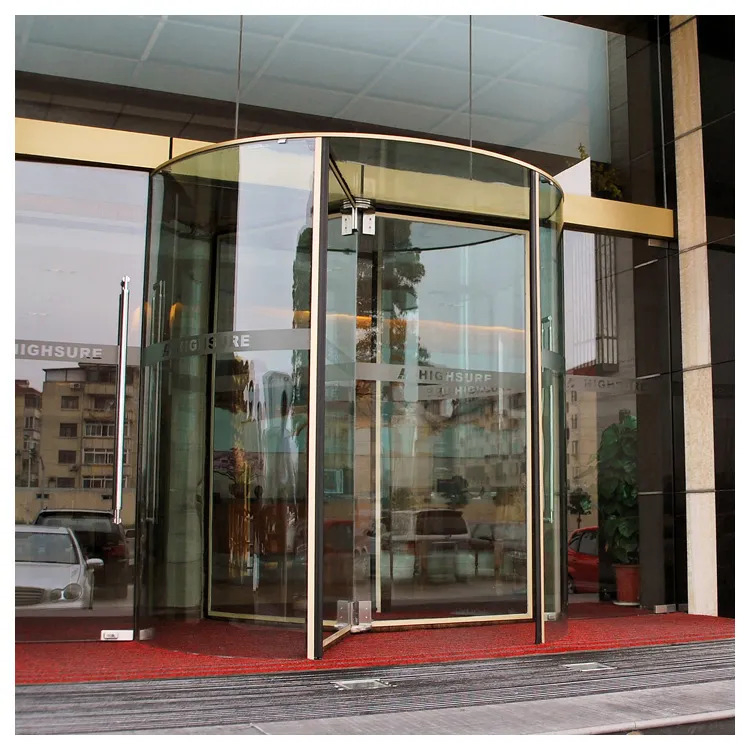

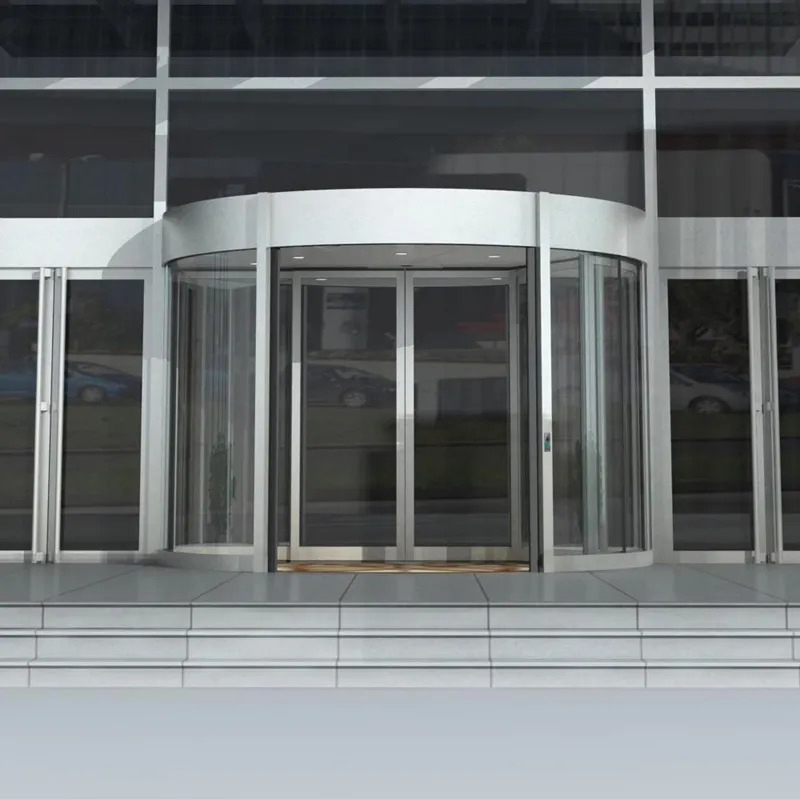

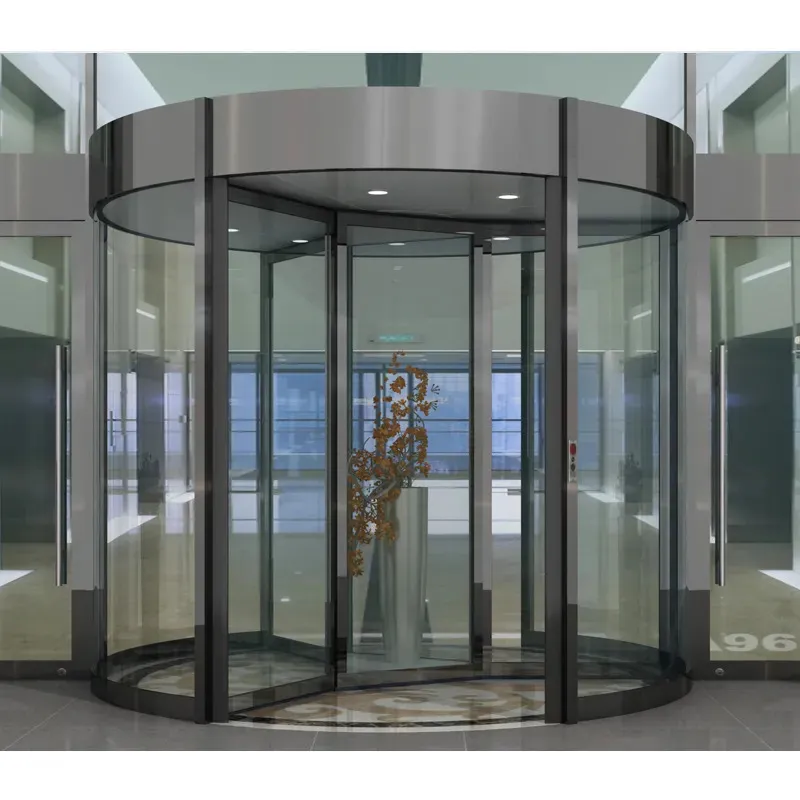

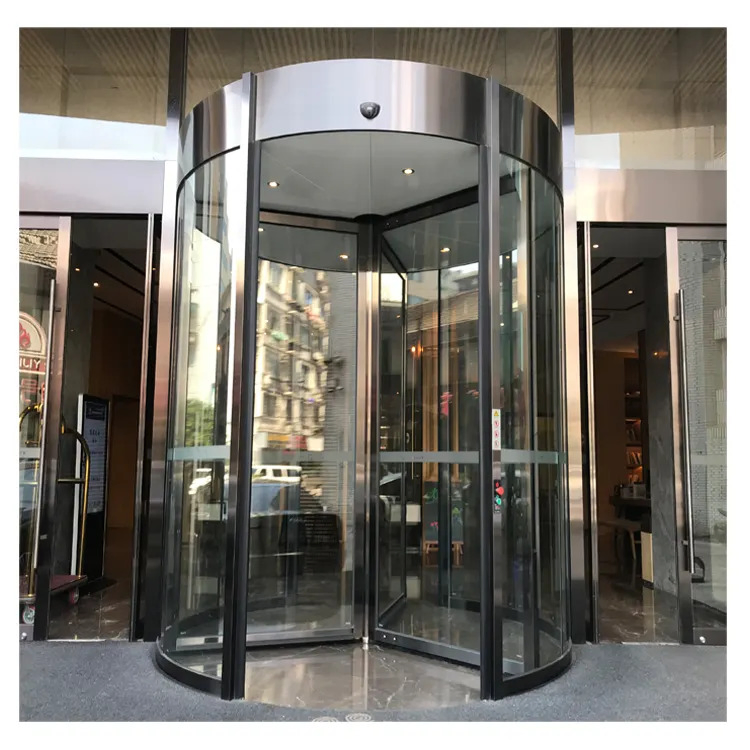

The Two-wing Revolving Door is the perfect solution for keeping dust, noise, rain, sleet and snow from entering buildings, which effect energy efficient and environment protection; Under the sliding door status, the more capacious and comfortable passage is available for large crowds traffic flow.

Two-wing Automatic Revolving Door is the best option for the main entrance of grand commercial buildings such as the hotel, office buildings, shopping malls, exhibition center, because of its excellent characters e.g. the splendid and noble appearance, stable and reliable operation, exquisite technology, safety in use.

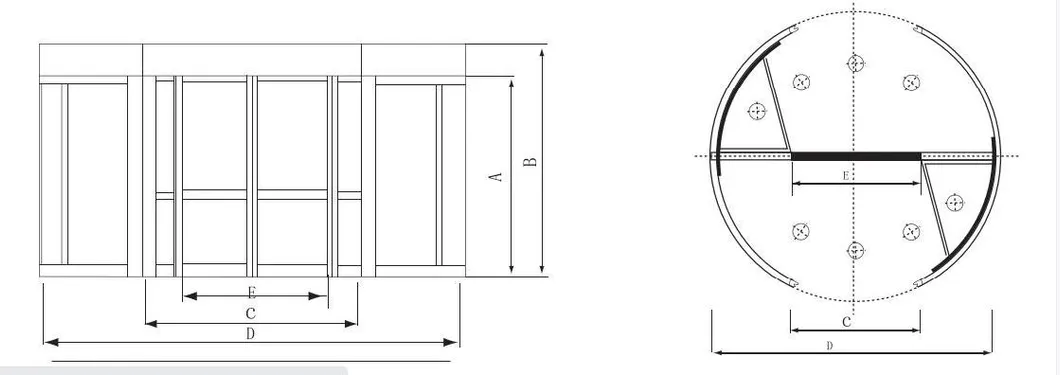

Outer Diameter(mm) Inner Diameter(mm) Passage Height(mm) Canopy Height(mm) Total Height(mm) Entrance Width(mm)
300028102300-3300300-6002400-40001328
320030101428
340032101528
360034101628
380036101728
400038101828
420040101928
440042102028
460044102128
480046102228

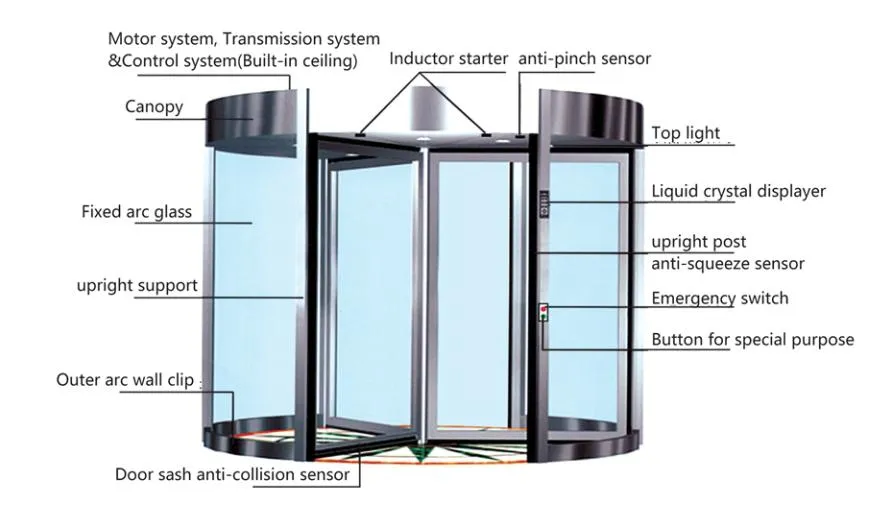

Advantages and Features

  • Aluminum alloy die-casting molding frame, high strength, bright color, good surface finish.
  • Various surface decorations: stainless steel (hairline/mirror), aluminum fluorocarbon spraying, anodic oxidation, copper decoration.
  • Tempered glass or special safety glass options.
  • Ceiling composed of radial wedge-shaped panels coordinating with the door decoration.
  • Dustproof canopy made with plywood or metal plate; exterior sealed for shower-proofing.
  • Digital program control system for easy operation and long service life.
  • Safety functions: Anti-squeeze, anti-strike, and safety detection.
  • Slow speed mode for disabled, elderly, or children via emergency button.
  • Automatic lifting and speed adjustment based on weather and visitor flow rate.

Core Functions

External Framework Bearing
Dual Models: Revolving & Sliding
Windbreak & Noise Insulation
Access Control Integration
Emergency Stop Button
Battery Backup System
Fire Alarm Integration
LED Status Display

Technical Data

Power Supply: 220V/50Hz | Rated Current: 3.8A
Motors: 370W*2 (Main) / 550W (Drive Unit)
Revolving Speed: High (3-4 r.p.m) / Low (0.5-1.5 r.p.m)
Material: Aluminum thickness ≥3mm
Control System: Digital LCD Panel (Panasonic System)
Glass: 6-8mm Tempered Glass
Ceiling & Lights: 1.2mm Aluminum Plate with 40W Energy-saving lamps

Frequently Asked Questions

What are the primary benefits of a two-wing revolving door?
It effectively prevents dust, noise, and weather elements like rain or snow from entering the building while maintaining high energy efficiency through its windbreak design.
How does the door handle high traffic during peak hours?
The system features dual working modes. For large crowd flow, it can be switched to the sliding door status to provide a more capacious passage.
What safety features are included for pedestrians?
The door is equipped with anti-squeeze, anti-strike, and anti-bump functions. It also includes an emergency stop button and a specialized "slow speed" button for disabled or elderly users.
Can the door's appearance be customized?
Yes, surface finishing options include stainless steel (mirror or hairline), aluminum fluorocarbon spraying, anodic oxidation, and copper decoration in various colors.
What happens during a fire alarm or power outage?
The system includes a fire alarm interface and a battery backup to ensure safety operations and emergency exiting during critical situations.
