Remote Mobile APP TCP IP WiFi RS485 Fingerprint Biometric Door Controller Access Control and Time Attendance Terminal System

Customization: Available
Type: Web Attendance System
Attendance Method: Wireless

Product Description

📋 Basic Specifications
Model NO.
FR-F16-1
Software System
WIN2000
Communication Mode
TCP/IP, RS485
Display
2.4 Inches TFT Screen

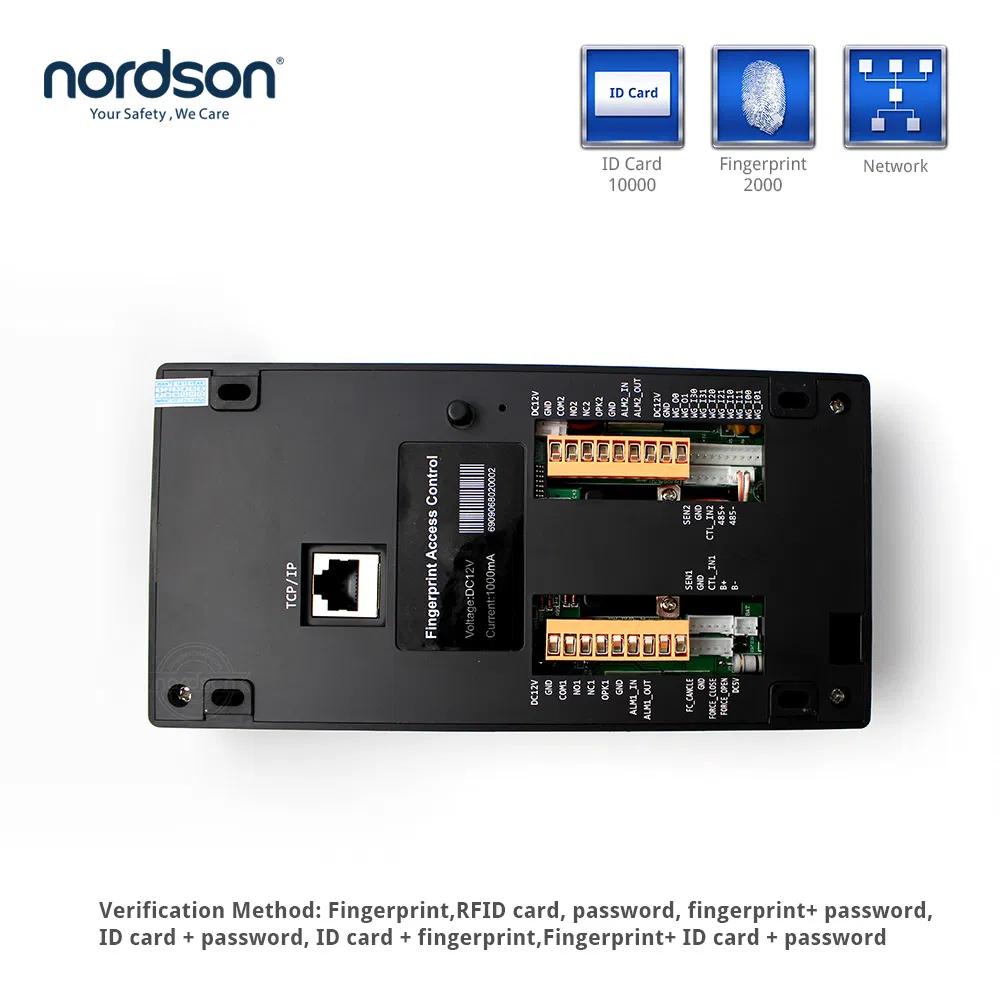

Verification Method
Fingerprint, ID Card

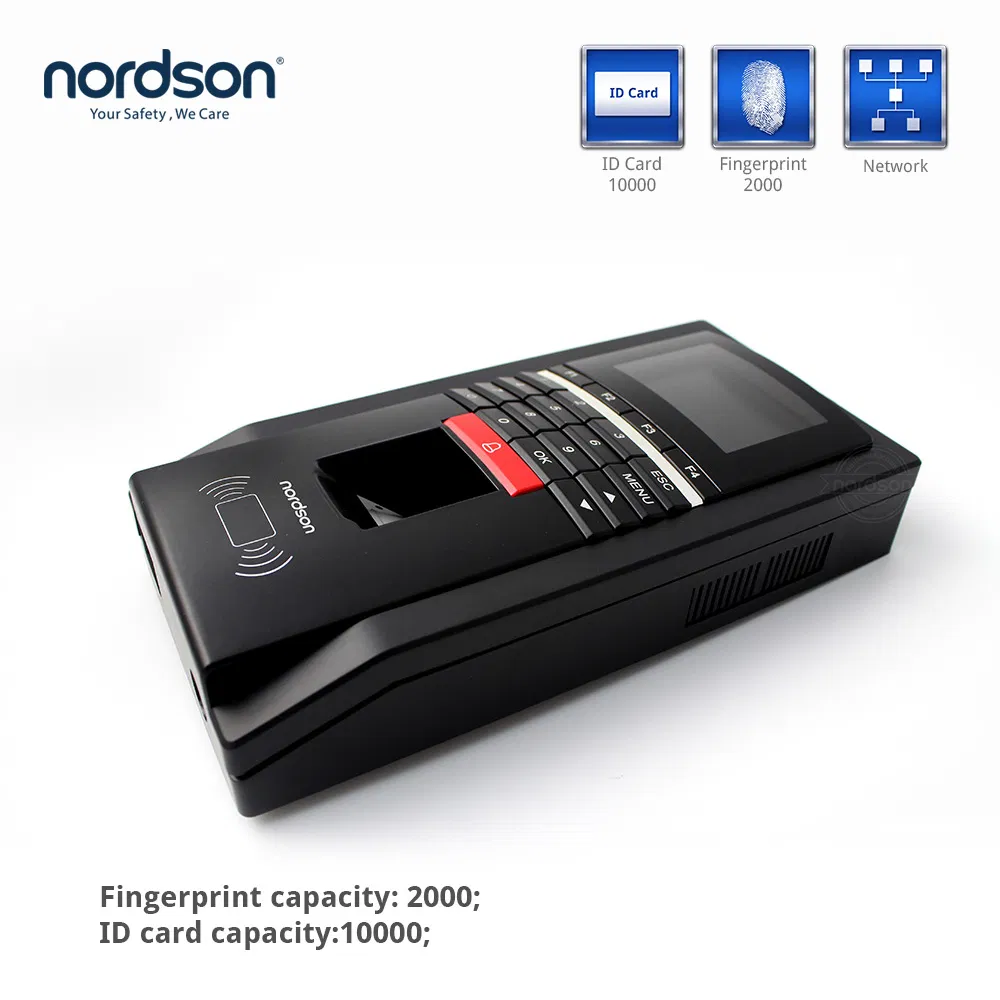

Fingerprint Capacity
2000
ID Card Capacity
10000

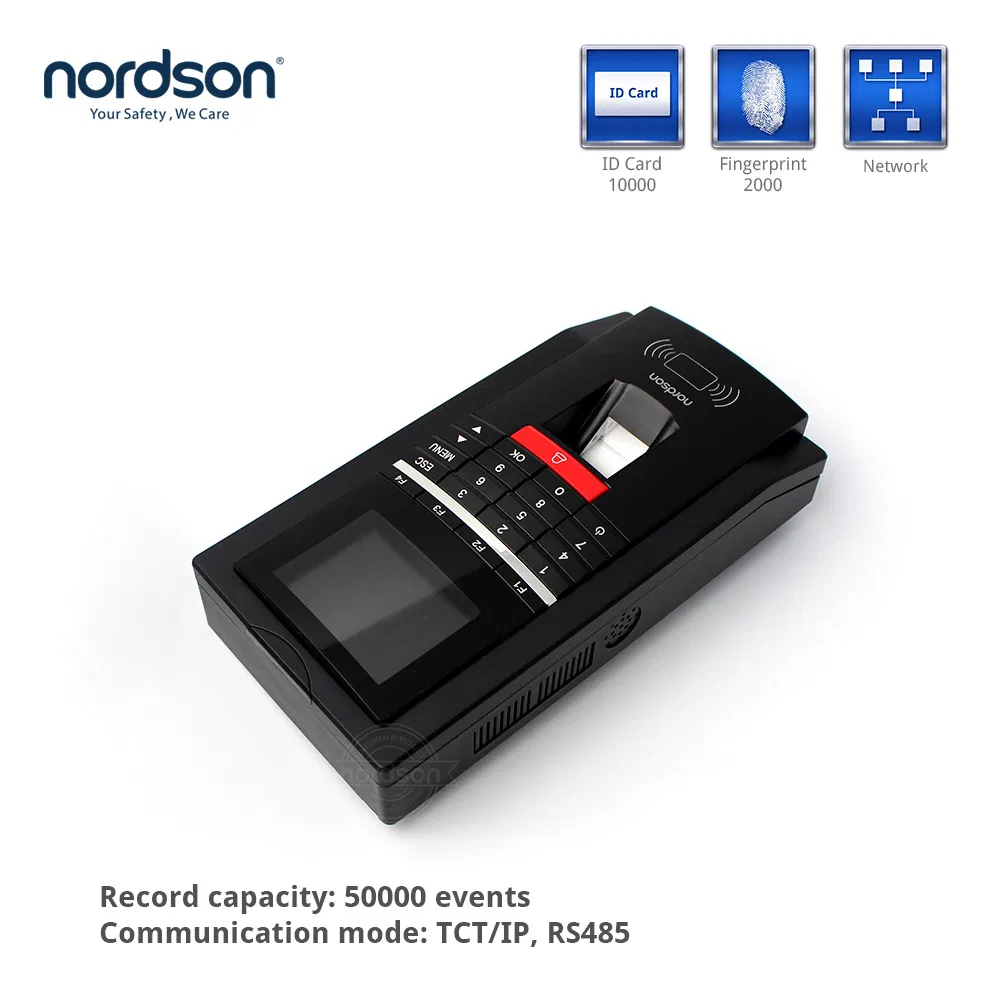

Record Capacity
50000 Events
USB Connection
Available

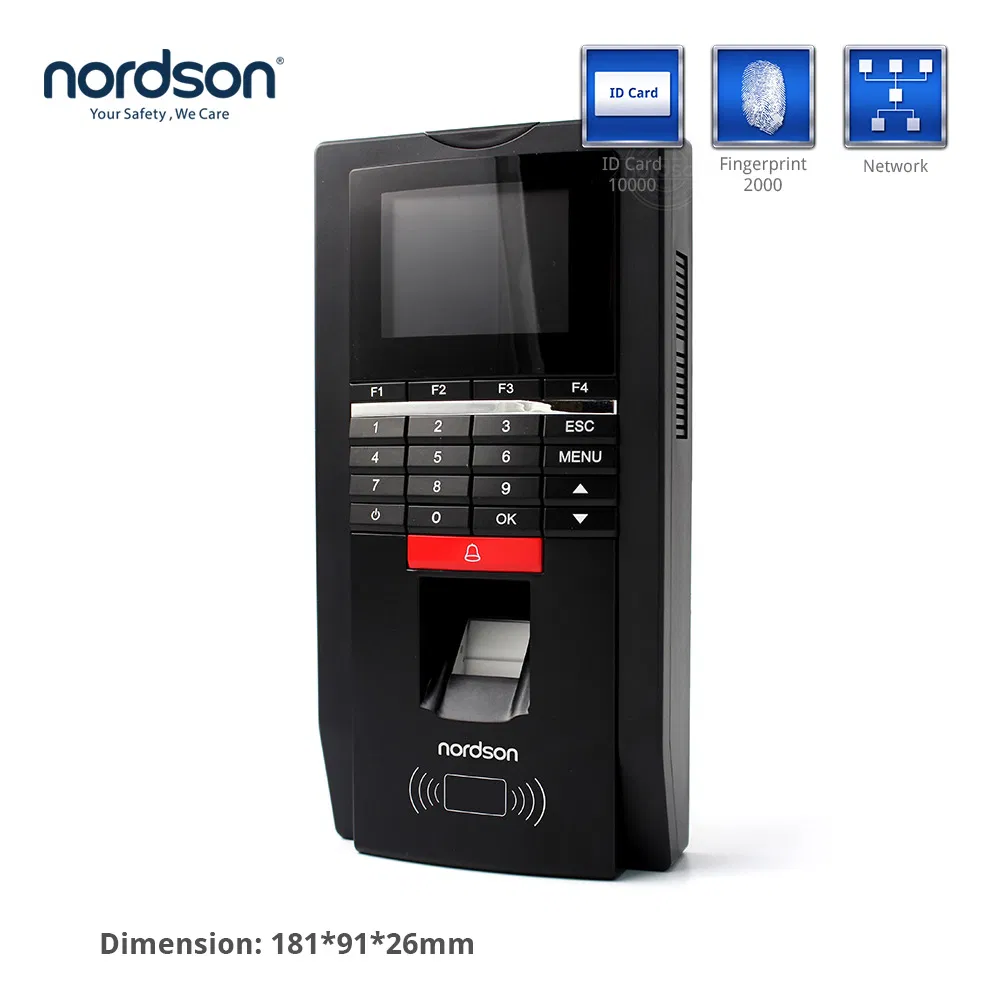

Dimension
181*91*26mm
Working Voltage
12V/1A
Specification
CE, ROHS, SGS
📷 Product Visuals
💻 Product Description

Fingerprint RFID access control with Wiegand output and input Anti-passback

Security Features

Wiegand output and input integrated, supporting Anti-passback functionality for enhanced security protocols.

Multi-Verification

Supports both high-precision Fingerprint recognition and ID Card identification methods.

Robust Capacity

Stores up to 2,000 fingerprints, 10,000 ID cards, and 50,000 event records internally.

📦 Packaging & Delivery
Package Size
34.00cm * 40.00cm * 32.00cm
Gross Weight
25.150kg
Packaging Details
Neutral package
Delivery Detail
3-5 days after received your remittance
🛠 OEM / ODM Services

8 Years of Industrial Experience:

  • Design Services Offered: Appearance design and technical capacity improvement.
  • Buyer Labels Offered: Available within reasonable parameters.
  • Materials: High-quality electronic components and durable materials.
  • Monthly Capacity: 40,000 pieces production capability.
  • Minimum Order: 100 pieces.
  • Export Markets: America, Europe, Australia, Middle-east, South East Asia.
Frequently Asked Questions
What verification methods does this device support?
The system supports two primary verification methods: Fingerprint recognition and ID Card access.
How many users and records can the system handle?
It can store 2,000 fingerprint templates, 10,000 ID card users, and a massive log of up to 50,000 individual events.
Does it support network connectivity?
Yes, it features TCP/IP and RS485 communication modes, and is also equipped with a USB port for manual data transfer.
What is the "Anti-passback" feature?
The Wiegand input/output allows for anti-passback logic, ensuring that a user must exit before they can enter again, preventing card sharing.
What is the typical lead time for an order?
Standard orders are typically delivered within 3-5 business days once the remittance is confirmed.
Is the device compatible with modern operating systems?
The software system is designed for compatibility with WIN2000 and subsequent Windows environments for easy data management.
