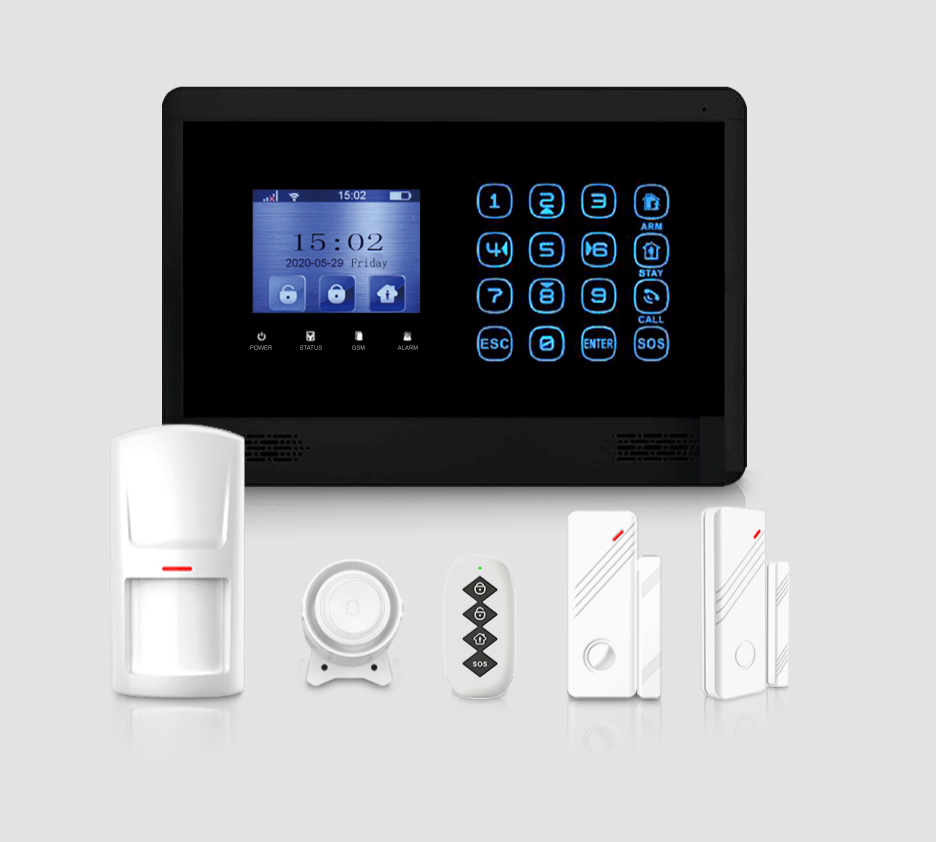

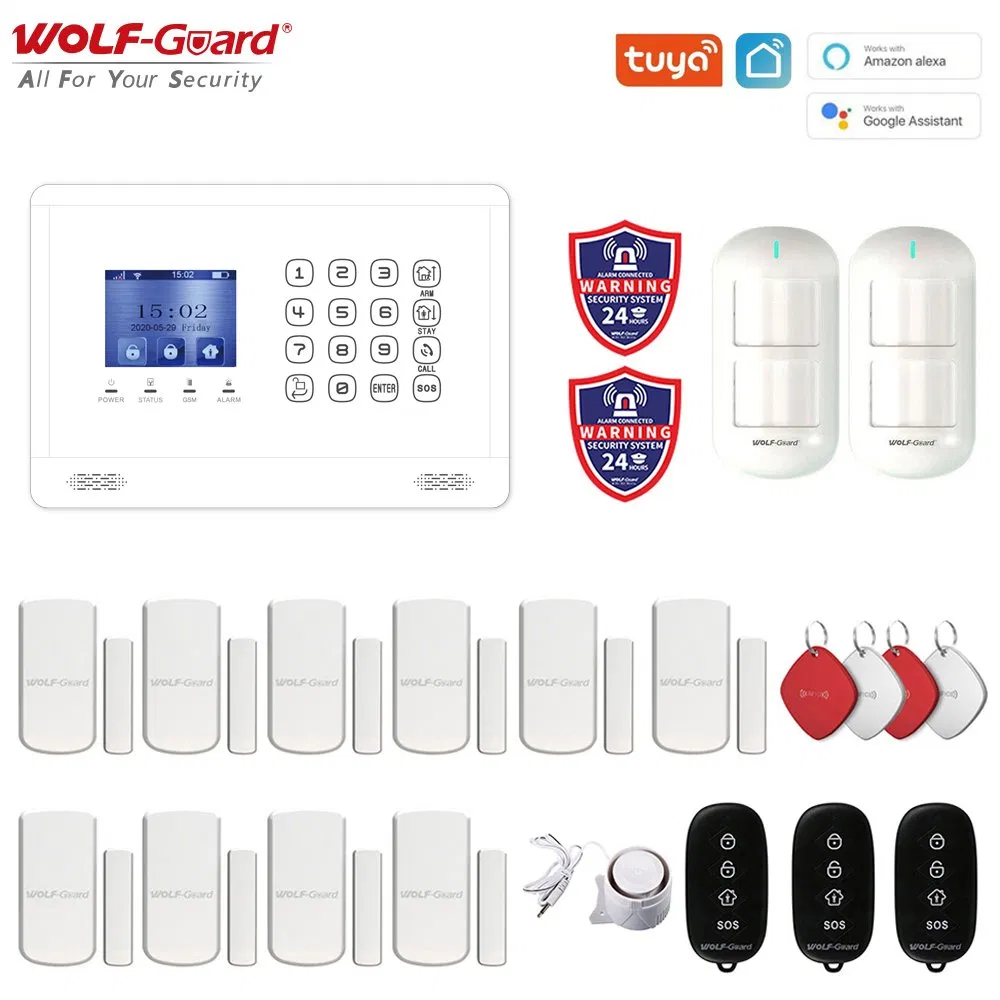

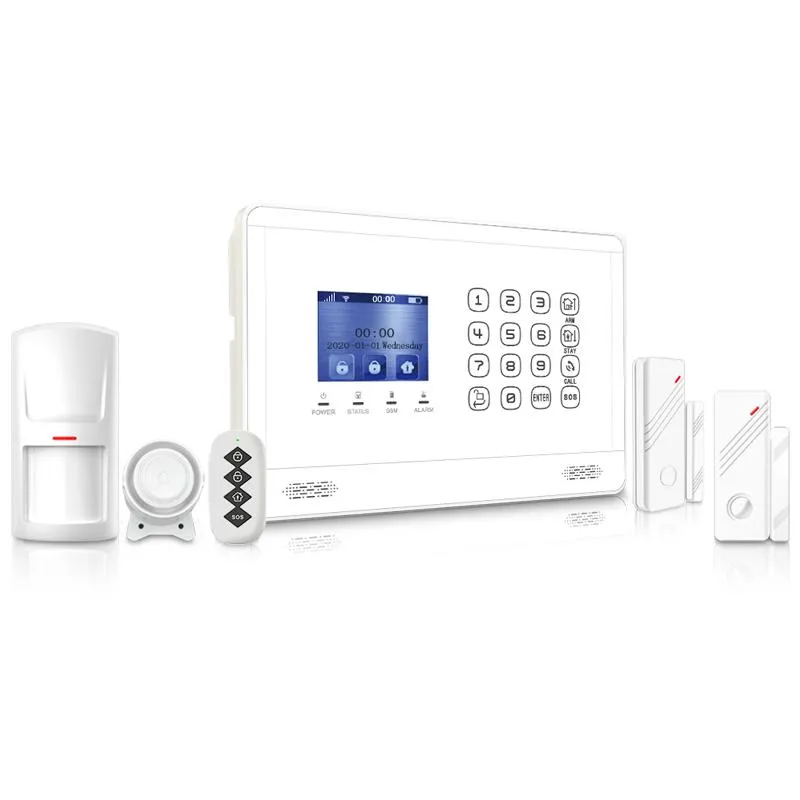

Smart House Security Burglar Alarm System Kit
Support Tuya / GSM / Alexa / Google Home
Reliable WiFi + 4G dual network connection for comprehensive home protection.
Basic Information
Certification
DOT, CE, ISO, FCC, RoHS, MUTCD, ASTM, CCC
Application
Indoor, Outdoor
Alarm Volume
≥80dB / 120dB
Frequency
433.92MHz / 315MHz
Power Supply
AC 110~240V, DC 12V/1.2A
GSM Band
850/900/1800/1900MHz
App Support
Smartlife / Tuya (iOS & Android)
Sensors
Smoke/Gas/Motion/SOS/Siren
Key Product Features
- Dual Network: WiFi+GSM/4G connection for double guarantee.

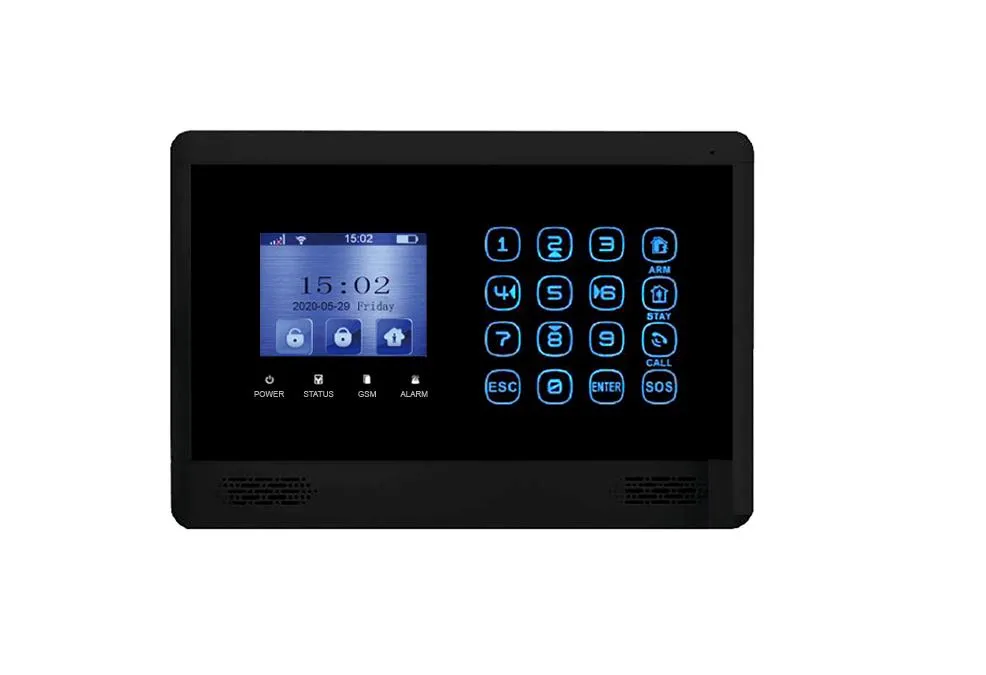

- LCD Display: 2.4 inch TFT LCD display for easy operation.
- Capacity: Supports up to 100 wireless defense zones and 10 remote controllers.
- Alert System: 6 groups of alarm phone numbers and 6 groups of alarm SMS numbers.
- Smart Integration: Compatible with Alexa, Google Home, and Tuya ecosystem.
- Backup Power: Built-in backup battery to prevent sudden power outage.
- Activity Logs: Classified management of operation logs and alarm records.
- Smart Doorbell: Integrated smart doorbell functions and APP notifications.
Product Visuals
Technical Specifications
| Input Voltage | DC12V/1A |
| Standby Current | <55mA |
| Alarming Current | <450mA |
| Wireless Frequency | 315MHz / 433MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Back-up Battery | NI-HI AAA*6 DC7.2V |
| Siren Volume | 120dB |
| Warranty | 2 years |

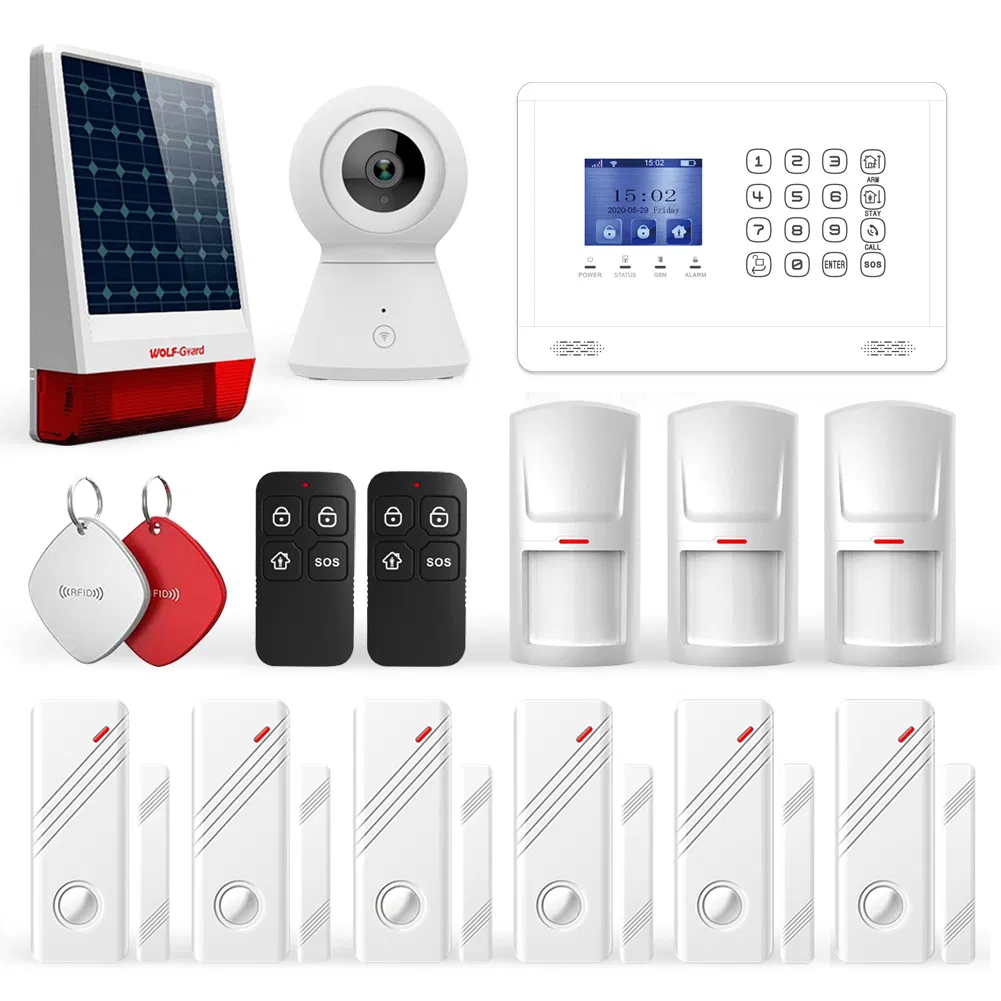

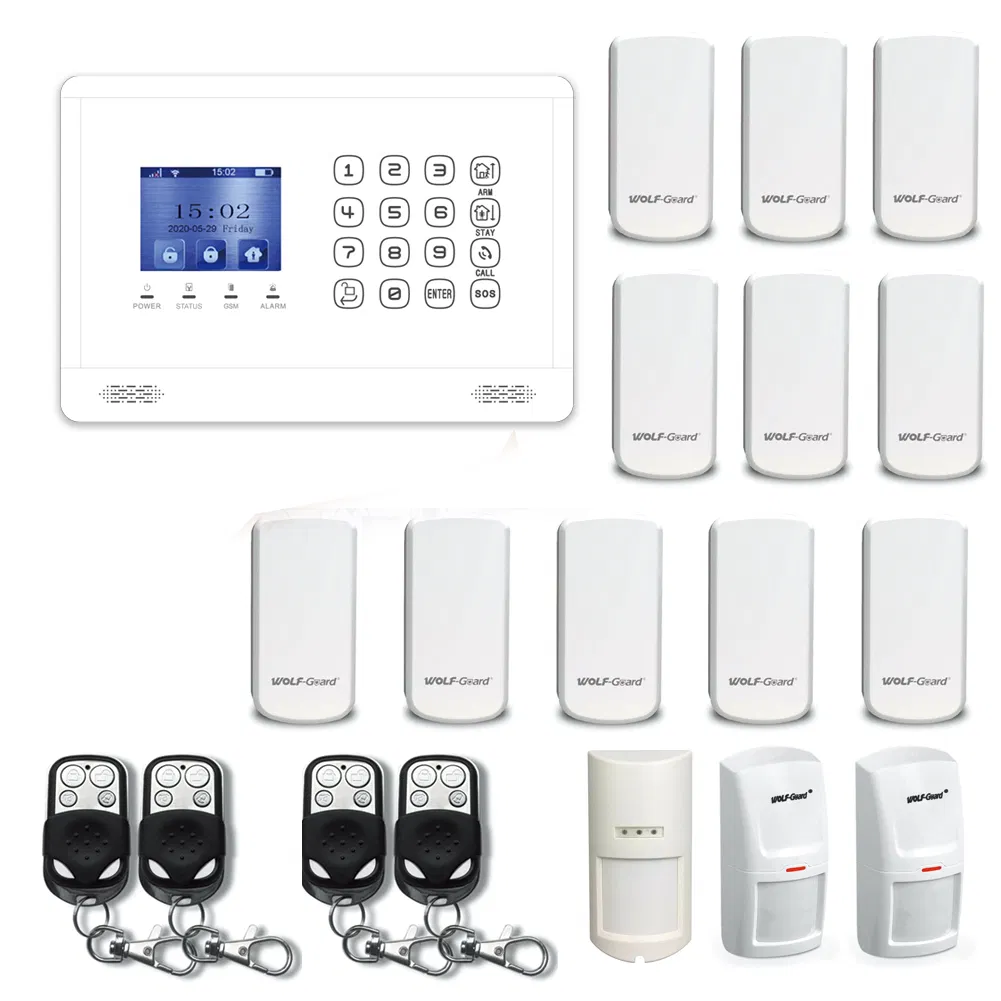

System Kit Components
The standard package includes:
Main panel: 1pc
Wireless PIR detector: 1pc
Wireless door sensor: 2pcs
Siren: 1pc
Remote controllers: 1pc
Power supply: 1pc
Manual: 1pc
Applications & Occasions
This versatile security system is suitable for: Houses, convenience stores, cars, hospitals, schools, libraries, banks, financial offices, communities, factory floors, warehouses, and parking lots.
Packaging & Delivery
Package Size
15.00cm * 20.00cm * 15.00cm
Frequently Asked Questions (FAQ)

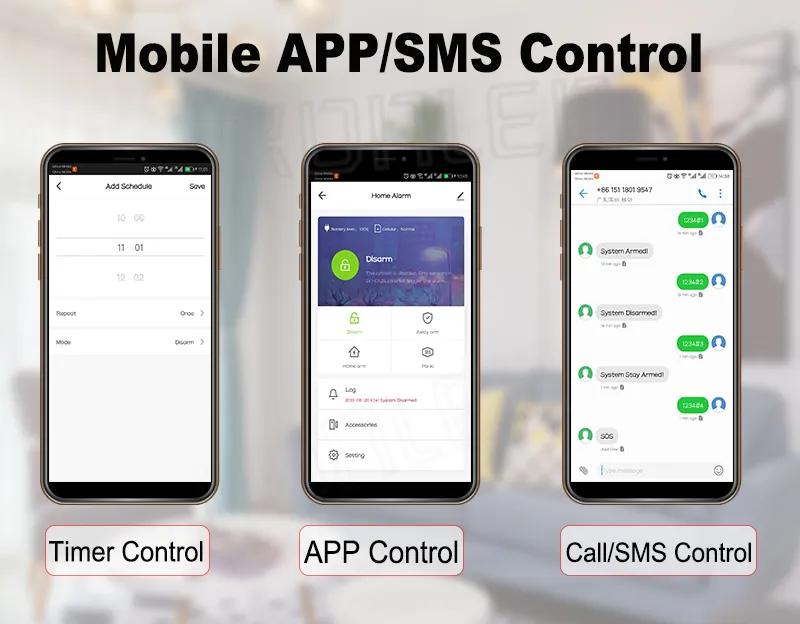

Does this system support mobile app control?
Yes, it fully supports the Tuya Smart and Smartlife apps, allowing for remote management on both iOS and Android devices.
What happens if the power goes out?
The system features a built-in NI-HI AAA*6 DC7.2V backup battery to ensure the alarm remains functional during sudden power outages.
How many wireless sensors can I connect?
The system supports up to 100 wireless defense zones, allowing you to add various sensors like smoke, gas, motion, and water leakage detectors.
Is it compatible with voice assistants?
Yes, the system is compatible with Amazon Alexa and Google Home for convenient voice-controlled security management.
What types of networks does it use for alerts?
It utilizes a dual-network system (WiFi + GSM/4G) for double guarantee, sending both APP notifications and SMS/phone call alerts.
Can I manage multiple user accounts?
Yes, the system supports classified management with a total of 16 accounts (1 administrator and 15 visitors) directly on the alarm host.
