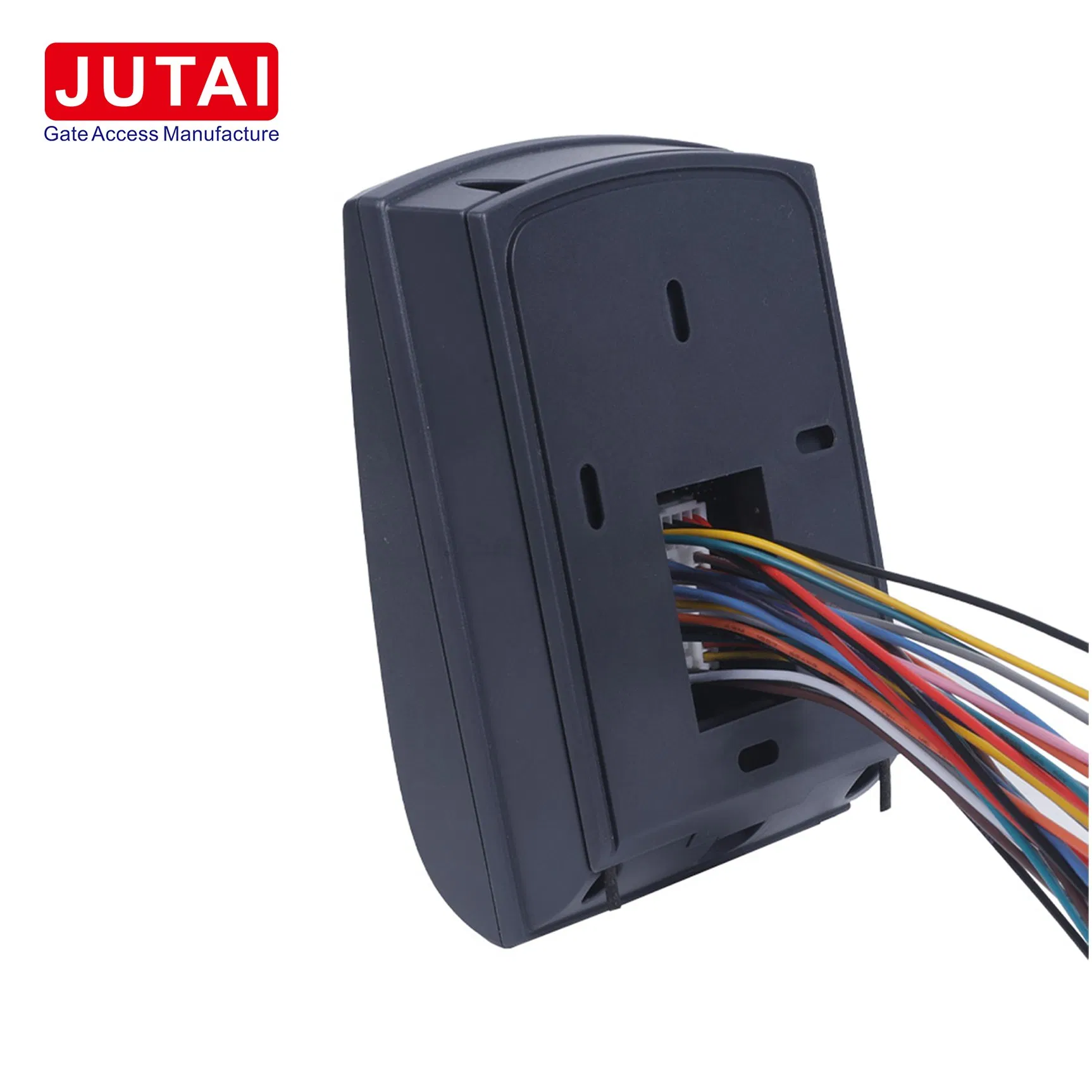

📝 Product Introduction

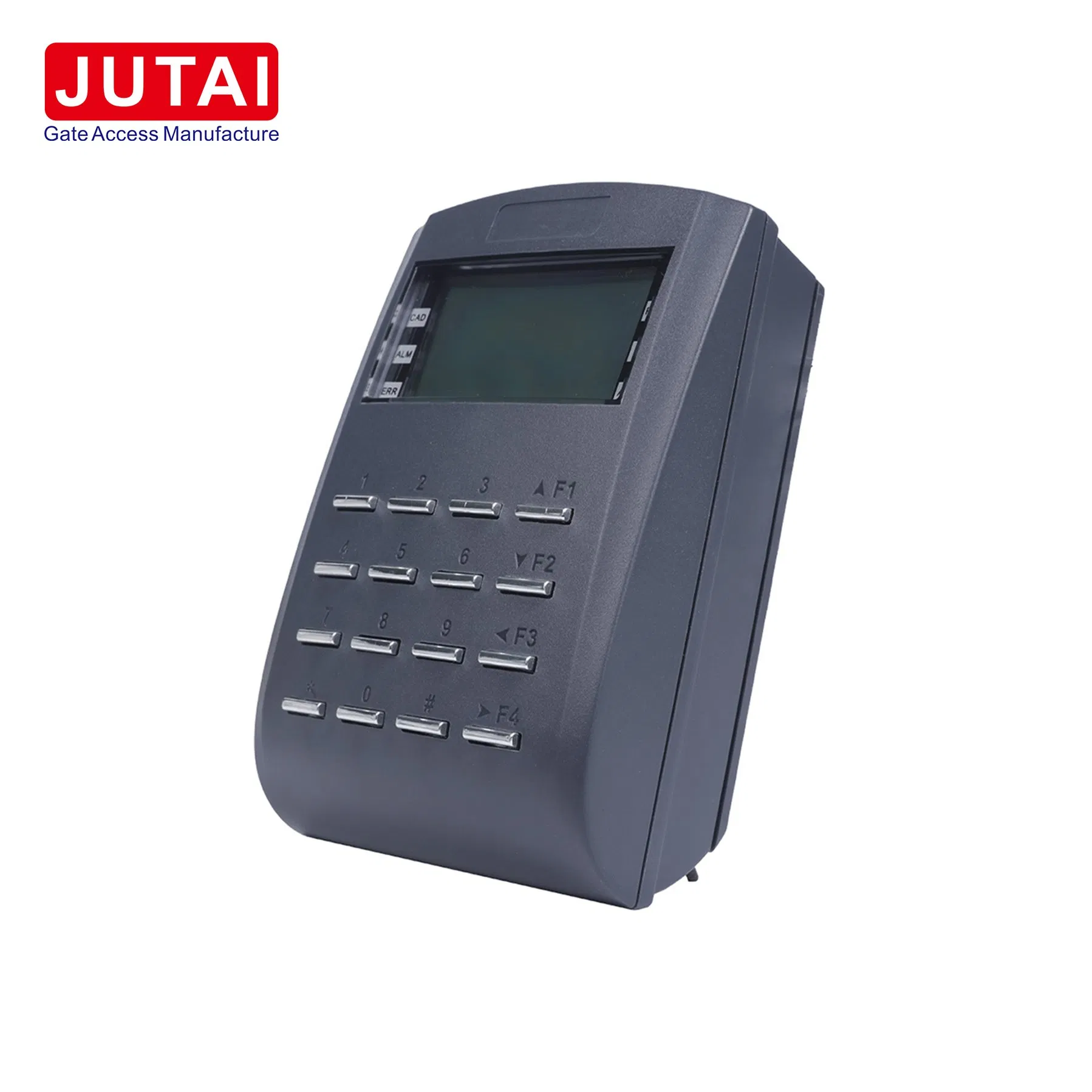

The AC-868 is a standalone reader designed for independent use. It features a built-in LCD screen for displaying card numbers and can be customized with logos. With an integrated password keyboard, it supports card swiping and PIN codes for access. Operating at 13.56MHz, it supports EM and MIFARE cards, offering reliable data storage and automatic control for offices, malls, and scenic spots.
⌨️ Programming & Operations
Initial Password: *123456# (* = Return, # = Confirm)
1. Card Entry Methods
| Mode | Operation Sequence |
|---|
| ID Code Entry | * [Pass] # 1 1 [User Addr] # [First 5 digits] # [Last 5 digits] # |
| Continuous Induction | * [Pass] # 1 2 [Start Addr] # [Sheet Count] # 1 # [Swipe Card] # |
| Discontinuous Induction | * [Pass] # 1 2 [Start Addr] # [Sheet Count] # 0 # [Swipe Cards...] # |
2. Card Management
| Action | Operation Sequence |
|---|
| Pause by Address | * [Pass] # 1 3 [Start Addr] # [End Addr] # |
| Remove by Address | * [Pass] # 1 5 [Start Addr] # [End Addr] # |
| Factory Reset | * [Pass] # 4 9 [0:System / 1:User / 2:All] |
❓ Frequently Asked Questions (FAQ)
What is the maximum card capacity of the AC-868?
The device can store up to 16,000 unique card numbers.
What types of cards are supported by this reader?
It supports both EM cards and MIFARE cards, with an encryption frequency of 13.56MHz.
Is the device suitable for outdoor use?
Yes, it has an IP65 degree of protection, making it resistant to dust and water.
What is the typical reading distance?
The reading distance is approximately 3cm to 5cm.
Can I program the reader without a computer?
Yes, the AC-868 is a standalone device. Adding, deleting, or managing cards can be done easily via the built-in keypad.
What power supply is required for operation?
The device operates on a DC 9-20V power supply (0.3A at 12V).
