Basic Specifications
Application
Window Door Fabrication
Cutting Angle
Arbitrary Angle
Cutting Material
Aluminum Profile
Production Capacity
30 Sets Per Month
Product Description

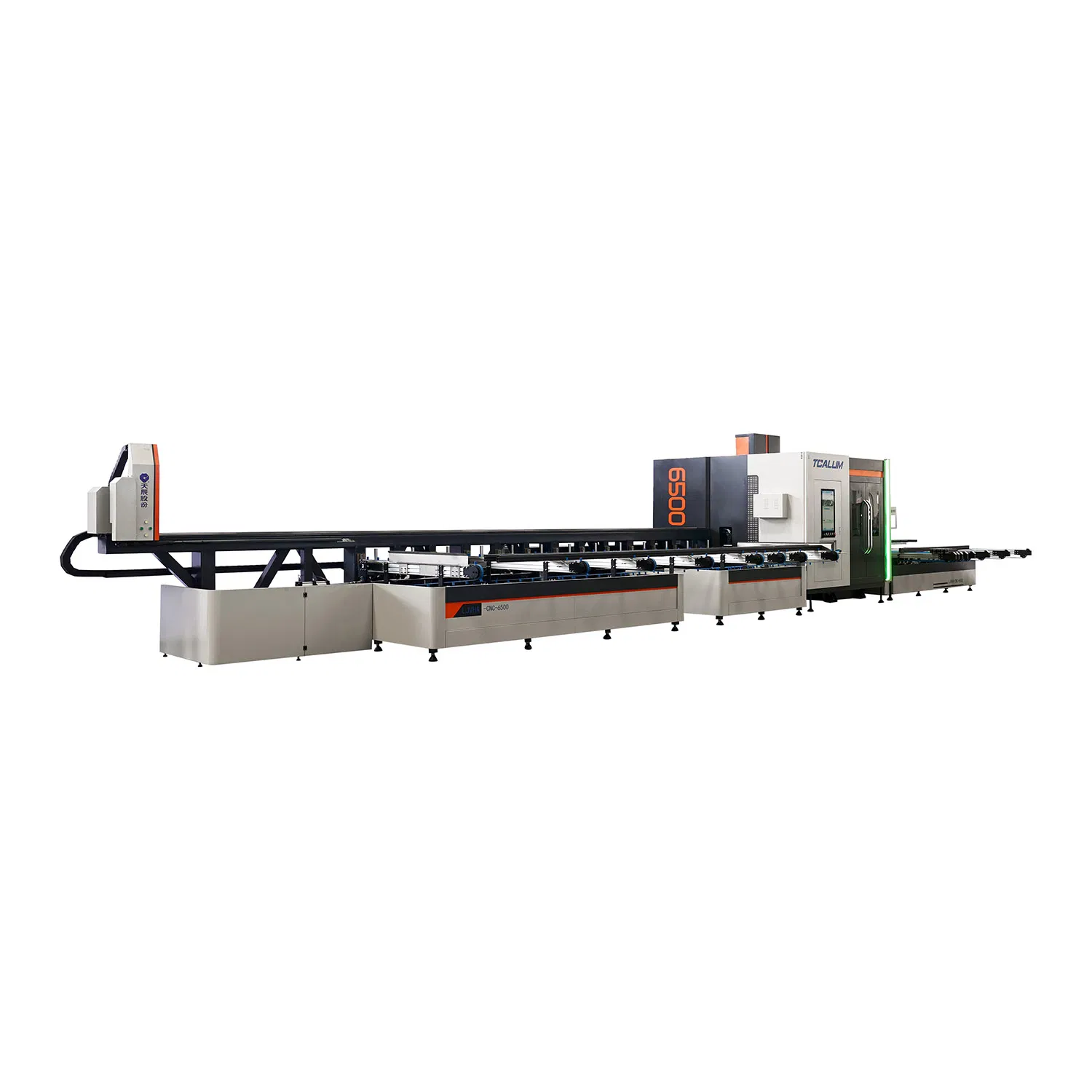

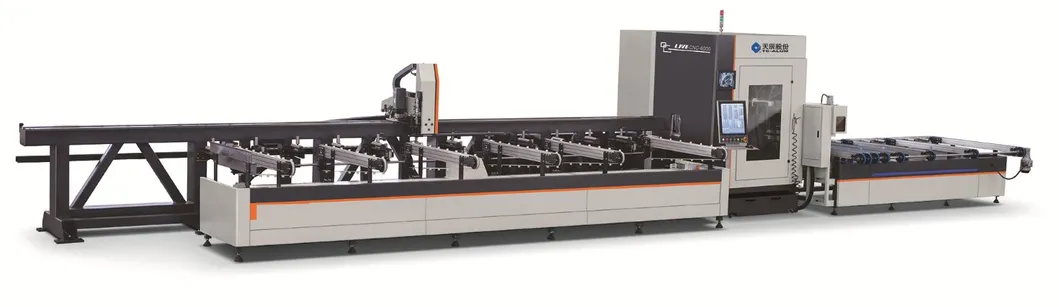

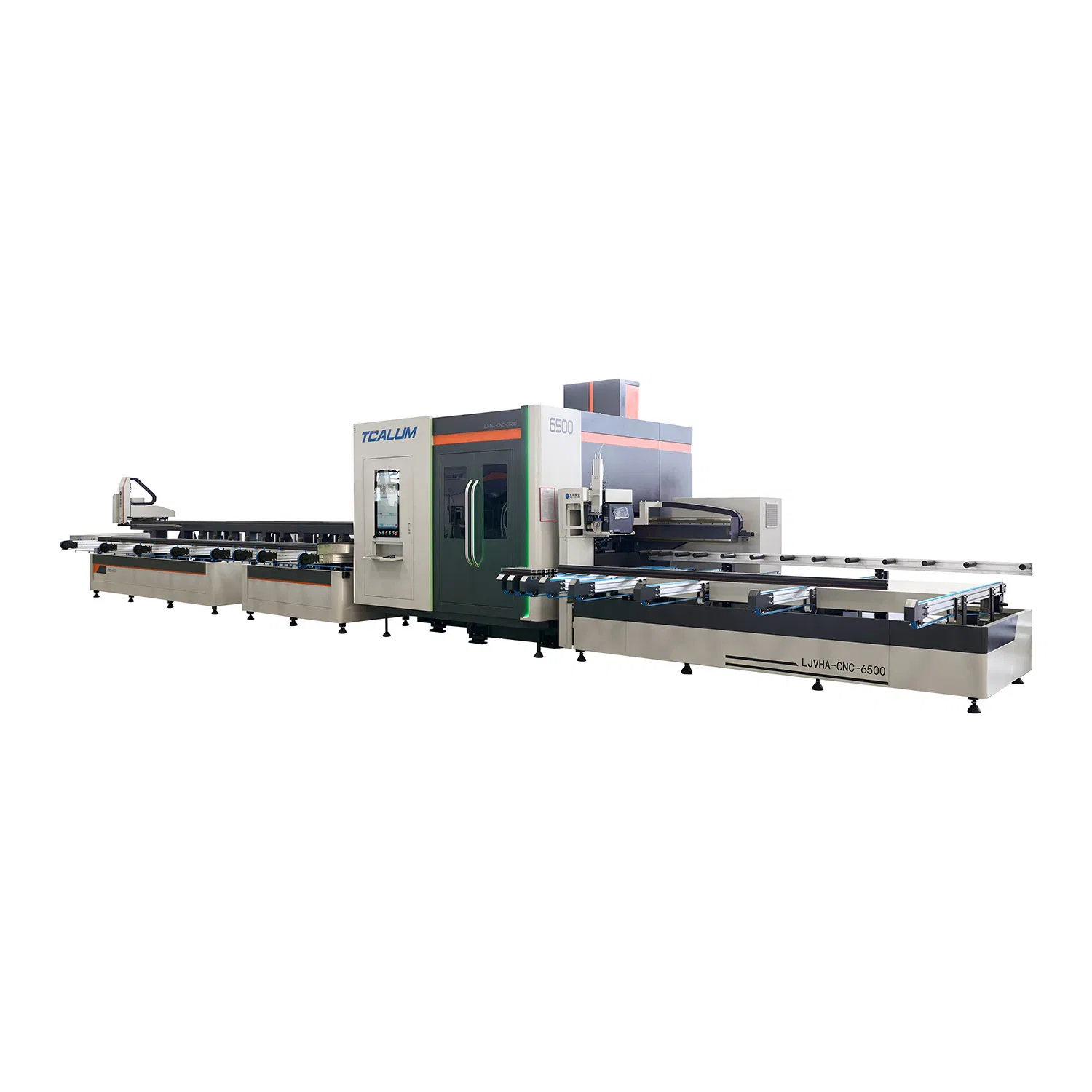

Intelligent Windows and Doors Laser Cutting Milling Drilling Processing Machinery Fiber Laser Cutting Aluminum CNC Machine
Key Machine Features
✔Efficient continuous 45°, 90° or arbitrary angle sawing processing of aluminum profiles (range 45° to -45°).

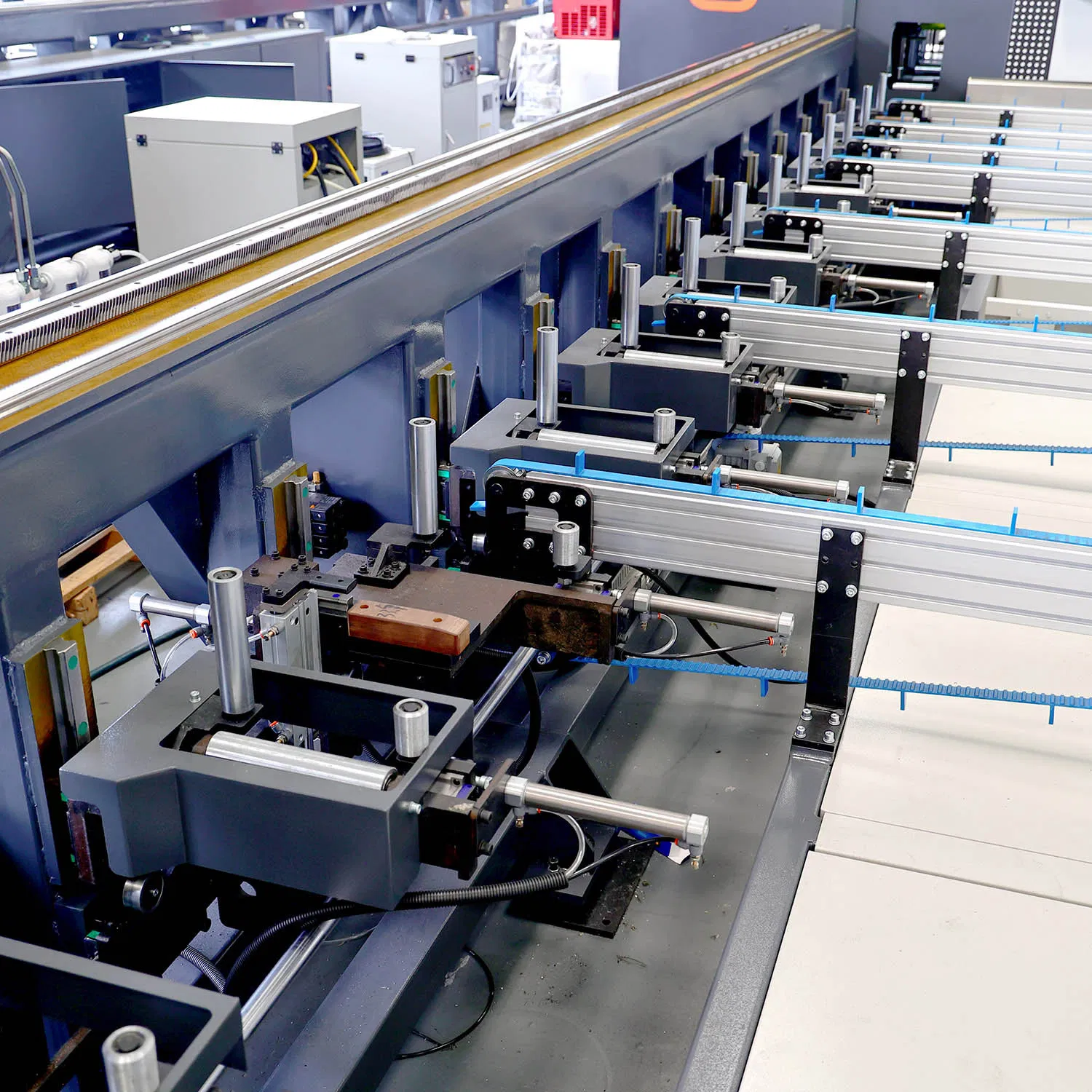

✔Automatic feeding table for continuous clamping and profile cutting processing.

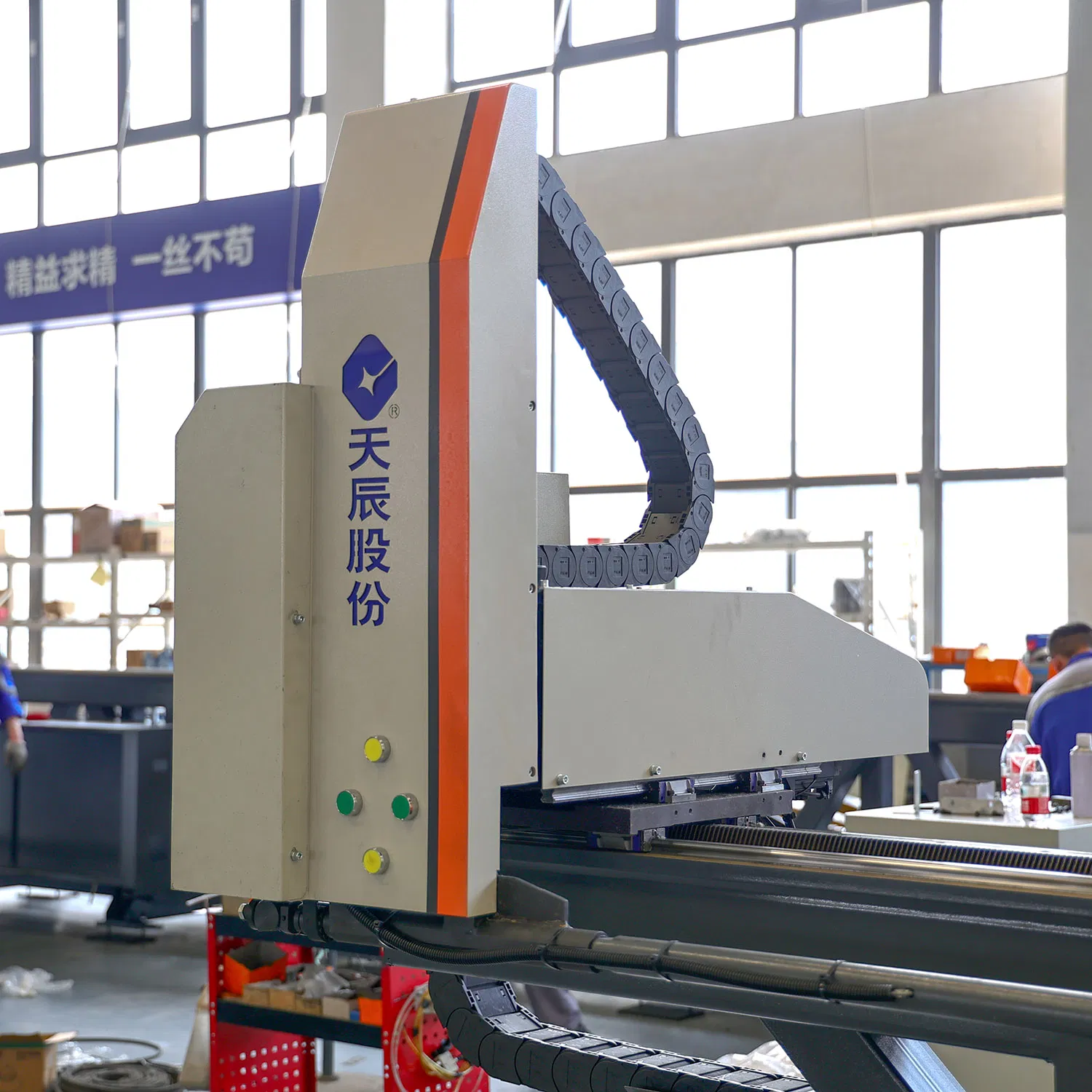

✔Servo-driven manipulator for X, Y, and Z three-axis automatic control with high-precision rack and pinion drive.

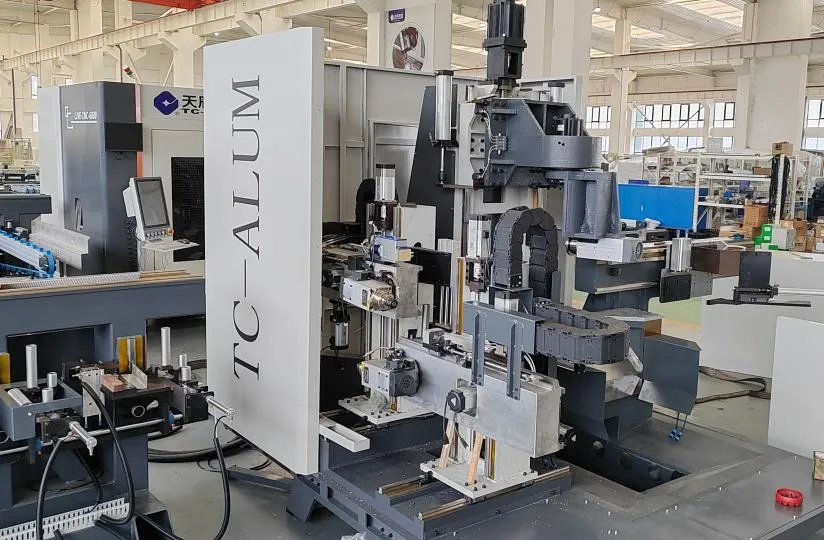

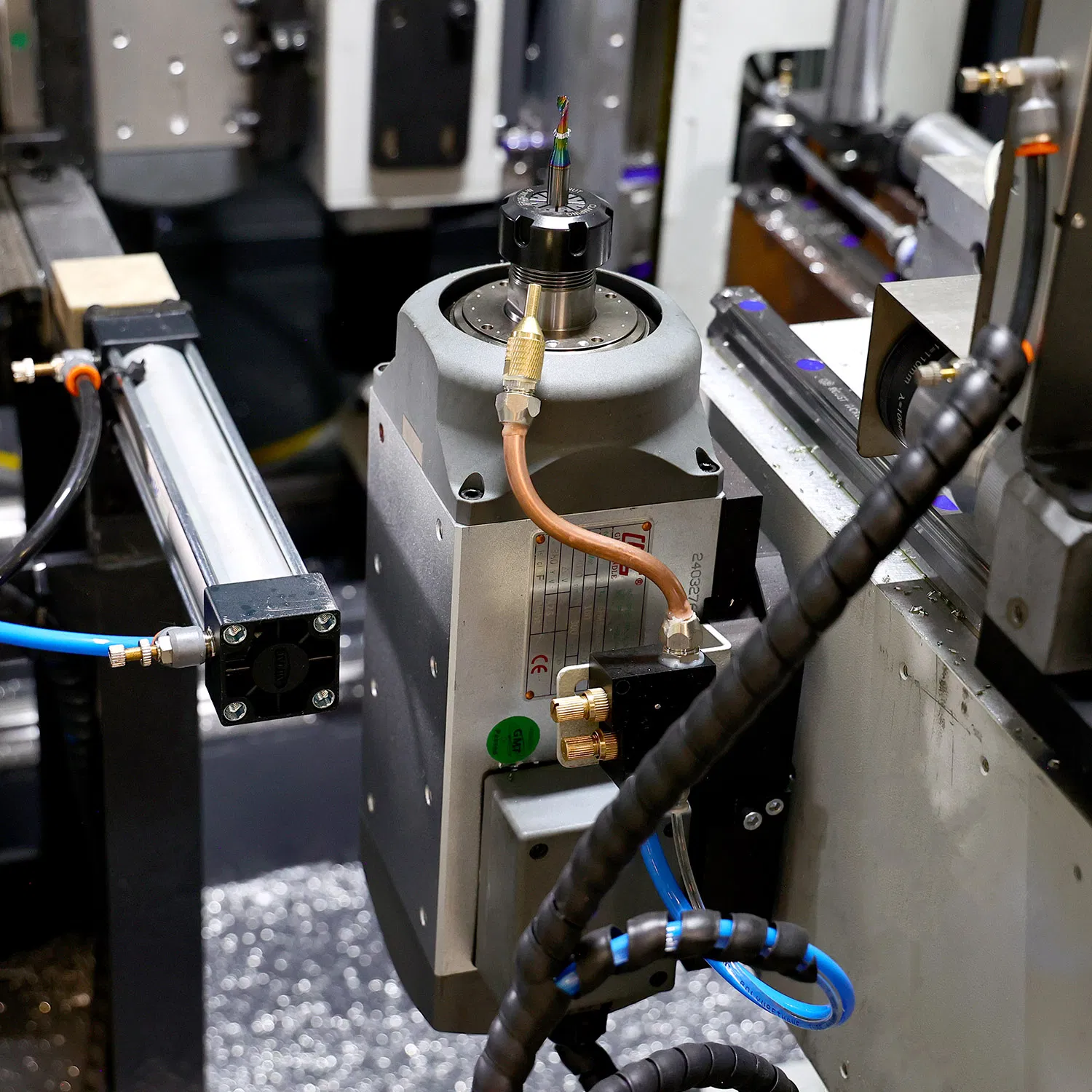

✔Configuration of four high-speed motorized spindles for 5-sided profile processing.
✔Laser cutting motion using 4-axis servo control for high-precision corner clearing and hole processing.
✔High-resolution camera and LCD screen for real-time monitoring of sawing operations.
✔Fully enclosed shell to ensure operator safety with integrated chain chip conveyor for waste removal.
Technical Parameters
| Item |
Specification |
| Sawing motor power | 3.0 Kw |
| Machine power | 48 Kw |
| Motorized spindle power | 3Kw × 4 |
| Laser power | 1.5kw |
| Saw blade specification | Φ550 × 30 × 4.4 × 144T |
| Cut profile height/width | 30 ~ 150 mm |
| Cutting length | 240 ~ 6500 mm |
| Sawing length accuracy | ±0.15mm |
| Working pressure | 0.5 ~ 0.8MPa |
| Dimension | 15000 × 5000 × 2500 mm |
Detailed Gallery
FAQ
Q1: What materials can the LJVHA-CNC-6500 process?
It is specifically designed for the continuous sawing and milling of aluminum profiles used in window and door fabrication.
Q2: What is the maximum cutting length for profiles?
The machine supports a wide range of cutting lengths from 240mm up to 6500mm with high precision.
Q3: How accurate is the sawing process?
The machine achieves a sawing length accuracy of ±0.15mm and an angle error of only ±5 minutes.
Q4: Does the machine support automatic waste management?
Yes, it is equipped with a chain chip conveyor that automatically transports waste and aluminum chips to a collection bin.
Q5: Can it handle complex five-sided processing?
Yes, with four high-speed motorized spindles and multi-axis CNC control, it can achieve efficient five-sided profile processing.
Q6: Is it safe for the operator?
The equipment features a fully enclosed shell and high-resolution cameras with LCD screens to monitor the operation safely.
