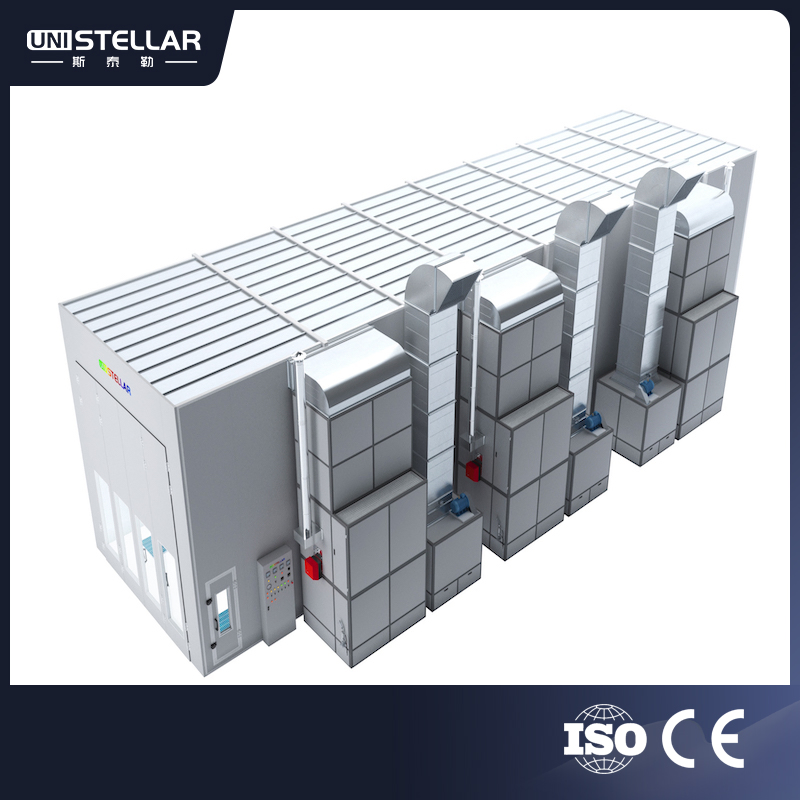

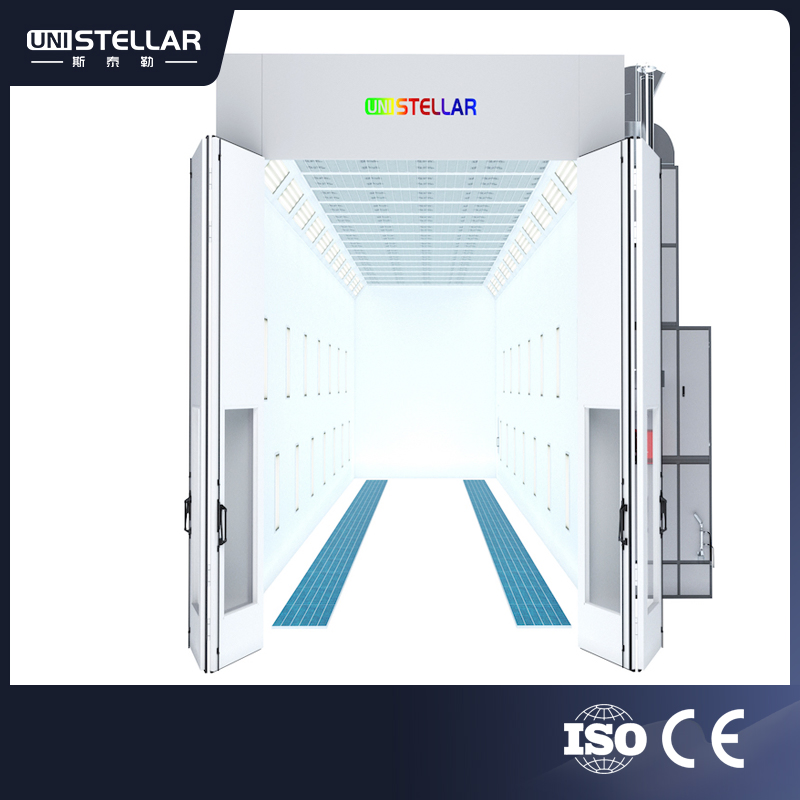

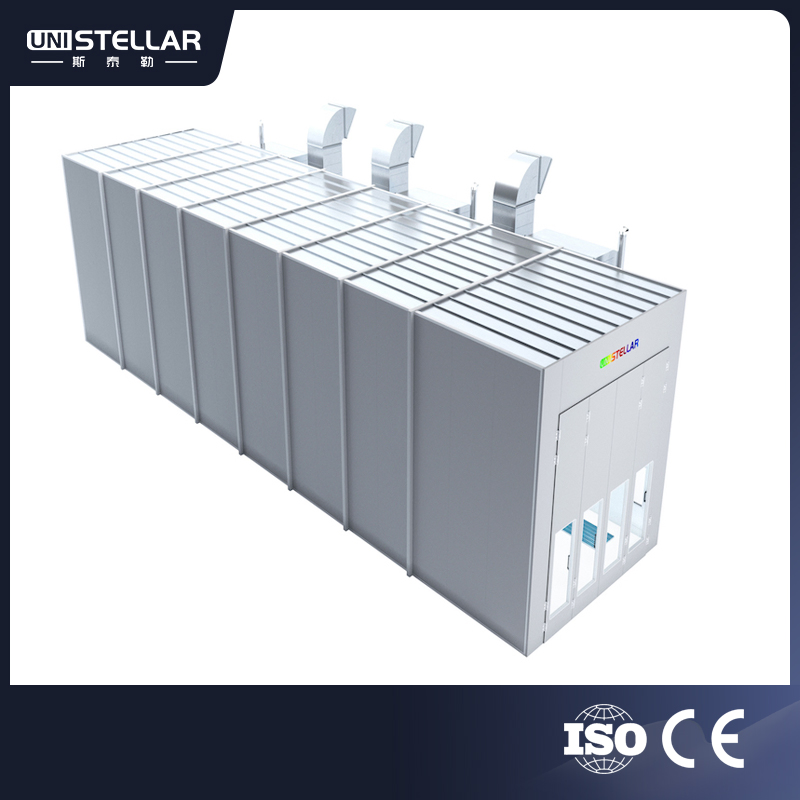

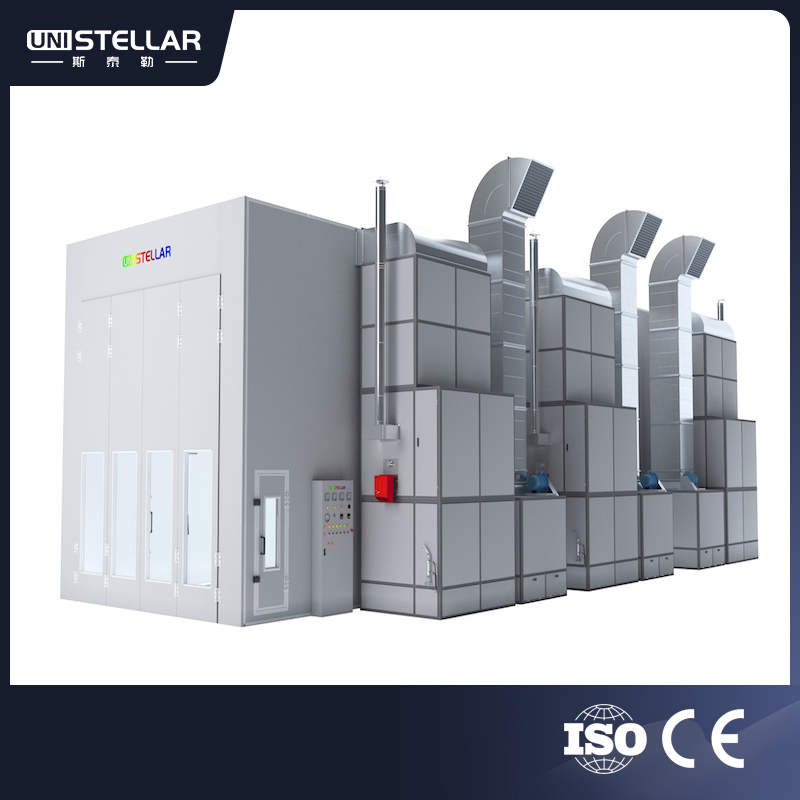

Uni Stellar CE Advanced Heating Systems Energy-Efficient Large Paint Spray Booth and Baking Room
Uni Stellar CE Advanced Heating Systems Energy-Efficient Large Paint Spray Booth and Baking Room
Uni Stellar CE Advanced Heating Systems Energy-Efficient Large Paint Spray Booth and Baking Room
Uni Stellar CE Advanced Heating Systems Energy-Efficient Large Paint Spray Booth and Baking Room
Uni Stellar CE Advanced Heating Systems Energy-Efficient Large Paint Spray Booth and Baking Room
1 / 5
Uni Stellar CE Advanced Heating Systems Energy-Efficient Large Paint Spray Booth and Baking Room
Uni Stellar CE Advanced Heating Systems Energy-Efficient Large Paint Spray Booth and Baking Room
Uni Stellar CE Advanced Heating Systems Energy-Efficient Large Paint Spray Booth and Baking Room
Uni Stellar CE Advanced Heating Systems Energy-Efficient Large Paint Spray Booth and Baking Room
Uni Stellar CE Advanced Heating Systems Energy-Efficient Large Paint Spray Booth and Baking Room

Uni Stellar CE Advanced Heating Systems Energy-Efficient Large Paint Spray Booth and Baking Room

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
STL-20-50
Movement Way
Fixed
Flow
Downdraft
Heating Mode
Fuel and Electric
Drying Medium
Air
Product Name
Large Paint Spray Booth
External Size
20135*6900*5600 mm
Internal Size
20000*5000*5000 mm
Air Supply
2*7.5kw Motors
Voltage
380V or Customize
Product Description

This advanced fuel heating spray paint booth delivers stable working performance with a high-efficiency ventilation system. It is engineered for industrial applications including car painting, aircraft maintenance, and specialized coating projects.

  • Optimized Airflow: 2*7.5 KW fans provide 40,000m³/h supply volume, paired with a 15Kw exhaust fan for micro-positive pressure.
  • Precision Control: Professional ventilation system directs painting mist to guarantee optimized spray effects.
  • Safety Protocols: Pressure-sensitive system automatically powers off if safety values are exceeded.
  • Durable Components: Motor overload protection extends equipment lifetime and reduces maintenance costs.
Spray Booth Overview
Detailed View 1

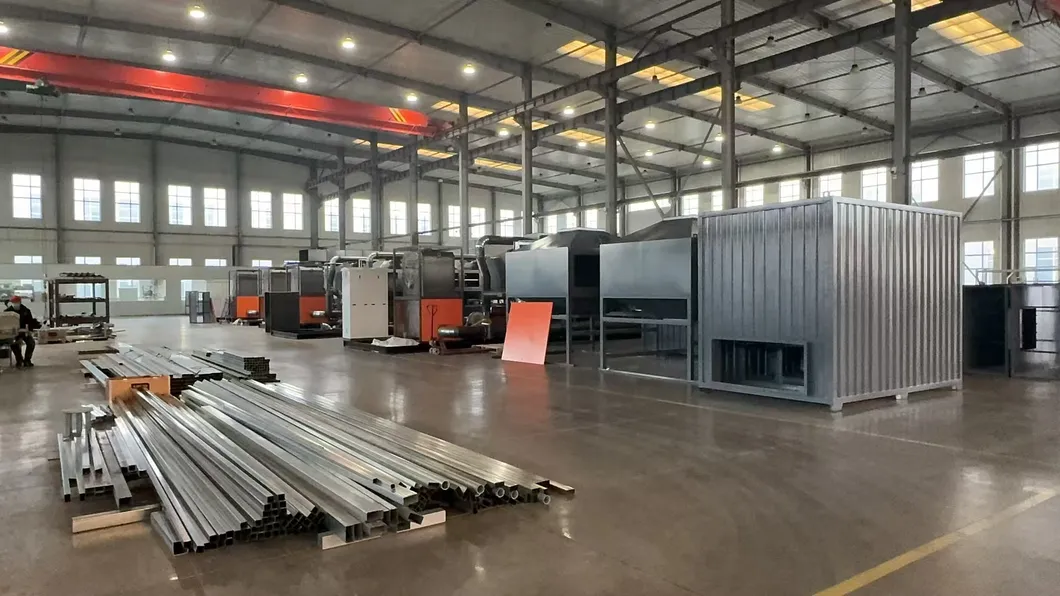

Detailed View 2
Technical Specifications
System ComponentTechnical Details
StructureWall Panel75mm Rock Wool, 0.476mm Steel Plate, 100kg/m³ density
Basement300mm Galvanized sheet, 2 rows grid with pattern plates
VentilationInlet Fan3 sets of 2*7.5KW centrifugal fans (40000m³/h)
Outlet Fan3 sets of 1*15KW centrifugal fans (40000m³/h)
HeatingBurnerItaly Riello RG5S, 260,000 Kcal/h
Heat Exchanger1.5mm Stainless Steel (SUS304), 232 Kw power
FiltrationExhaust FilterDual Layer: Glass fiber + Activated Carbon Filter

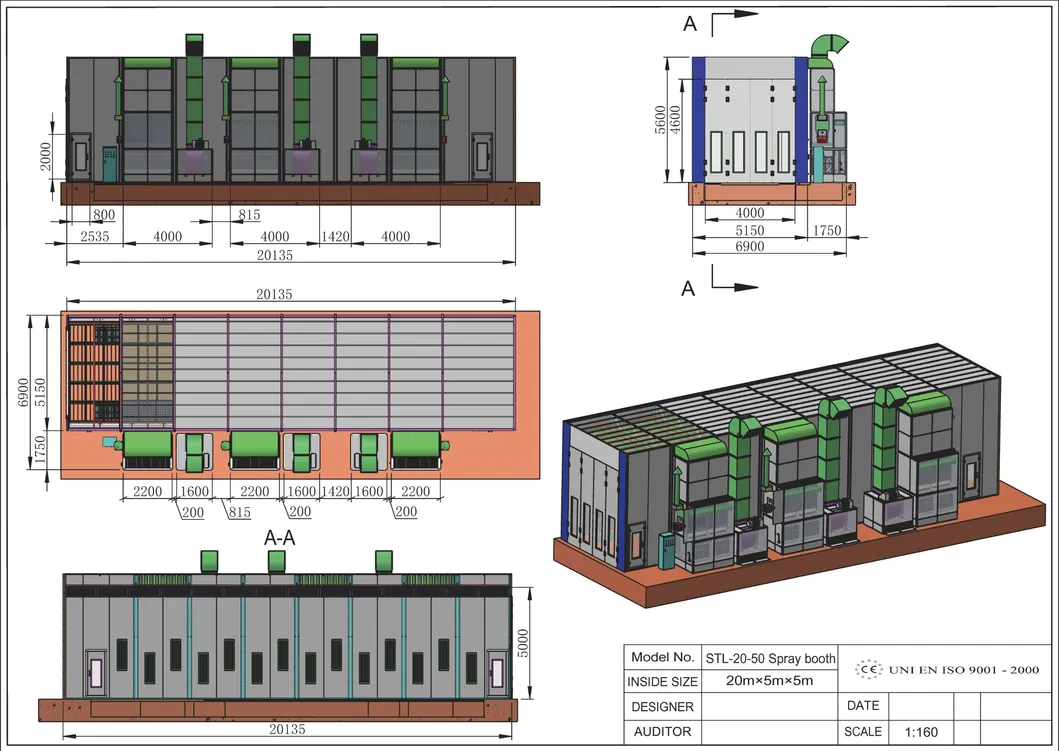

Installation View
Workshop Setting
About the Manufacturer

Specializing in European manufacturing techniques, we focus on high-quality products featuring low energy consumption and environmental friendliness. Our capabilities include independent R&D, manufacturing, and global service for automotive and industrial coating markets.

Factory Floor
Quality Control
Frequently Asked Questions
Why choose our spray booth equipment?
We have over 20 years of rich experience in the industry. Our massive factory area of 32,765 square meters and large warehouse guarantee reliable delivery times and rapid after-sales response.
Do you offer any custom designs?
Yes, we are a professional manufacturer with a highly experienced R&D team. Both OEM and ODM services are welcome to meet specific project requirements.
What is the standard lead time?
During the off-season, production takes approximately 15 working days. During peak seasons, it is about 20 working days upon receipt of deposit.
What kind of after-sales service is provided?
The entire equipment is guaranteed for 1 year. We provide vulnerable parts for free and offer 24-hour remote technical support.
Are the booths energy efficient?
Our systems are built using European techniques focusing specifically on low energy consumption and environmental friendliness through advanced VOC treatment and heat exchange technologies.
What certifications does the equipment hold?
Our equipment is certified with CE, ISO9001:2015, and ISO14001:2015 standards, ensuring international quality compliance.
