Basic Information
Special Function
Security
Certification
TUV, CCC, ISO9001, CE
Loading Weight
≤1X150kg/ ≤2X125kg
Power Supply
AC110-220V, 50/60Hz
Product Description

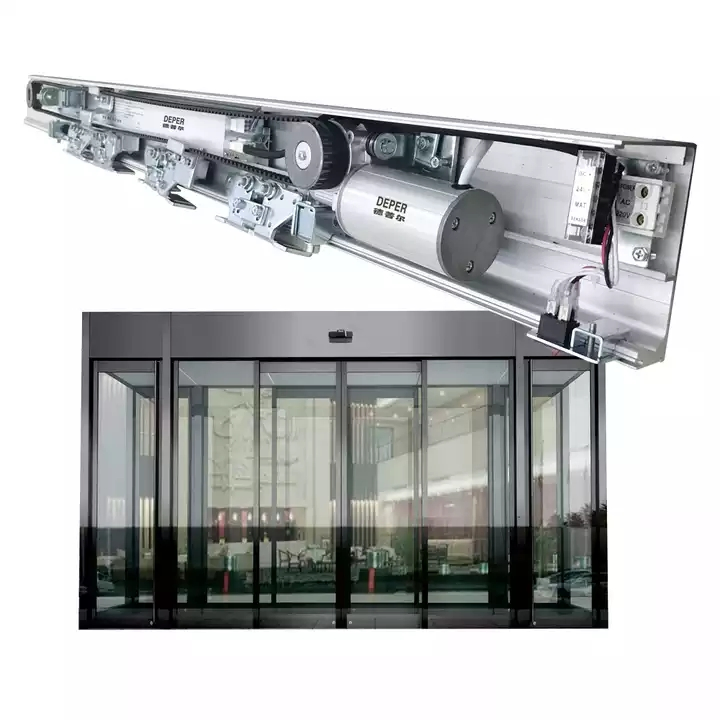

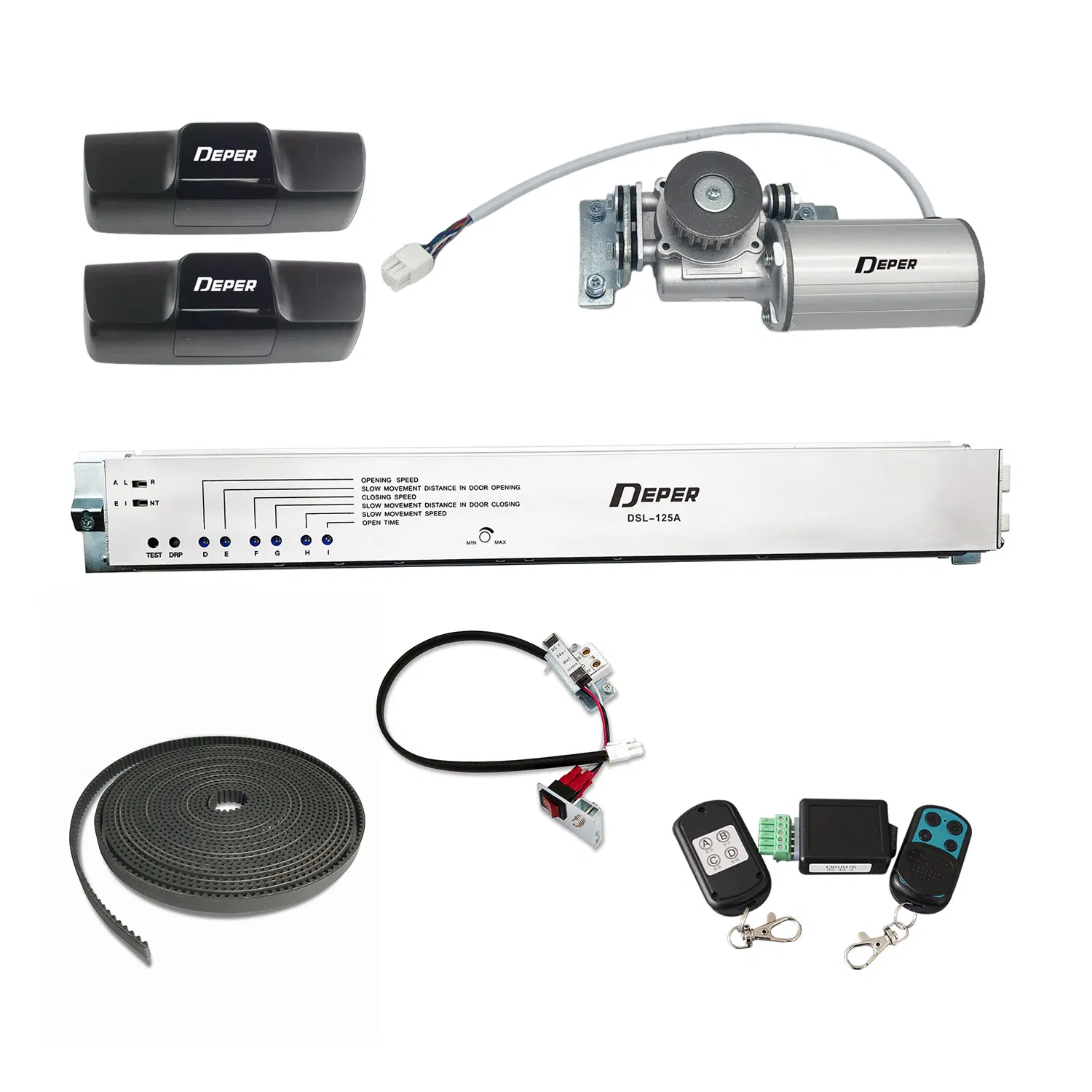

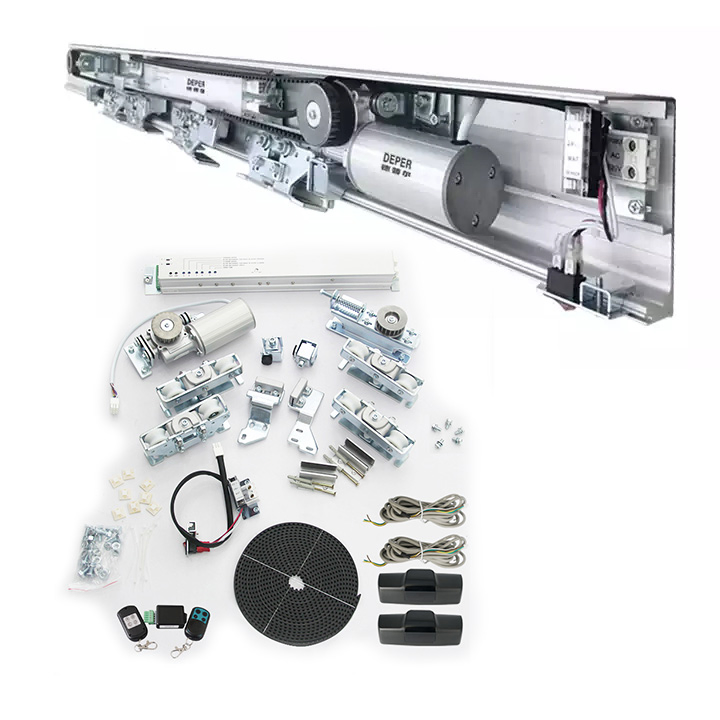

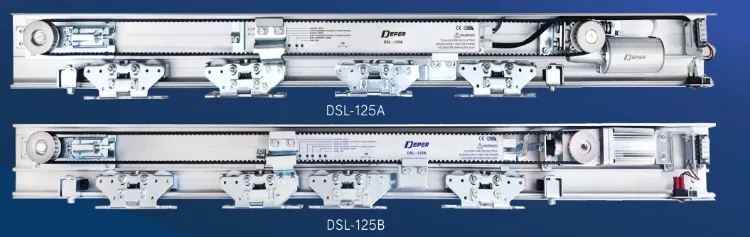

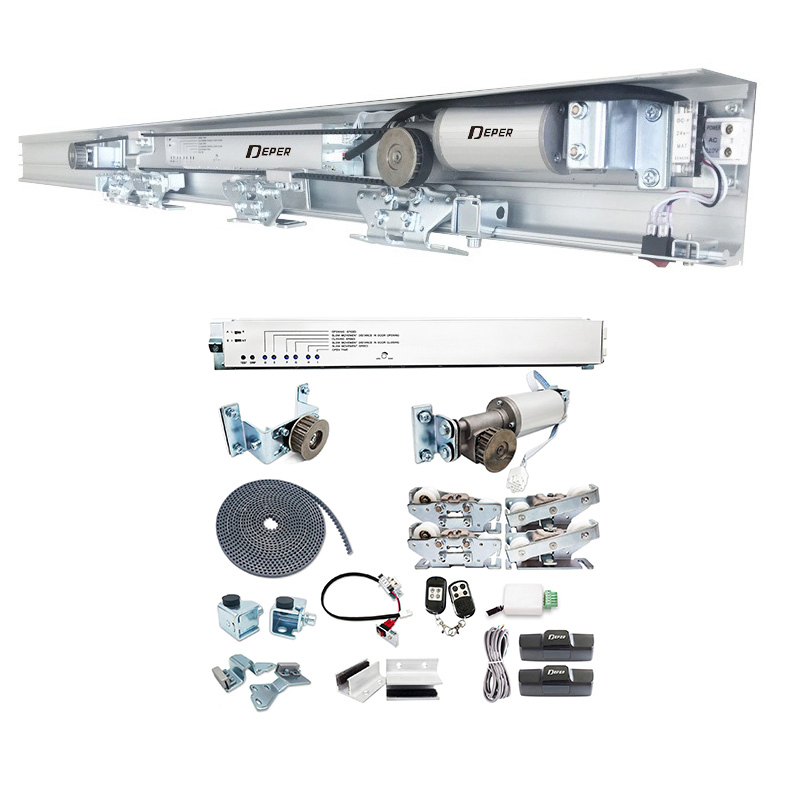

DSL-125A Interior Double Glass Door Automatic Sliding Door System
Product Advantages:
- Microcomputer control system with wide voltage power supply design and double door interlock interface.
- European motor and gearbox integration technology for strong drive and stable operation.
- Special deceleration mute wheel and professional roller structure to reduce running noise.
- Safety self-test procedure: door rebounds automatically when encountering resistance.

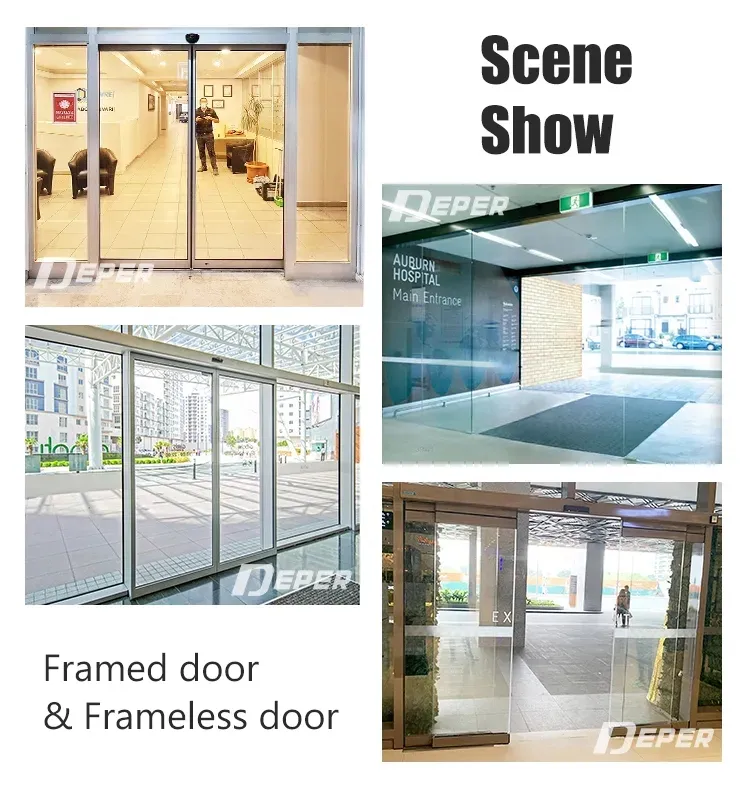

- Ideal for office buildings, storefronts, banks, restaurants, hotels, hospitals, and laboratories.
Technical Data
| Specifications |
| Product Name | DSL-125A Commercial Automatic Sliding Door Operator |
| Door Configuration | Single leaf, Double leaves |
| Limited Weight | ≤1×150kg, ≤2×125kg |
| Door Leaf Width | 750-1600mm / 650-1250mm |
| Power Consumption | <70W |
| Opening/Closing Speed | 200-450mm/S (adjustable) |
| Hold-open Time | 0-8S (adjustable) |
| Environment Temp | -20 ~ +50ºC |
| Standard Size | 4200mm |
Why Choose Our Products
- 21 years factory expertise ensuring reliable quality.
- Passed 1 million cycles of operation tests.
- CE and ISO9001:2015 certification approved.
- Intelligent design for easy installation and adjustment.
- Enhanced security with immediate obstacle detection.
Certifications & Capabilities
Obtained "GF" EU certification and "AVC" certification. Recognized as a "National High-tech Enterprise". Systems compliant with ISO9001:2015, ISO14001, and OHSAS18001 standards.
Packaging & Delivery
Frequently Asked Questions
How is the product quality guaranteed?
We have passed the ISO9001:2015 Quality Management System, and all products have passed the EU market quality and safety certification (CE).
What types of automatic door systems are available?
We offer a wide range including sliding, swing, medical airtight, revolving, telescopic, and panic door systems, along with related access accessories.
Do you provide installation support?
We provide a detailed installation manual with every purchase. For further assistance, we recommend contacting local professional installation services.

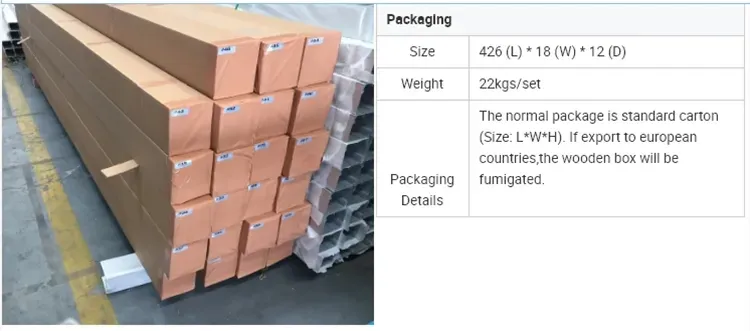

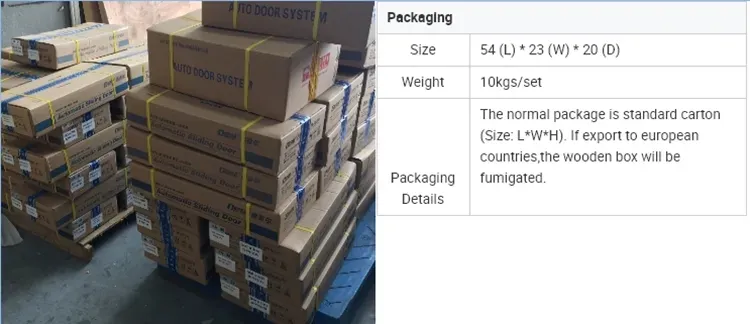

What are the options for packaging?
Our standard packaging includes foam, high-quality cartons, and plywood cases to ensure safety during transit. ODM & OEM packaging is also accepted.
Can I request a sample for quality testing?
Yes, samples are available for quality testing. Typically, clients are responsible for the sample fee and express shipping costs.
What is the typical lead time for orders?
Sample delivery usually takes 3-5 days, while bulk orders are typically fulfilled within 5-20 days depending on the volume.
