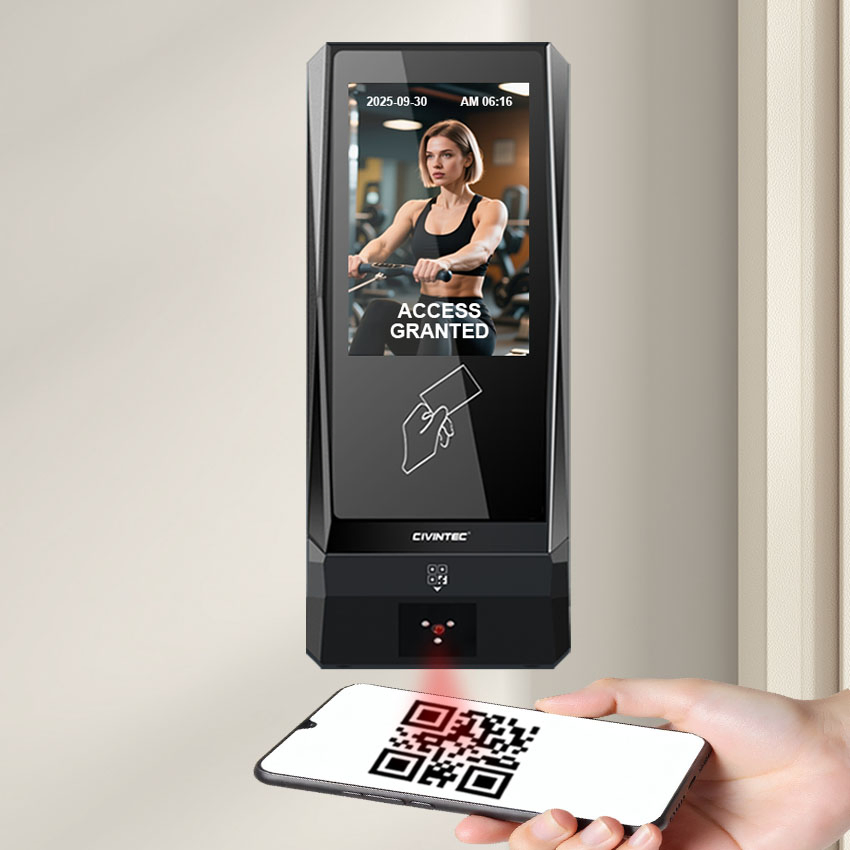

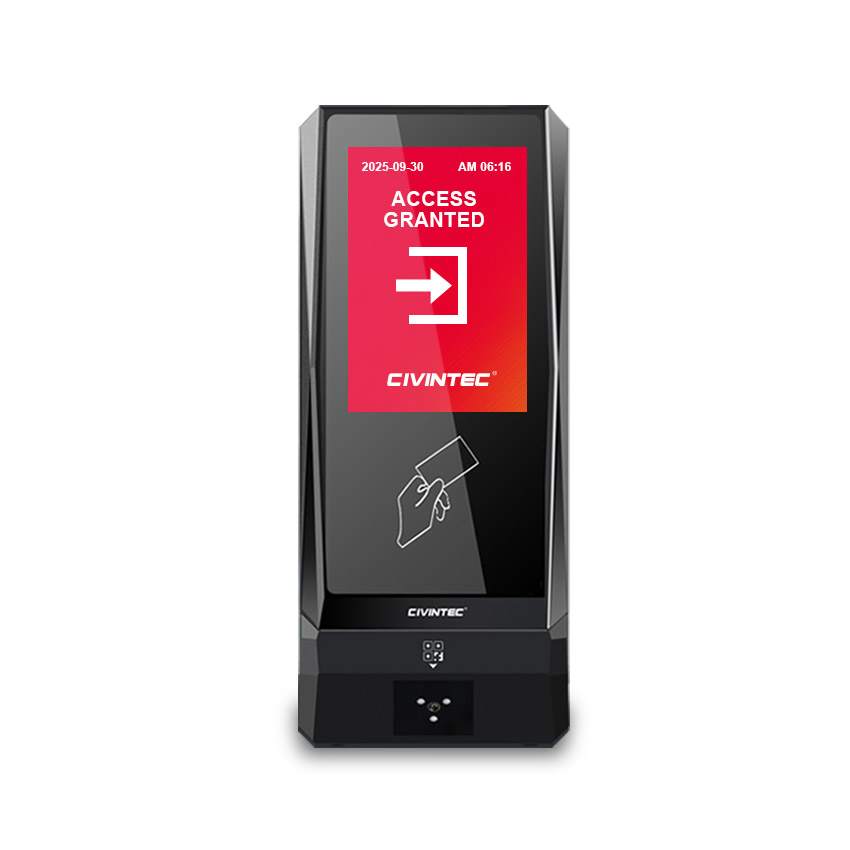

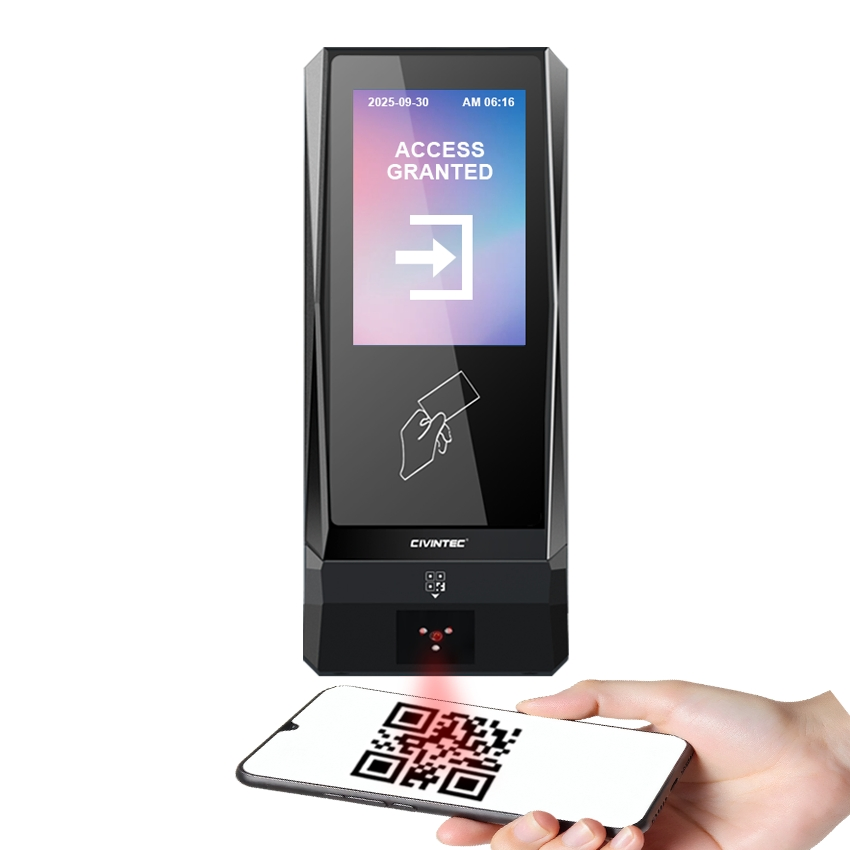

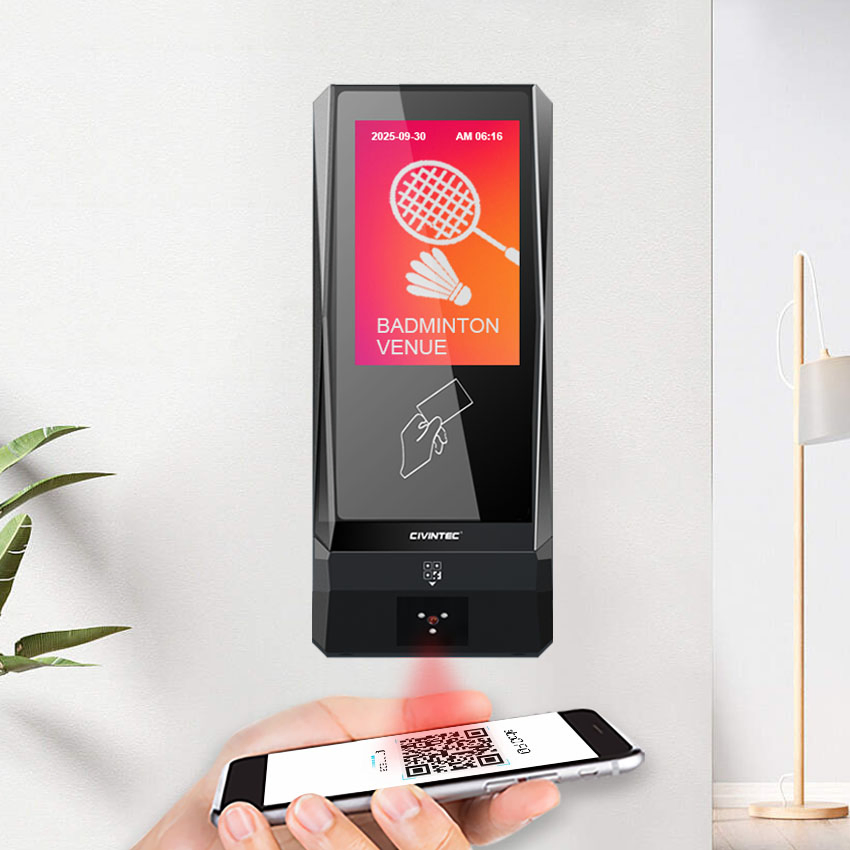

Outdoor WiFi RFID Office Door Access System Qr NFC Visitor Access Management Mobile APP for Building Entrance Commercial Use
Outdoor WiFi RFID Office Door Access System Qr NFC Visitor Access Management Mobile APP for Building Entrance Commercial Use
Outdoor WiFi RFID Office Door Access System Qr NFC Visitor Access Management Mobile APP for Building Entrance Commercial Use
Outdoor WiFi RFID Office Door Access System Qr NFC Visitor Access Management Mobile APP for Building Entrance Commercial Use
Outdoor WiFi RFID Office Door Access System Qr NFC Visitor Access Management Mobile APP for Building Entrance Commercial Use
1 / 5
Outdoor WiFi RFID Office Door Access System Qr NFC Visitor Access Management Mobile APP for Building Entrance Commercial Use
Outdoor WiFi RFID Office Door Access System Qr NFC Visitor Access Management Mobile APP for Building Entrance Commercial Use
Outdoor WiFi RFID Office Door Access System Qr NFC Visitor Access Management Mobile APP for Building Entrance Commercial Use
Outdoor WiFi RFID Office Door Access System Qr NFC Visitor Access Management Mobile APP for Building Entrance Commercial Use
Outdoor WiFi RFID Office Door Access System Qr NFC Visitor Access Management Mobile APP for Building Entrance Commercial Use

Outdoor WiFi RFID Office Door Access System Qr NFC Visitor Access Management Mobile APP for Building Entrance Commercial Use

Customization: Available
Type: Access Control System
Card Type: CPU, Mifare, EM, DESFire EV1/EV2/EV3, MIFARE Plus
Send Inquiry

Product Description

Basic Specifications
Model NO.
CT9 PRO
Reading Distance
10cm-15m
Operating System
Linux OS
Display
3.5" Touch Screen
Identification
RFID, NFC, BLE, Pin Code, QR Code
IP Protection
IP65 Waterproof
Power
12-24V DC; PoE IEEE 802.3af
Certification
CE, FCC
Product Overview

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet. It is designed for both LAN and Internet cloud server software communication, featuring embedded relays to build versatile IoT and security solutions.

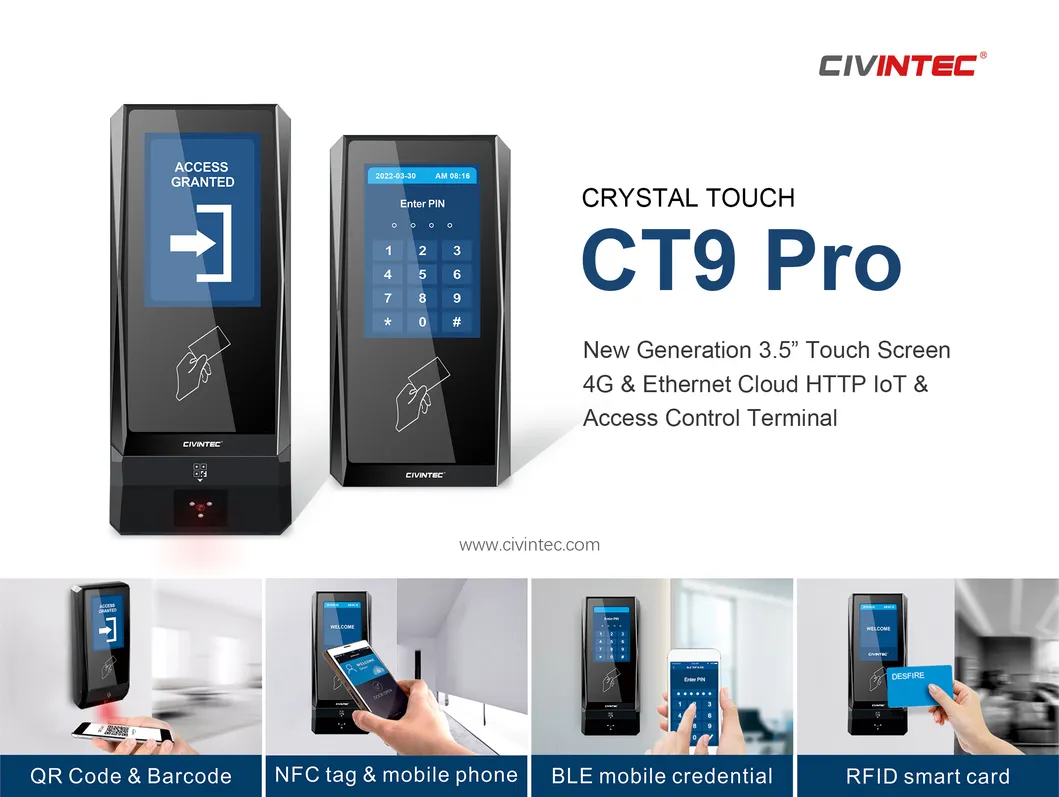

Access System Overview
Wireless Features
Key Features

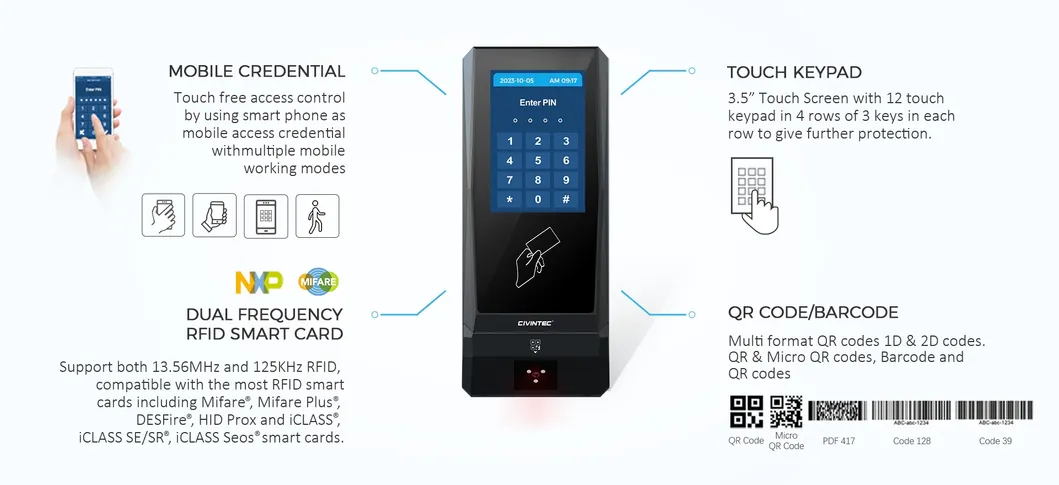

💠 Multiple Access Credentials

Supports 5-in-1 technologies: touch keypad, dual-frequency RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning via smartphone.

Multiple Credentials

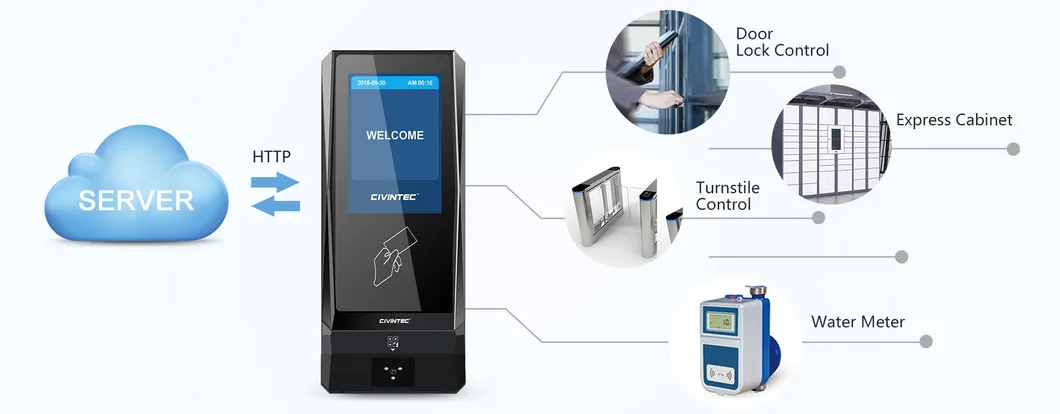

Cloud Control
🌦️ Weather-Resistant Protection

Rated IP65, the CT9 PRO is resistant to rain, dust, and strong sunlight, making it ideal for outdoor installation and rugged environments.

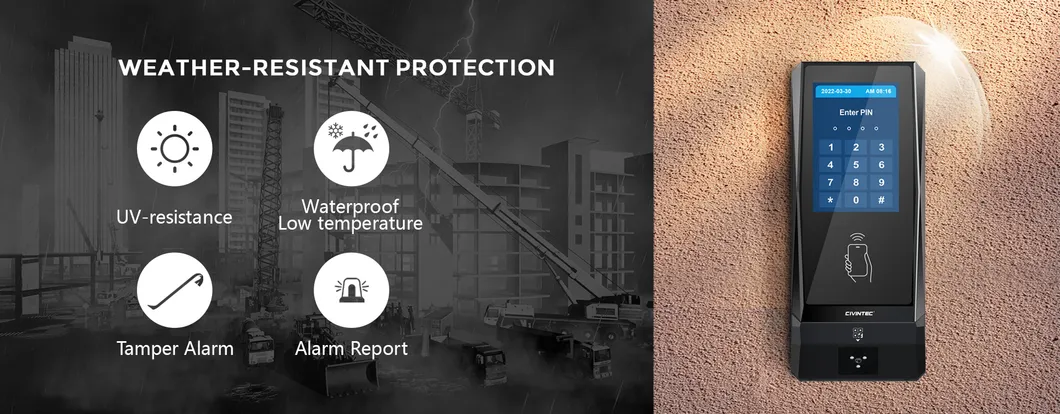

Weatherproof Protection
System Configuration & Data
QR Code Support1D & 2D (QR, Micro QR, PDF417, Code 128, etc.)
Mobile IDBLE (iOS/Android), NFC (Android)
RFID Smart CardMifare® Classic, DESFire® EV1/EV2/EV3, iCLASS Seos®
Communication4G, WiFi, TCP/IP, Wiegand, RS485 OSDP
Offline Logs10,000 users / 50,000 logs
I/O Port1~2 relay outputs, Tamper alarm, Door exit contact

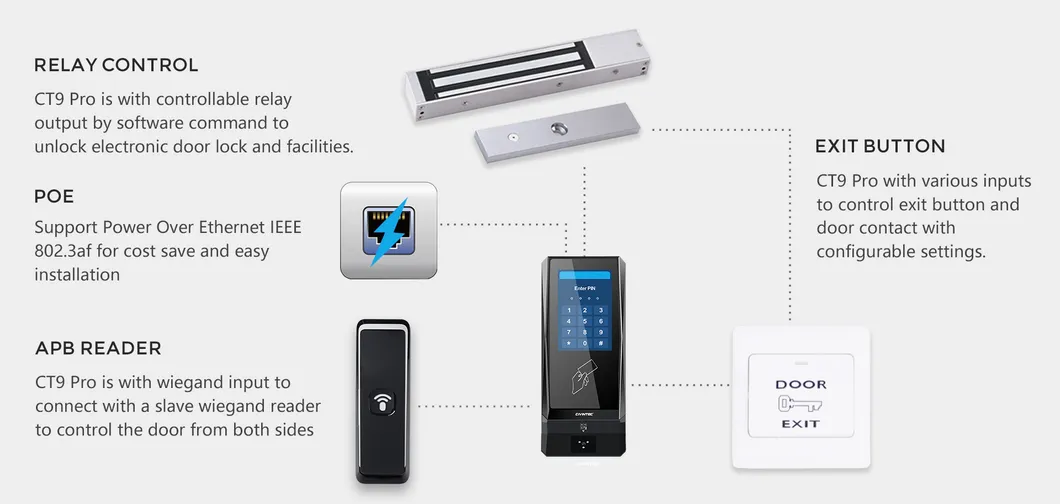

System Configuration
Customization Services

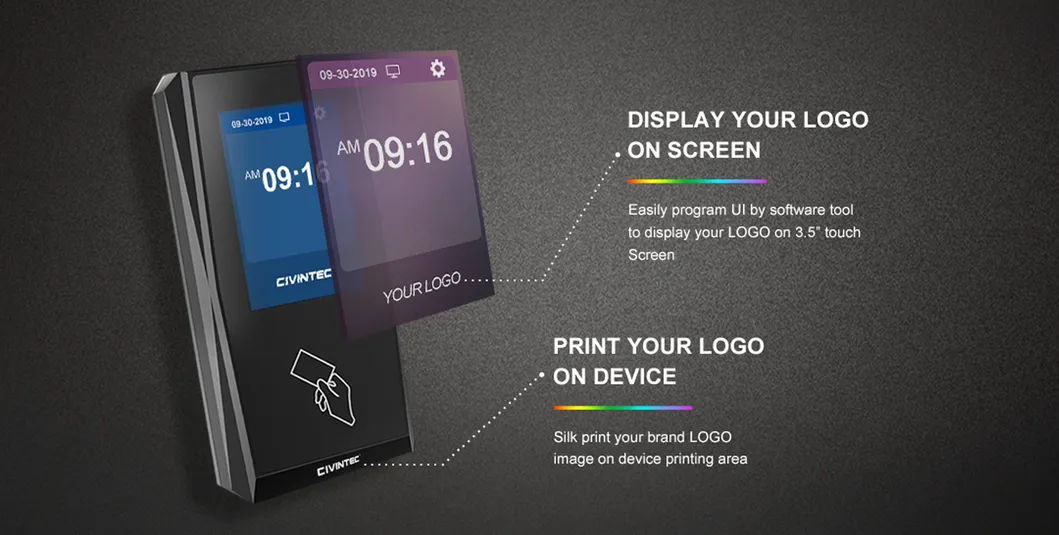

Logo Customization
Related Product Previews
Related Series
Product Detail 1
Product Detail 2
Product Detail 3
Frequently Asked Questions
1. What identification methods does the CT9 PRO support? The CT9 PRO supports 5-in-1 identification: RFID (125KHz & 13.56MHz), Mobile NFC, BLE, Touch Pin Code, and QR Code/Barcode scanning.
2. Is this device suitable for outdoor use? Yes, it features an IP65 waterproof rating and UV resistance, making it ideal for outdoor building entrances and rugged environments.
3. How does the device communicate with the server? It uses bio-directional communication via standard HTTP or HTTPs protocols, supporting 4G, WiFi, and TCP/IP Ethernet connections.
4. Can I customize the display on the touch screen? Yes, users can program and display their own logo on the 3.5" touch screen. OEM logo printing on the reader body is also available.
5. What is the capacity for offline logs? The standard configuration supports 10,000 users and 50,000 event logs, with higher capacities available upon request.
6. Does it support PoE? Yes, the device supports Power over Ethernet (PoE) via the IEEE 802.3af standard, in addition to 12-24V DC power supply.
