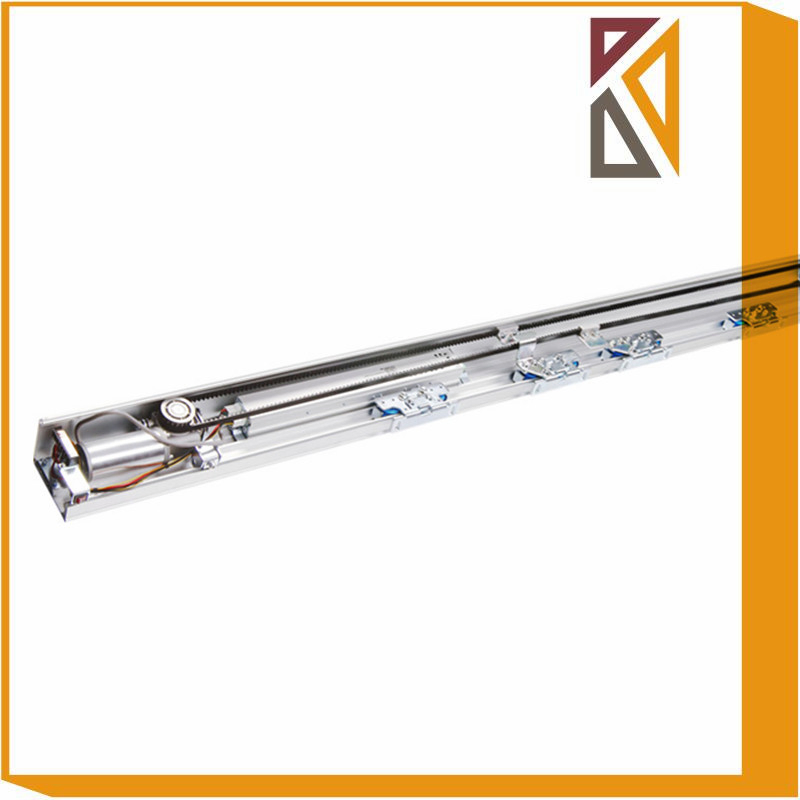

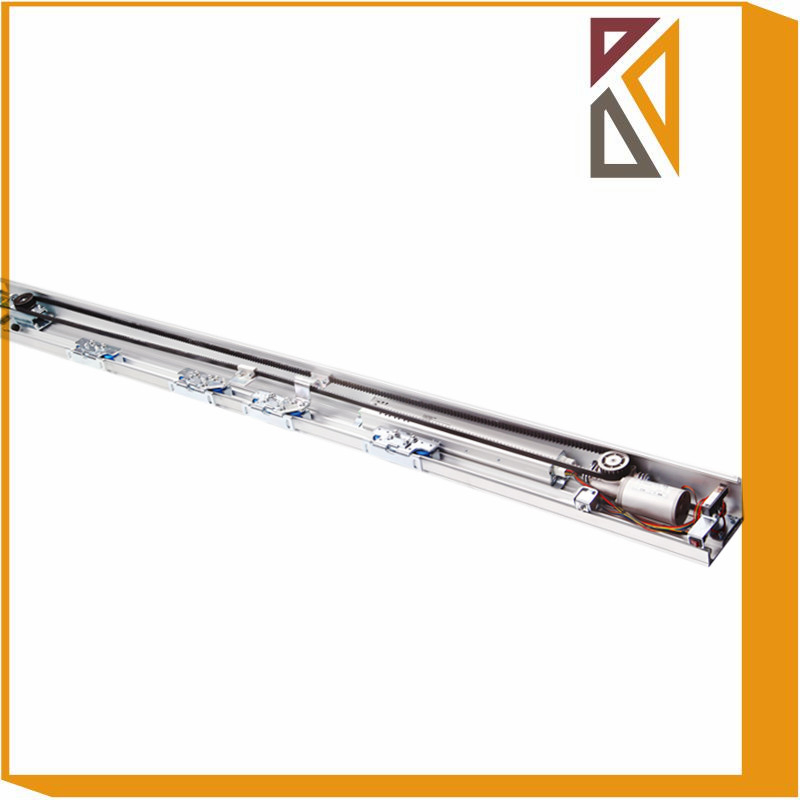

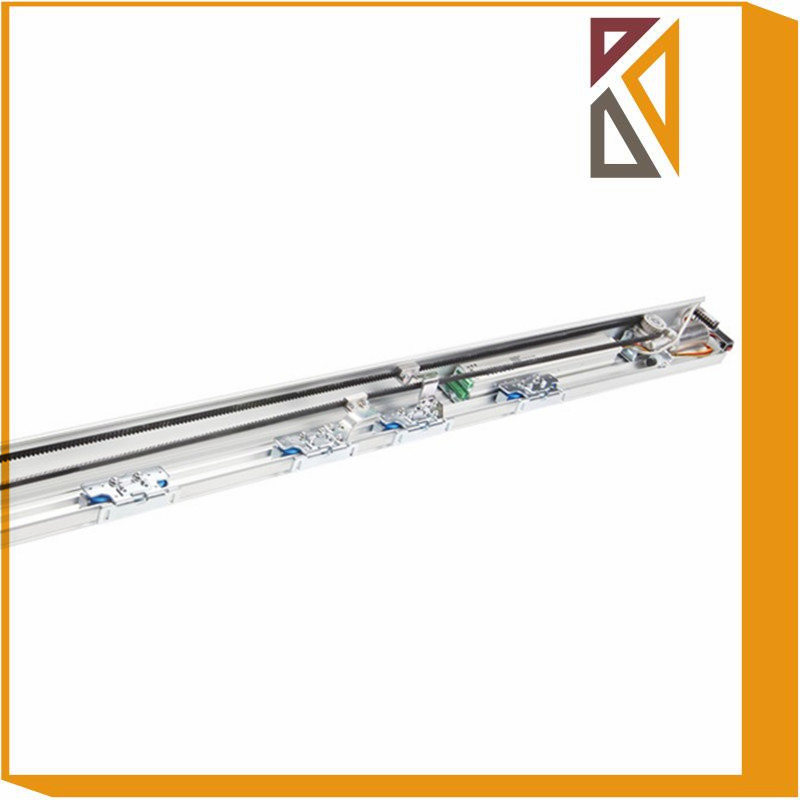

KA-120 automatic sliding glass door system for sliding pedestrian doors, hold max 120Kg, designed for normal use for interior and exterior place and is the hot sales in market all the time. Through these years improvement, its technology and quality is very mature.

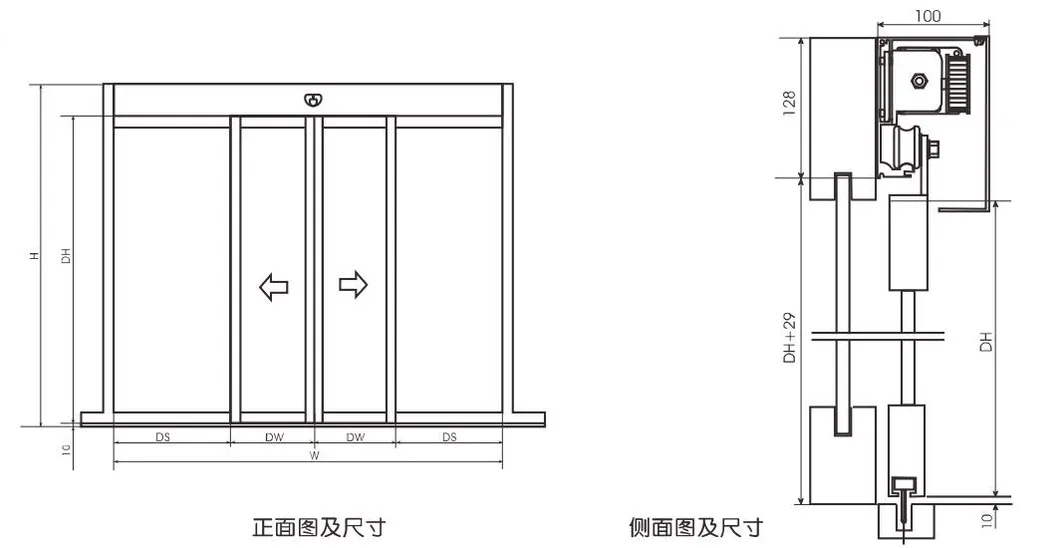

Height 125mm, Depth 100mm track. Its design is very simple and easy to install.

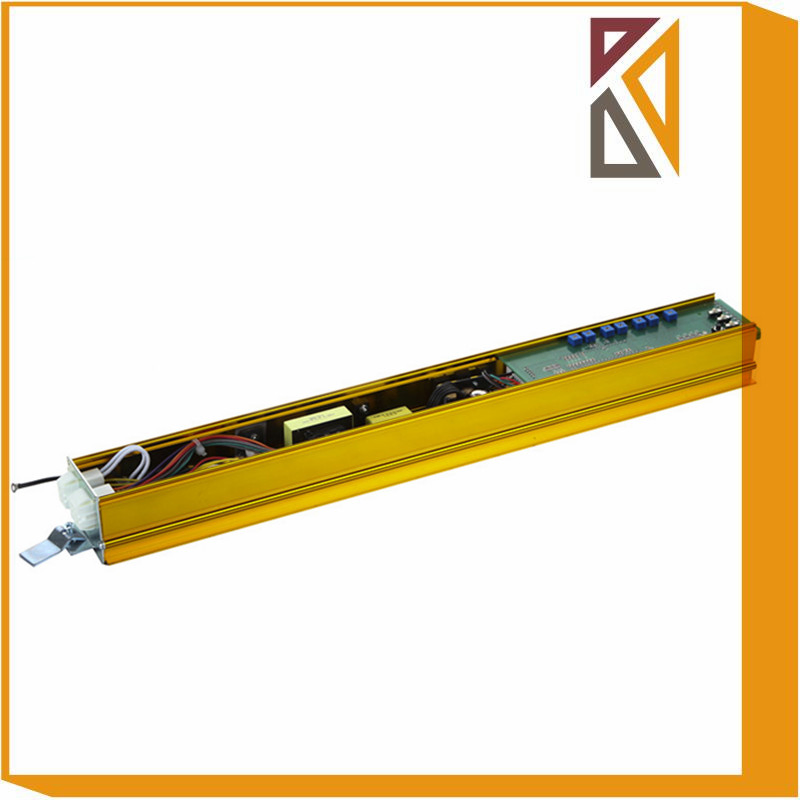

| Microprocessor controller | yes |
| Program programs (Off, Auto, Permanent Open, Partial, Exit Only) | yes |
| Emergency open | yes |
| Self-learning | yes |
| Automatic reverse | yes |
| Connection for electro-mechanical locking | yes |
| 24 V/12V output for external consumption | yes |
| Parameter | Single Door | Bi-Parting Door |
|---|---|---|
| Door width | 700mm-1300mm | 600mm-1250mm |
| Door weight | ≤ 120kg | ≤ 100kg x 2 |
| Opening speed | 15-50cm/s | 15-45cm/s |
| Power supply | 110V, 60Hz / 220V, 50Hz | |
| Profile size | 4200mm(L) x 150mm(H) x 78mm(W) | |
