🔹 Basic Information
Opening Type
Keypad Access Control
Motor
24V, 60W Brushless Motor
Application
Hotel, Bank, Airport, Supermarket
📖 Product Description

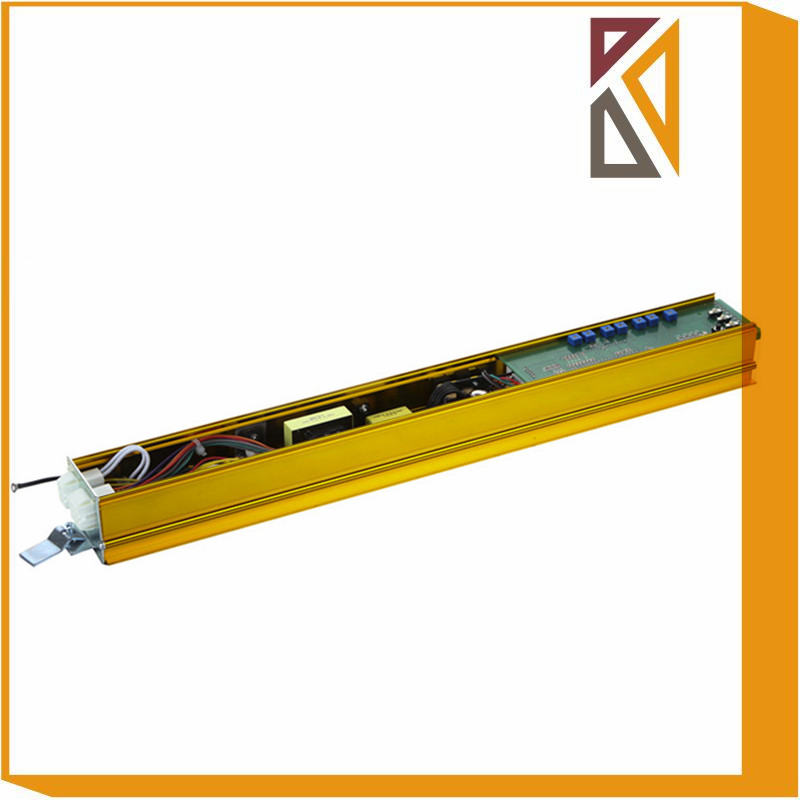

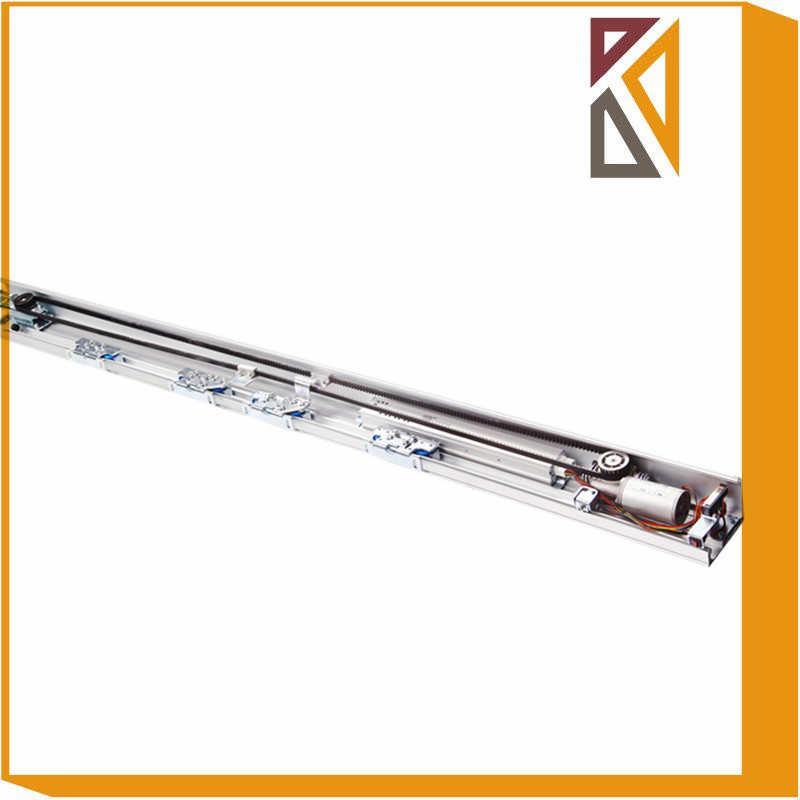

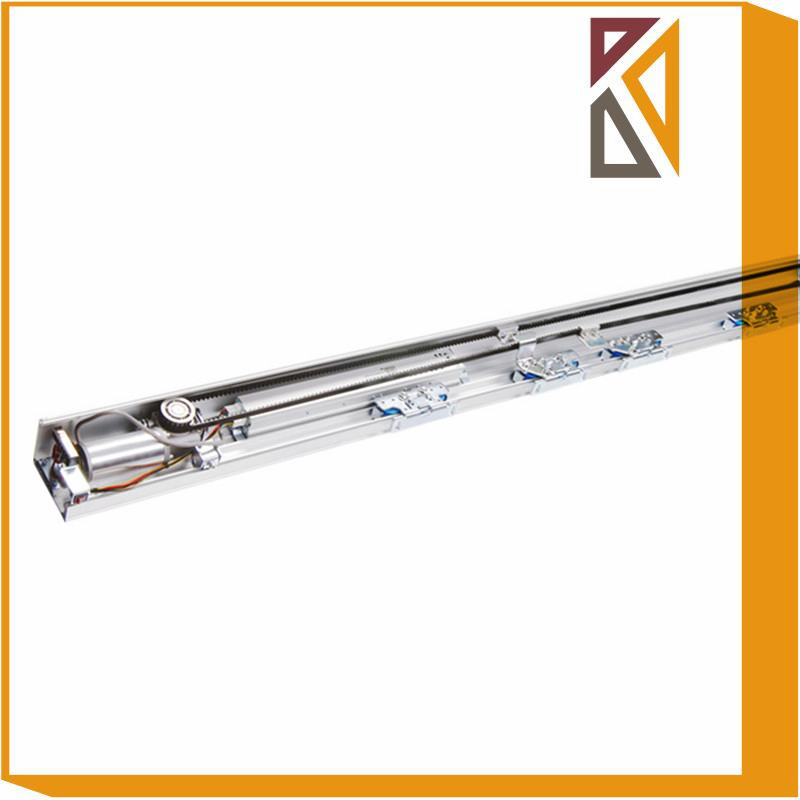

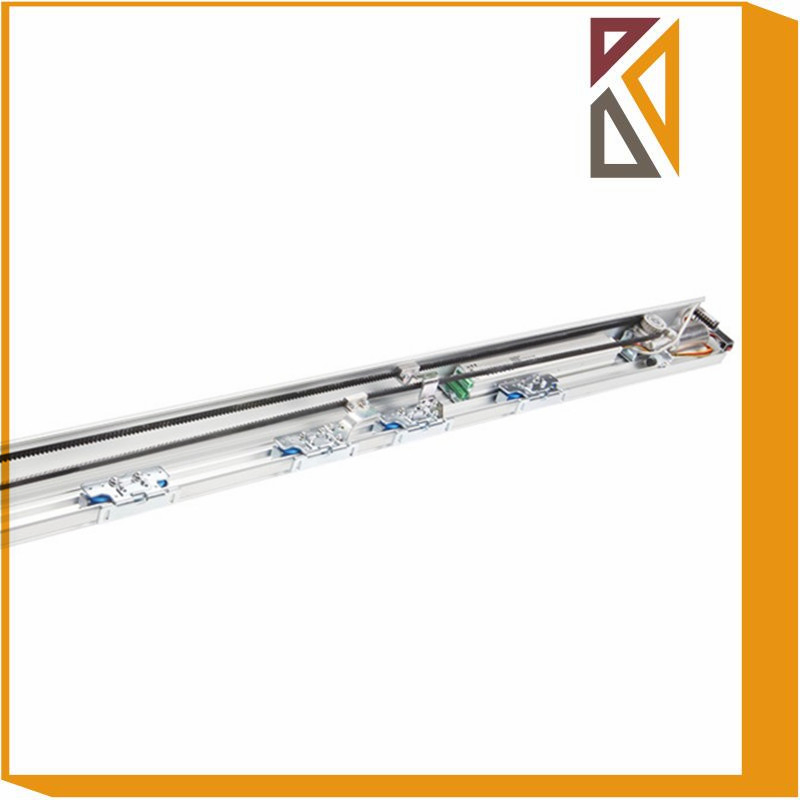

KA-120 automatic sliding glass door opening system for sliding pedestrian doors, hold max 120Kg, designed for normal use for interior and exterior place. Through years of improvement, its technology and quality are highly mature.
⚙️ Microcontroller Features
| Microprocessor controller | Yes |
| Program modes | Off, Automatic, Permanent Open, Partial Opening, Exit Only |
| Emergency Open | Yes |
| Self-learning | Yes |
| Automatic Reverse | Yes |
| Output Consumption | 24V/12V output for external use |
📊 Technical Data
| Parameter |
Single Leaf |
Bi-Parting |
| Door width | 700mm - 1300mm | 600mm - 1250mm |
| Door weight | ≤ 120kg | ≤ 100kg x 2 |
| Opening speed | 15-50cm/s (adjustable) | 15-45cm/s (adjustable) |
| Power supply | 110V, 60Hz / 220V, 50Hz |

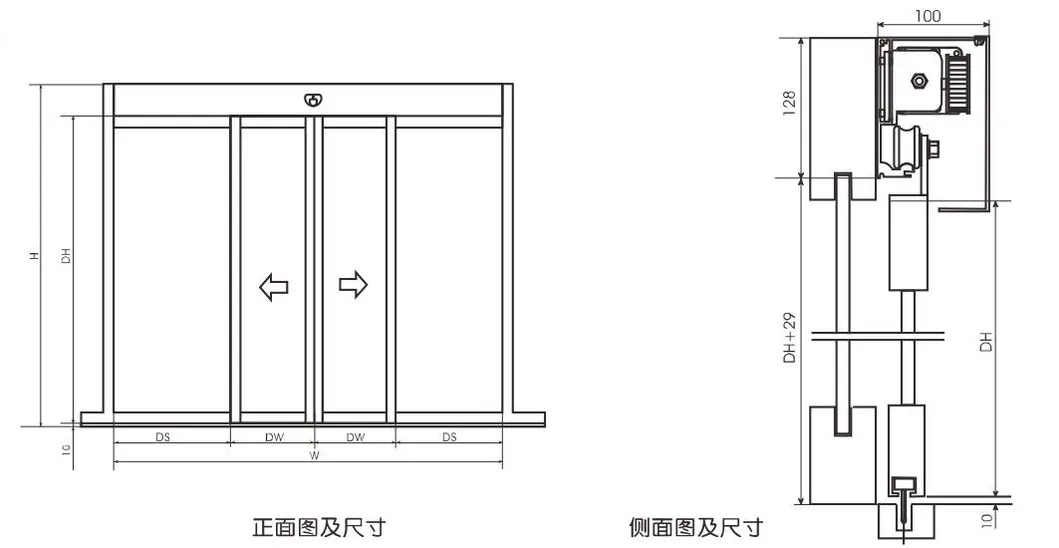

| Profile size | 4200mm(L) x 150mm(H) x 78mm(W) |
❓ Frequently Asked Questions
Q1: What is the maximum weight capacity for the KA120 model?
A: It can support a maximum weight of 120kg for a single door or 100kg x 2 for bi-parting doors.
Q2: Can the opening and closing speeds be adjusted?
A: Yes, the opening speed (15-50cm/s) and closing speed (10-45cm/s) are fully adjustable via the microcontroller.
Q3: Does the system support emergency operations?
A: Yes, it includes emergency stop, emergency open, and automatic reverse functions for safety.
Q4: Is the motor durable for commercial use?

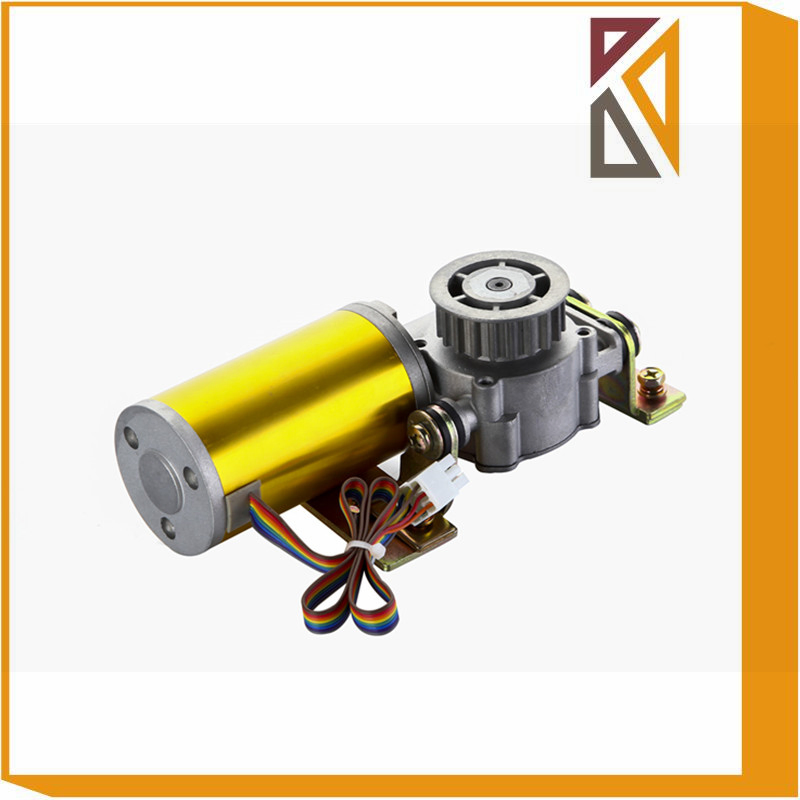

A: The system uses a high-quality 24V, 60W brushless motor designed for high-frequency use in commercial entrances.
Q5: What power supply is required for installation?
A: The system is compatible with wide voltage ranges, supporting both 110V and 220V power supplies.

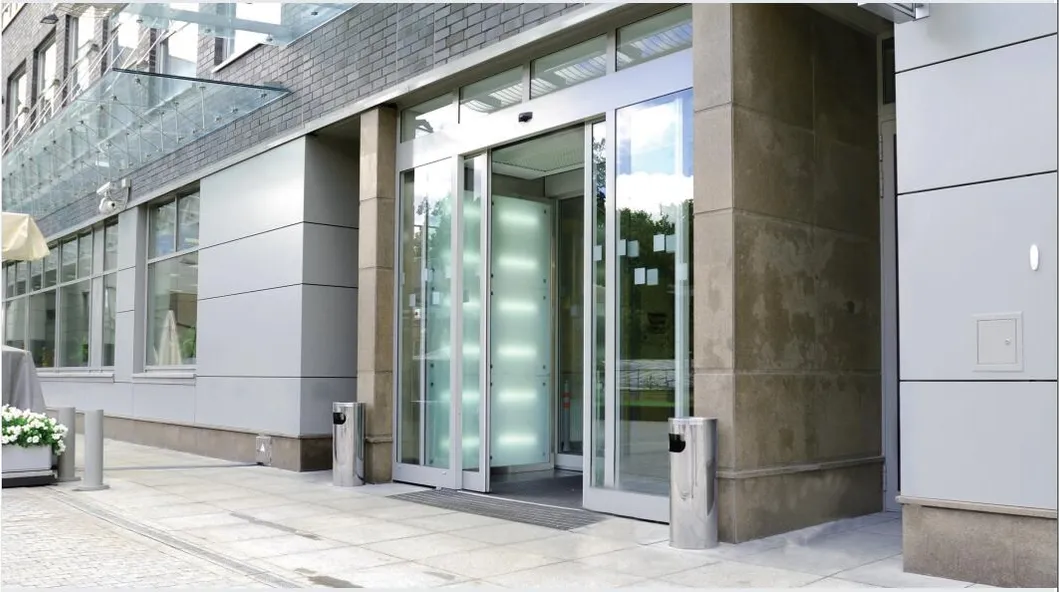

Q6: Where can this automatic door system be applied?
A: It is ideal for hotels, banks, airports, supermarkets, and various commercial retail shops.
