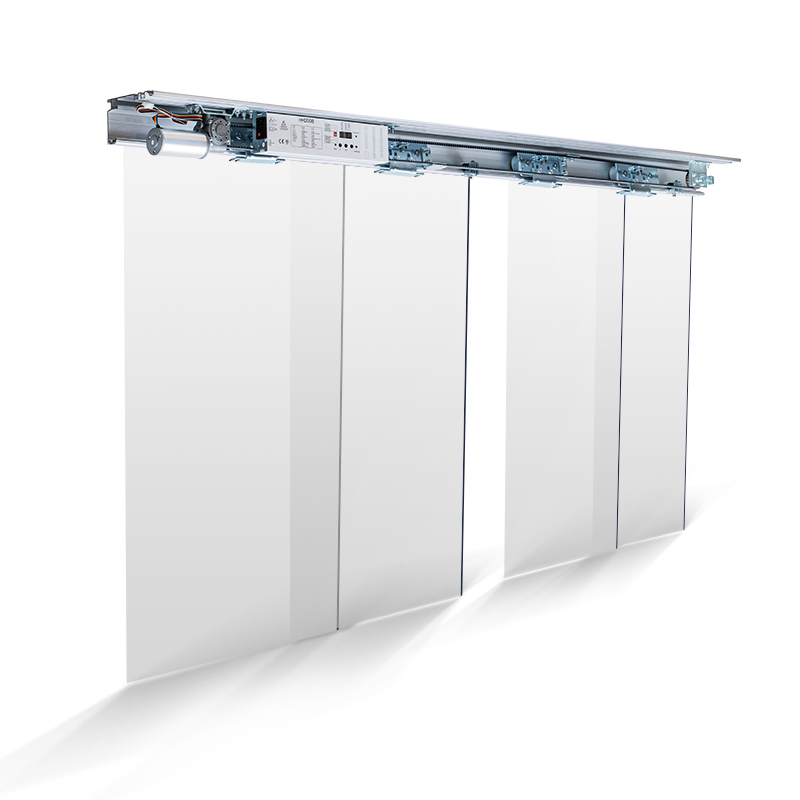

Automatic Door Sliding System for Large Width Entrance
Automatic Door Sliding System for Large Width Entrance
Automatic Door Sliding System for Large Width Entrance
Automatic Door Sliding System for Large Width Entrance
Automatic Door Sliding System for Large Width Entrance
1 / 5
Automatic Door Sliding System for Large Width Entrance
Automatic Door Sliding System for Large Width Entrance
Automatic Door Sliding System for Large Width Entrance
Automatic Door Sliding System for Large Width Entrance
Automatic Door Sliding System for Large Width Entrance

Automatic Door Sliding System for Large Width Entrance

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
HH200B
Material
Aluminum Alloy
Type
Sliding
Open Style
Sliding
Opening Type
Power Driven
Special Function
Security
Color
Silver
Certification
TUV, CCC, ISO9001, RoHS, CE
Position
Commercial
Surface Finishing
Finished
Origin
China
HS Code
9032899099
Product Description

Commercial Automatic Heavy Duty Sliding Door HH200B LED Display Controller Supermarket

◈

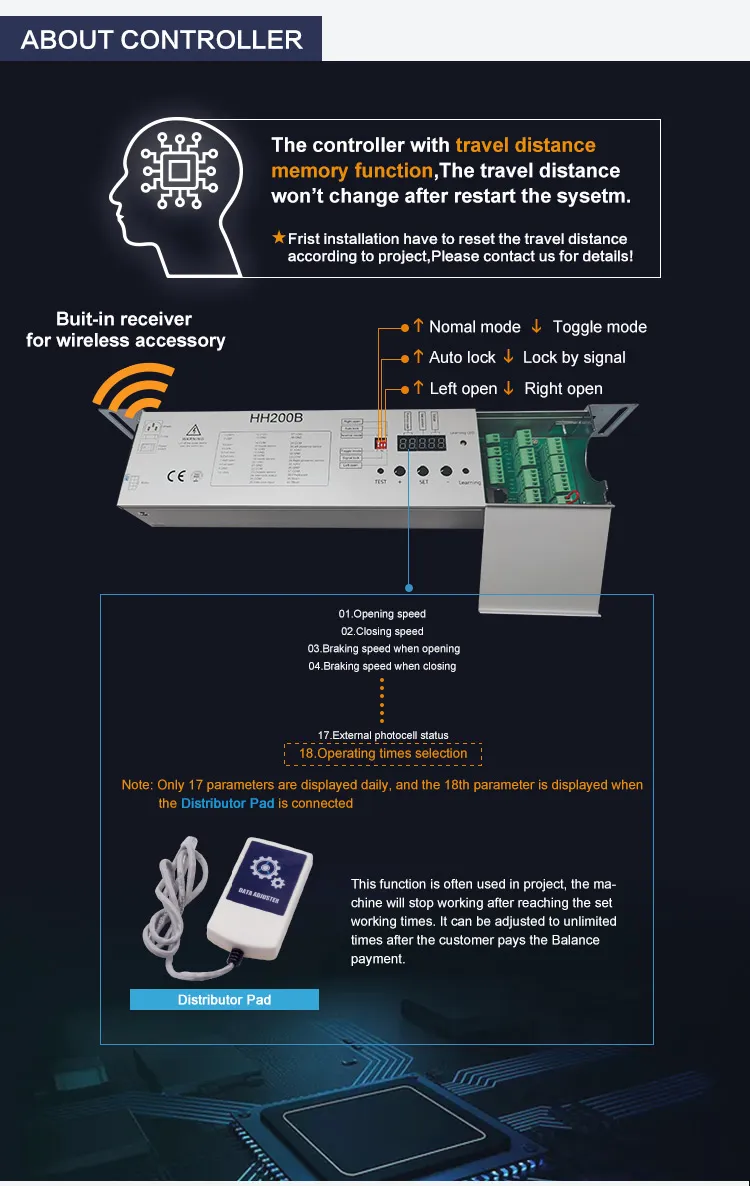

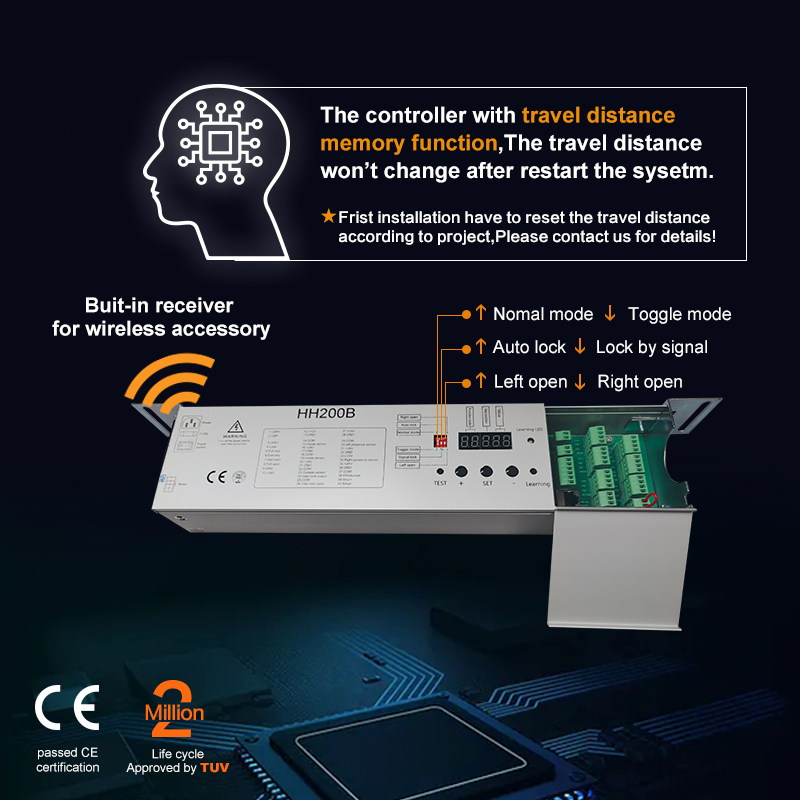

The controller with travel distance memory function, Memory work cycle (The first installation should be reset).
◈

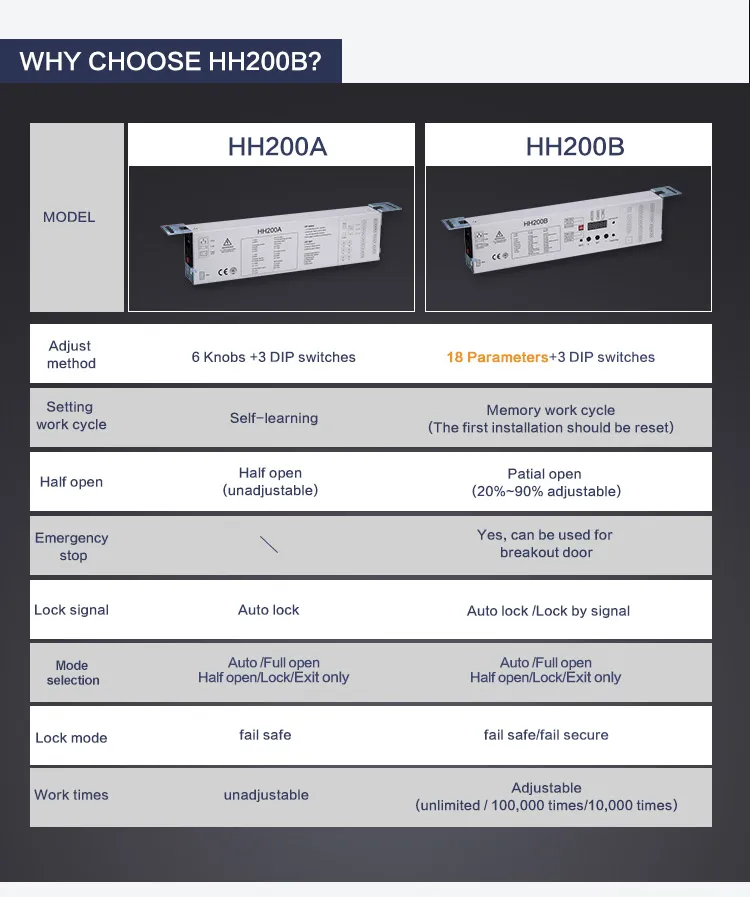

18 Parameters + 3 DIP switches for precise customization.
◈
Emergency stop: can be used for breakout door applications.
◈
Wide Voltage Range: AC100-240V compatibility.
Automatic Door Sliding System

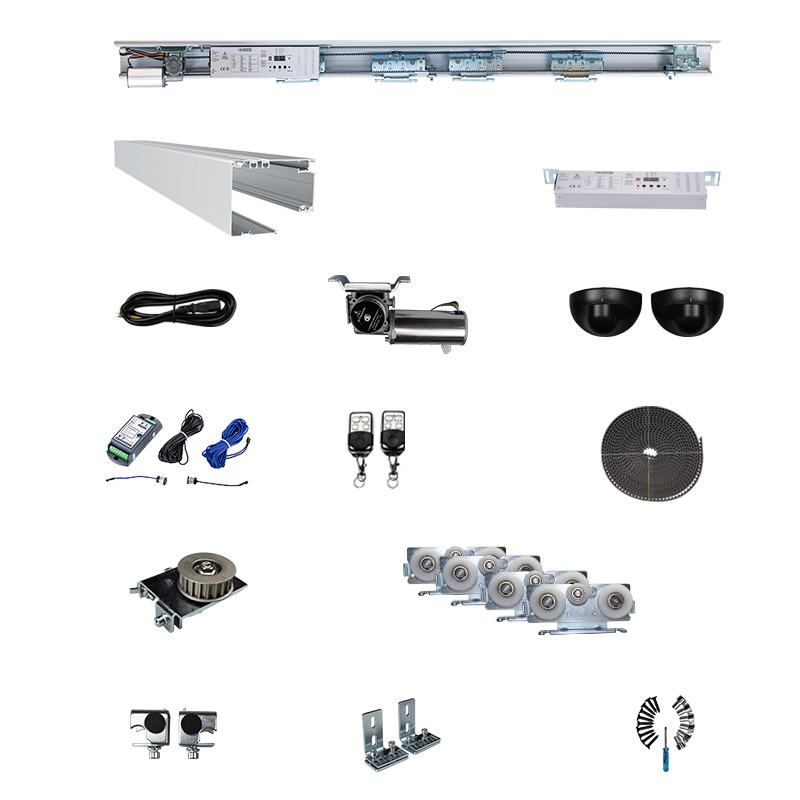

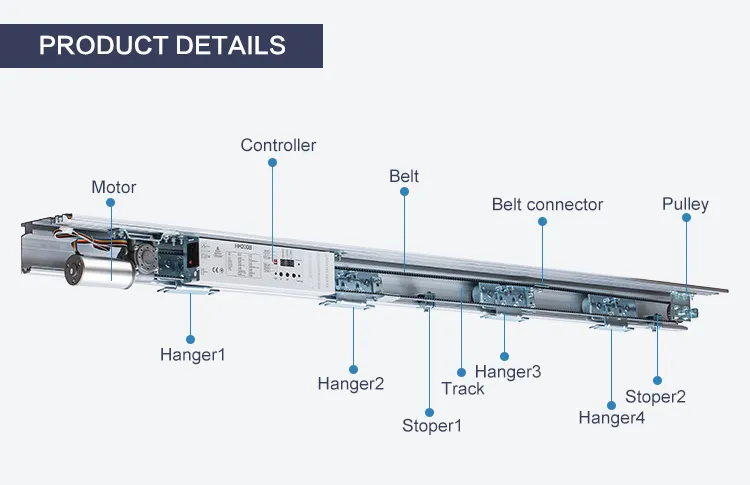

Automatic Door Components
Specifications HH200B
Door leaf mode single-opening Double-openning
Door leaf weight MAX 1*200kgs MAX 180kgs
Door leaf width DW=500-2000mm DW=500-2000mm
Voltage AC100-240V, 50-60Hz
Opening speed 20-55cm/s (Adjustable)
Closing speed 20-55cm/s (Adjustable)

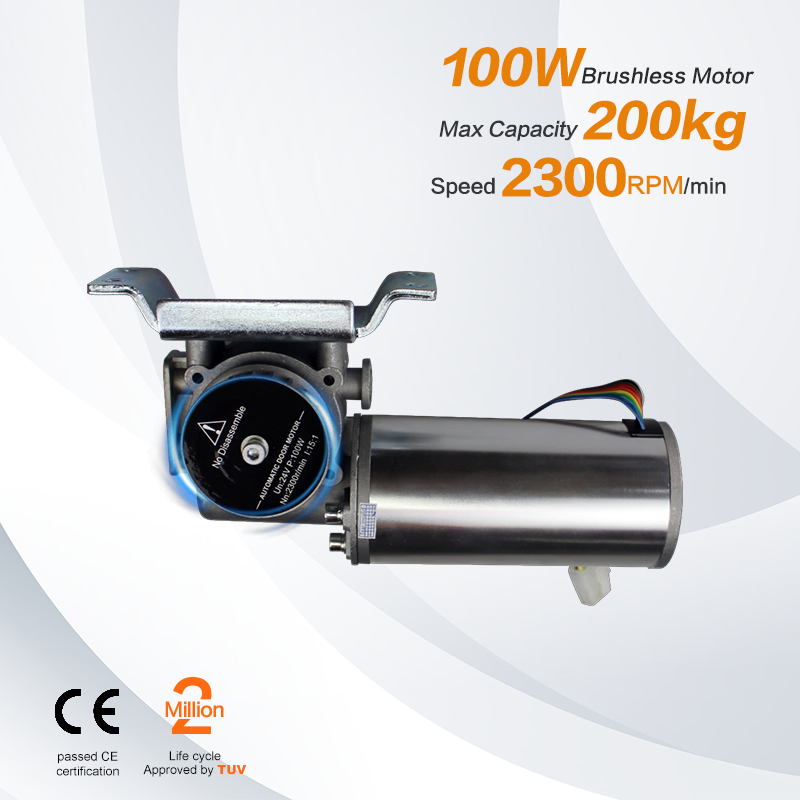

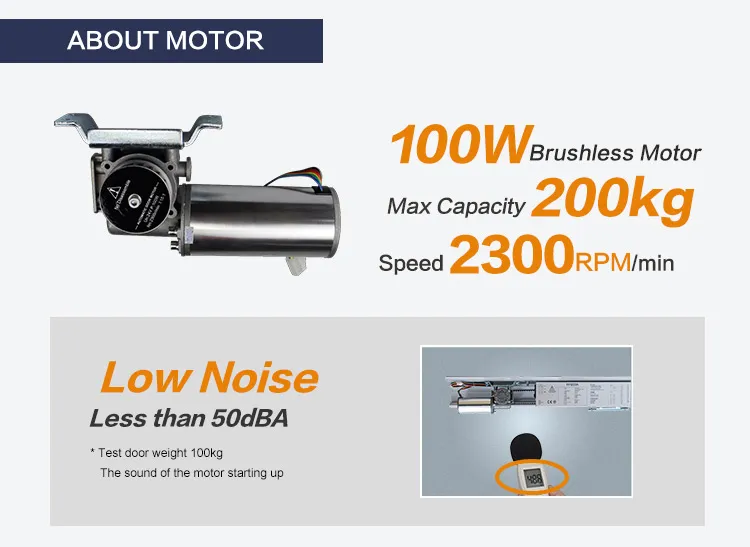

Motor 24V, 100W 2300rpm brushless DC motor
Operating temperature -10ºC ~ +70ºC
Sliding Door Detail
Sliding Door Mechanism
Door Controller

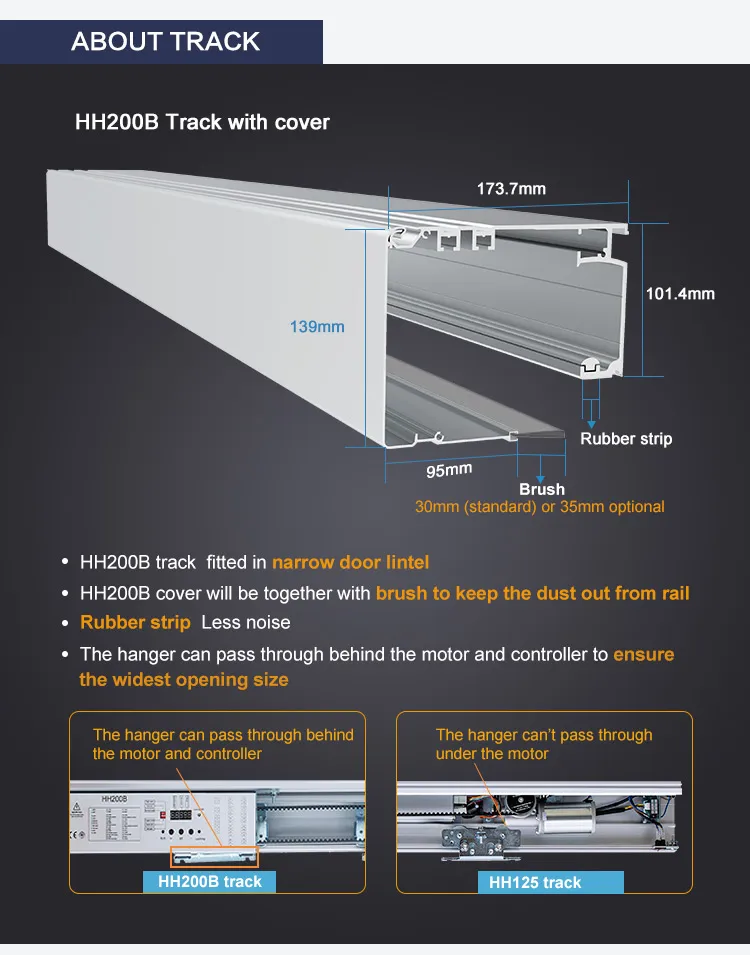

Heavy Duty Installation

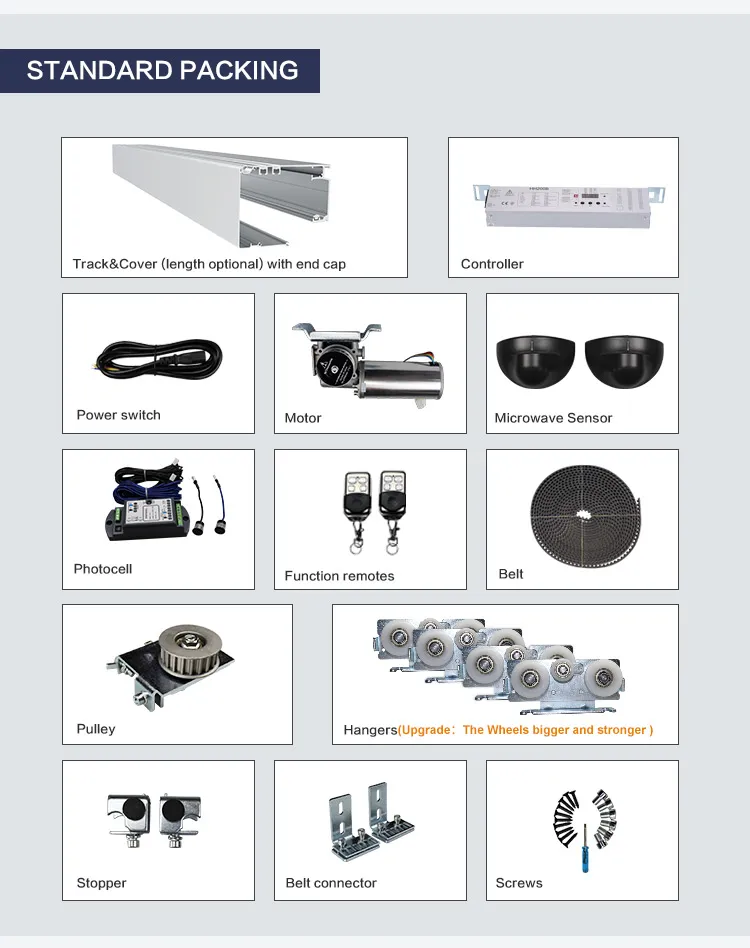

Sliding System View

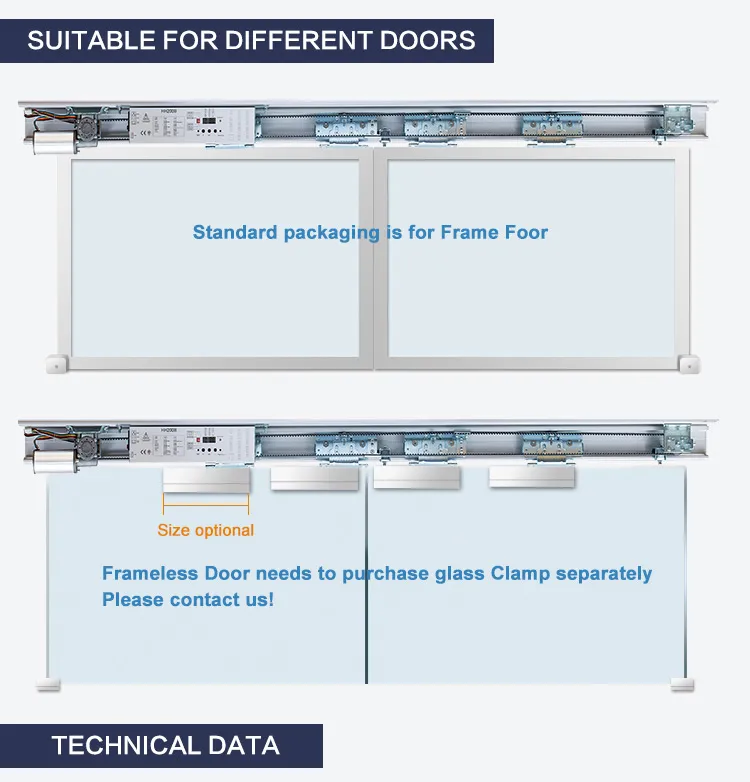

Technical Drawing

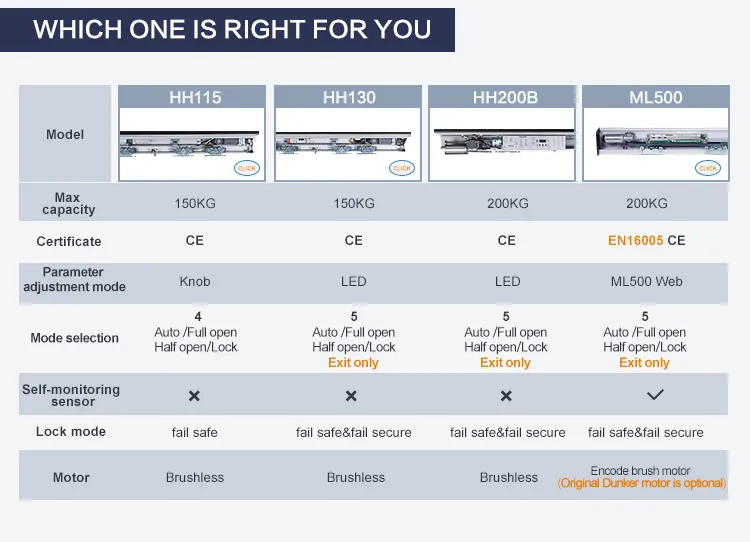

Product Layout
Frequently Asked Questions
1. What is the maximum door leaf weight for the HH200B?
For single-opening doors, the maximum weight is 200kg. For double-opening doors, it supports up to 180kg per leaf.
2. Does the controller support different voltage standards?
Yes, the system is designed to work with a wide voltage range from AC100V to 240V, 50-60Hz.
3. Can the opening and closing speeds be adjusted?
Absolutely. Both opening and closing speeds are adjustable between 20-55cm/s to suit your specific traffic needs.
4. What kind of motor does this automatic sliding door use?
The system utilizes a powerful 24V, 100W 2300rpm brushless DC motor for efficiency and durability.
5. Is there a safety feature for emergencies?
Yes, the HH200B includes an emergency stop function which is compatible with breakout door configurations for safety.
6. What certifications does this product hold?
The product is fully certified with TUV, CCC, ISO9001, RoHS, and CE, ensuring high international quality standards.
