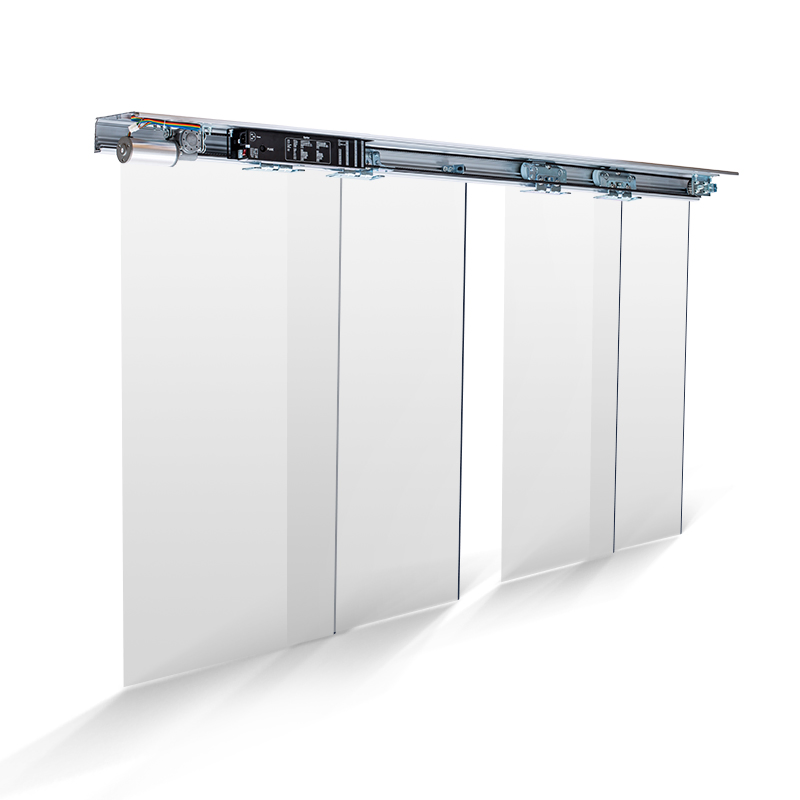

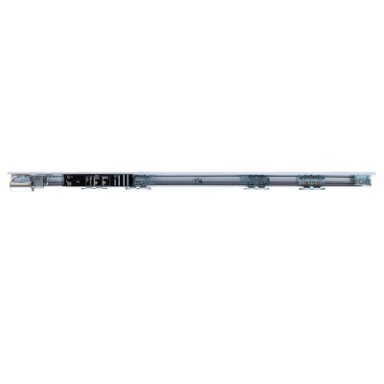

SPIDER Automatic Sliding Door is a professional European-type solution designed for commercial entrances and hotel doors, strictly meeting the European standard: EN16005.

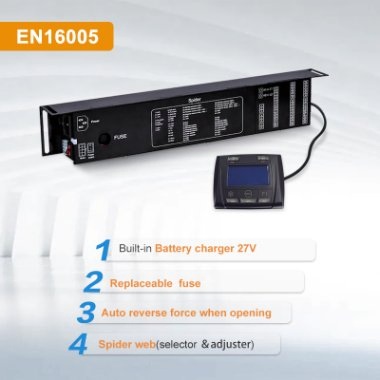

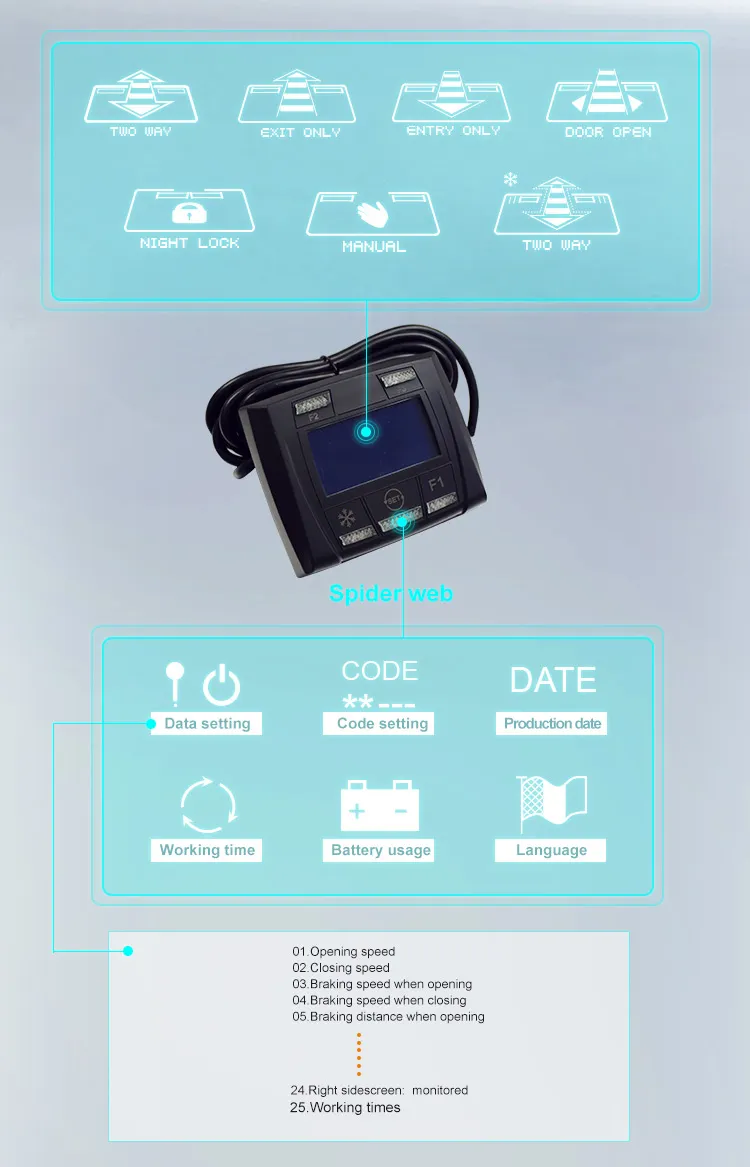

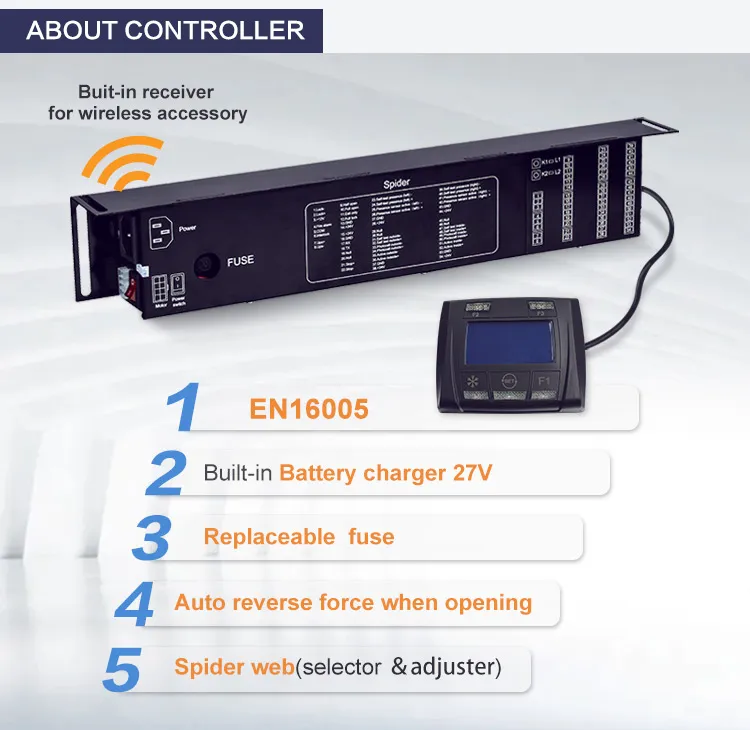

This Automatic controller delivers perfect performance with multiple modes: OPEN / CLOSE / LOCK / ONE WAY / AUTOMATIC for glass sliding sensor doors.

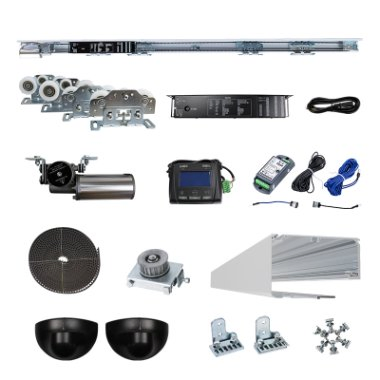

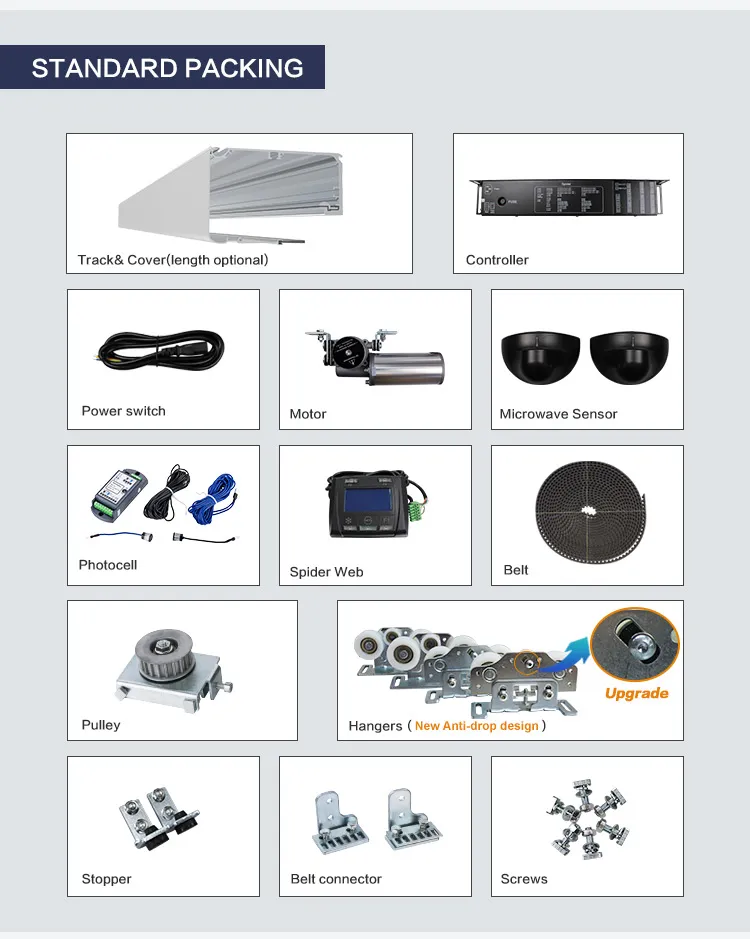

Compatible with sensors and photocells to activate the door while ensuring maximum safety. Extra components such as key switches, function pads, and various accessories are also well-supported.

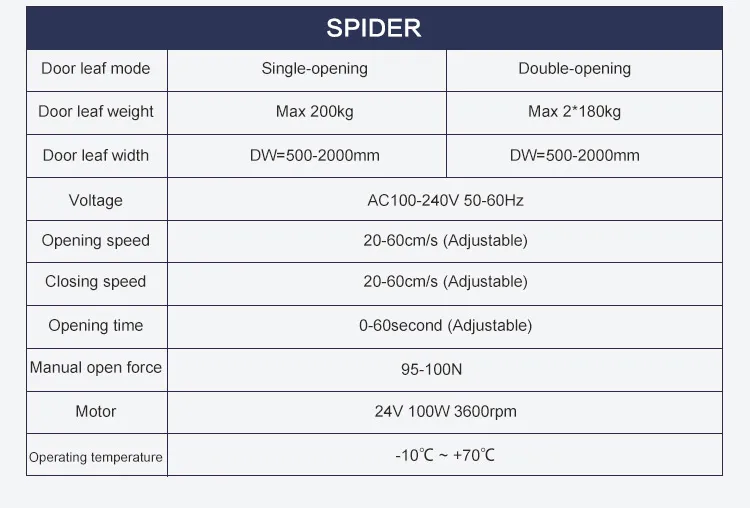

| Feature | SPIDER Details | |
|---|---|---|

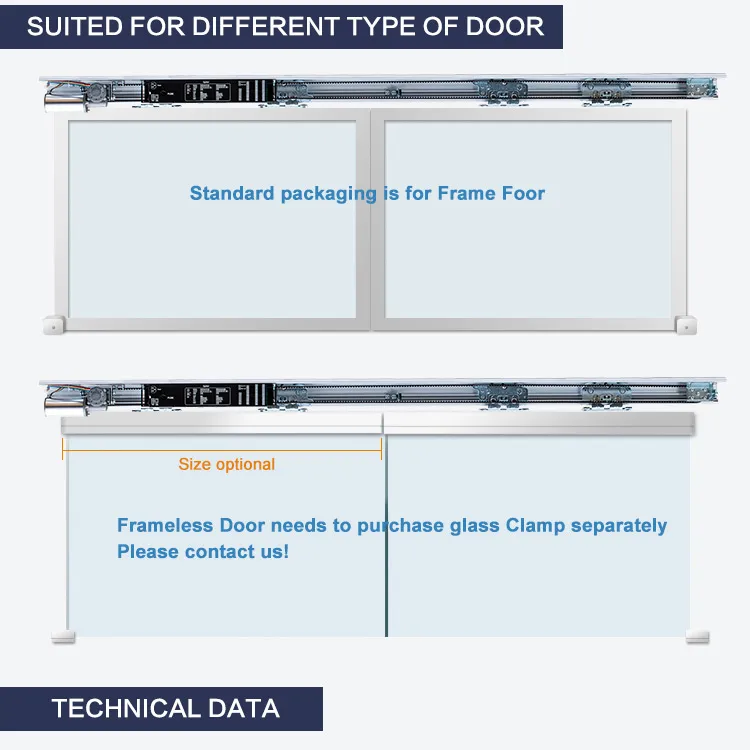

| Door leaf mode | Single-opening | Double-opening |
| Door leaf weight | Max 200kgs x 1 | Max 180kgs x 2 |
| Door leaf width | DW=700-1300mm | DW=600-1200mm |
| Voltage | AC 90-250V, 50Hz-60Hz | |
| Opening speed | 10-60cm/s (Adjustable) | |
| Closing speed | 10-60cm/s (Adjustable) | |

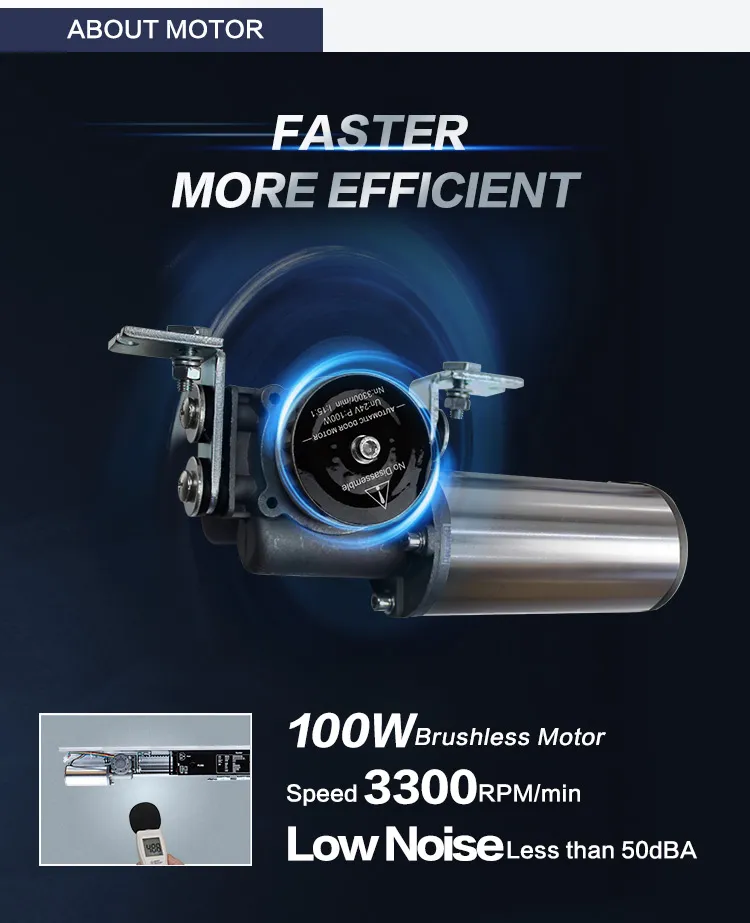

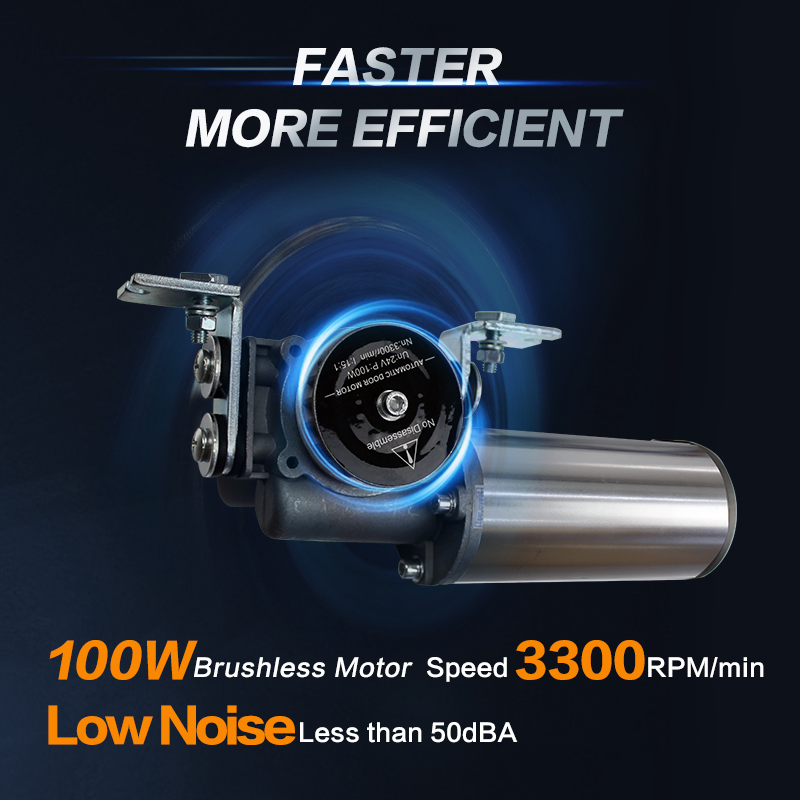

| Motor | DC24V, 100W 3300rpm brushless DC motor | |
| Operating temp | -20ºC to 70ºC | |
Specializing in automatic door research, development, and production, the main product range includes automatic sliding doors, swing doors, telescopic doors, and hermetic systems. With over 13 years of industry experience, products are exported worldwide to Europe, America, the Middle East, and Southeast Asia, carrying CE, TUV EN16005, UKCA, and RoHS certifications.
