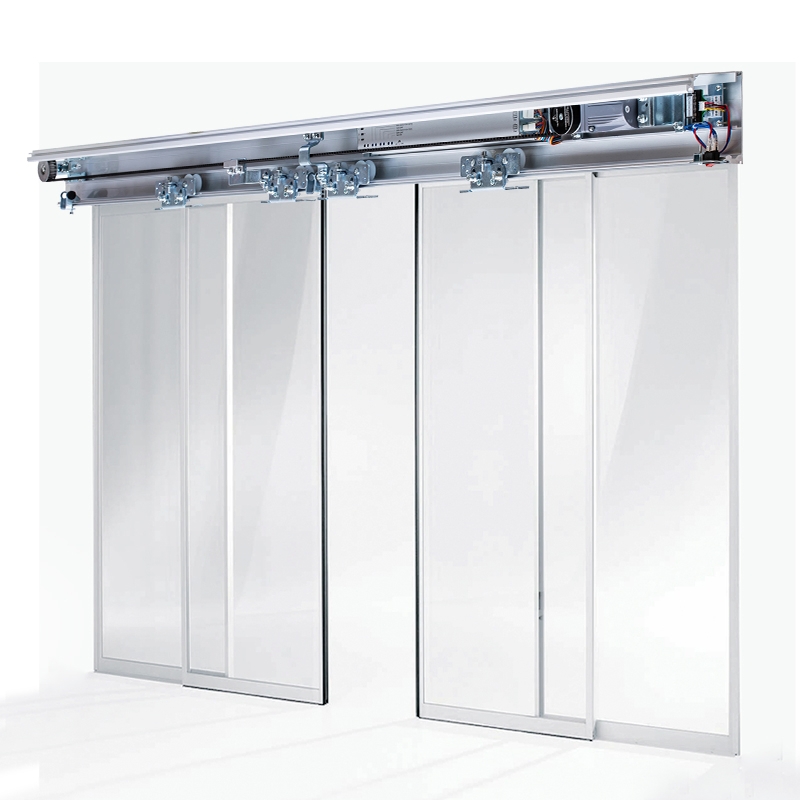

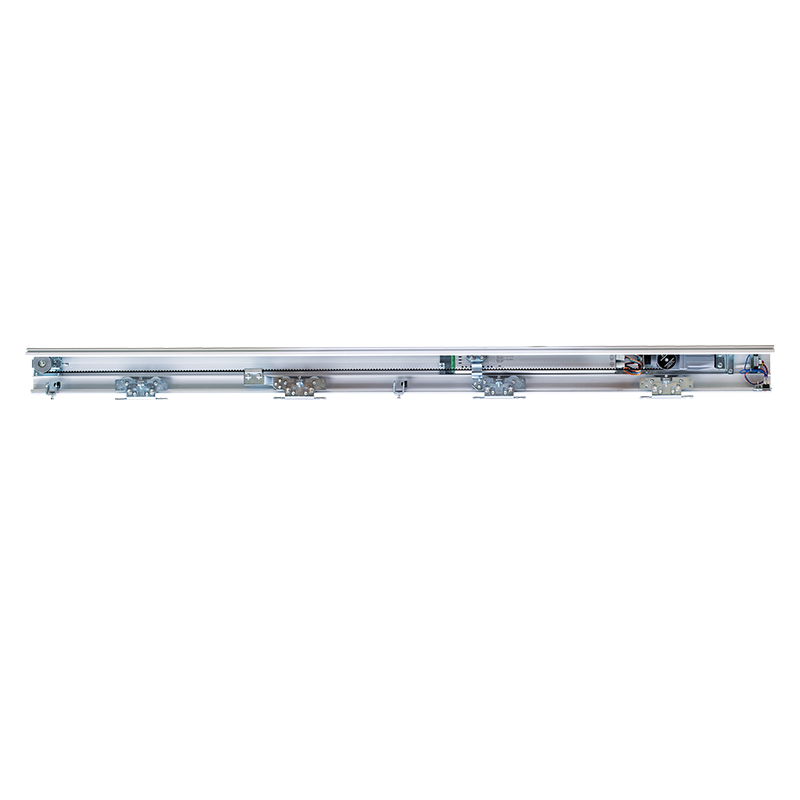

Turtech Hh115 Automatic Sliding Door Drive System with 100W Motor Commercial Hotel Entrance
Turtech Hh115 Automatic Sliding Door Drive System with 100W Motor Commercial Hotel Entrance
Turtech Hh115 Automatic Sliding Door Drive System with 100W Motor Commercial Hotel Entrance
Turtech Hh115 Automatic Sliding Door Drive System with 100W Motor Commercial Hotel Entrance
Turtech Hh115 Automatic Sliding Door Drive System with 100W Motor Commercial Hotel Entrance
1 / 5
Turtech Hh115 Automatic Sliding Door Drive System with 100W Motor Commercial Hotel Entrance
Turtech Hh115 Automatic Sliding Door Drive System with 100W Motor Commercial Hotel Entrance
Turtech Hh115 Automatic Sliding Door Drive System with 100W Motor Commercial Hotel Entrance
Turtech Hh115 Automatic Sliding Door Drive System with 100W Motor Commercial Hotel Entrance
Turtech Hh115 Automatic Sliding Door Drive System with 100W Motor Commercial Hotel Entrance

Turtech Hh115 Automatic Sliding Door Drive System with 100W Motor Commercial Hotel Entrance

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview
Model NO.
HH115
Transport Package
Cartons
Trademark
Doortec
Origin
China
HS Code
9032899099
Product Description

Turtech Commercial Interior Glass Door Automatic Sliding Door HH115

Microprocessor control technology and advanced mechanical manufacture

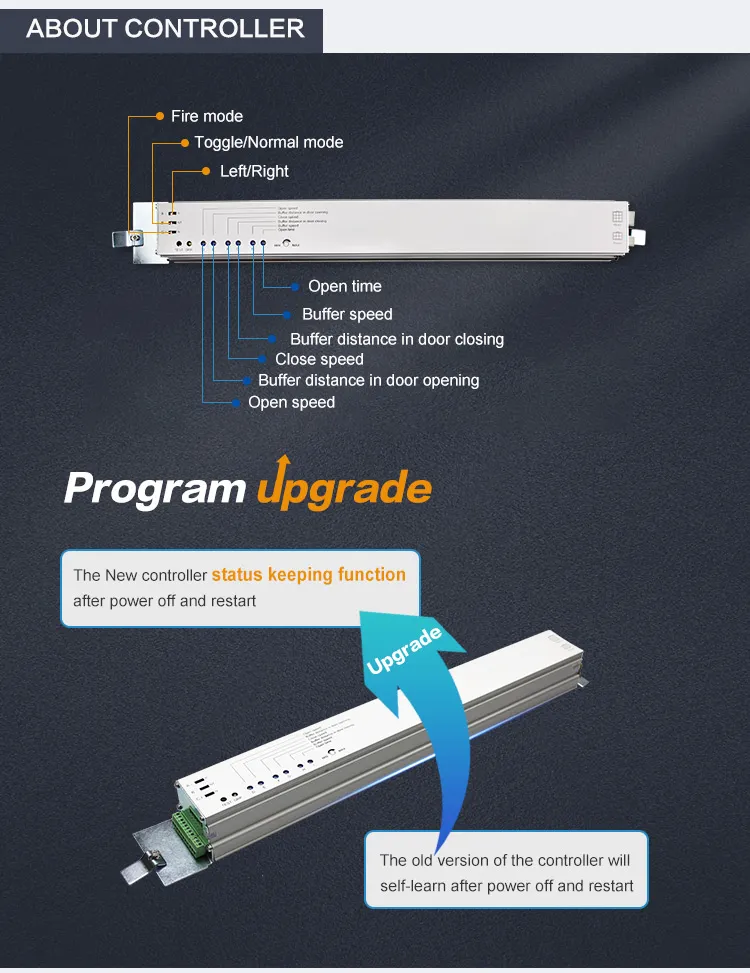

Self-learning when power on (selectable by user)

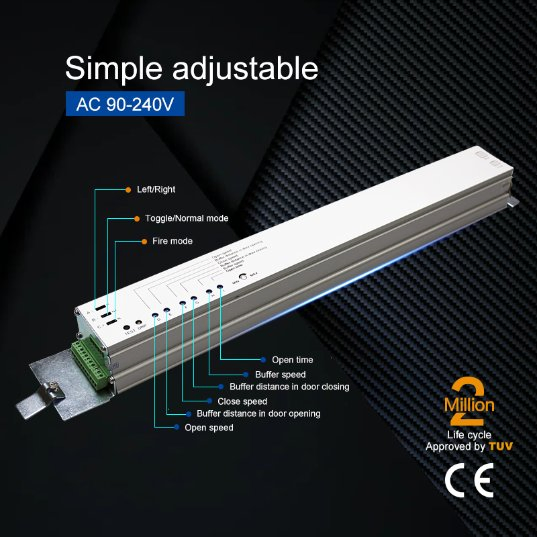

Digital screen for easy and exact adjustment of working data

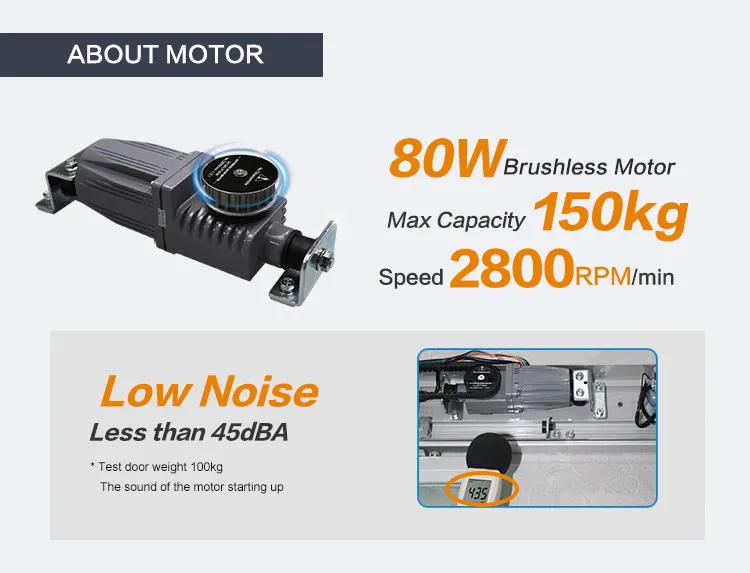

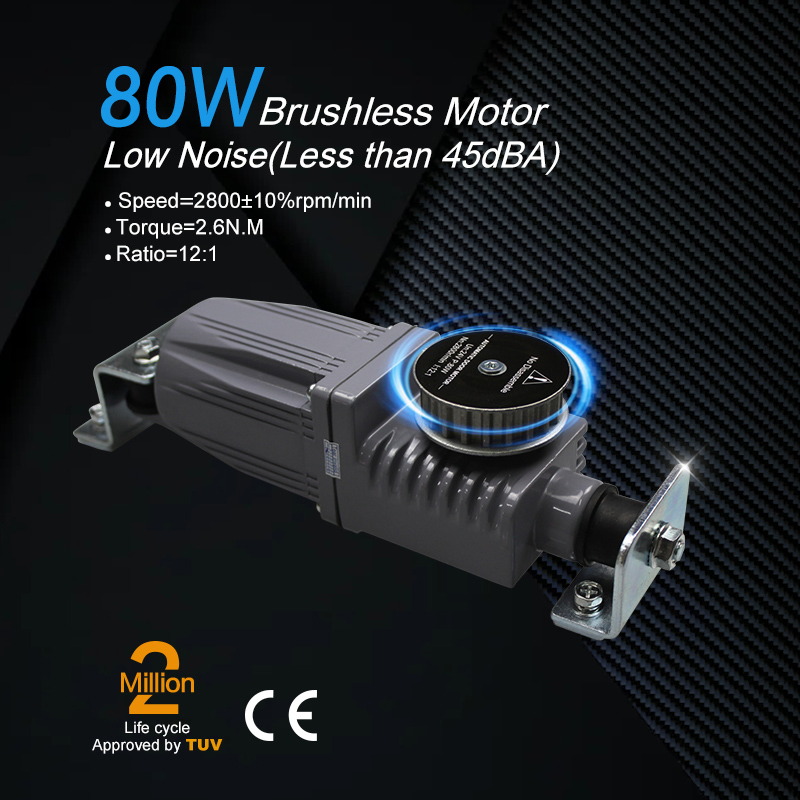

Brushless DC motor: Long working life and low noise (less than 40dB)
Anti-clamp safety function during opening and closing
Terminals for electronic lock, access keypad, and remote controls
Special terminals for anti-clamp side sensor for enhanced safety
Square motor designed for narrow door entrances

Key Advantages:

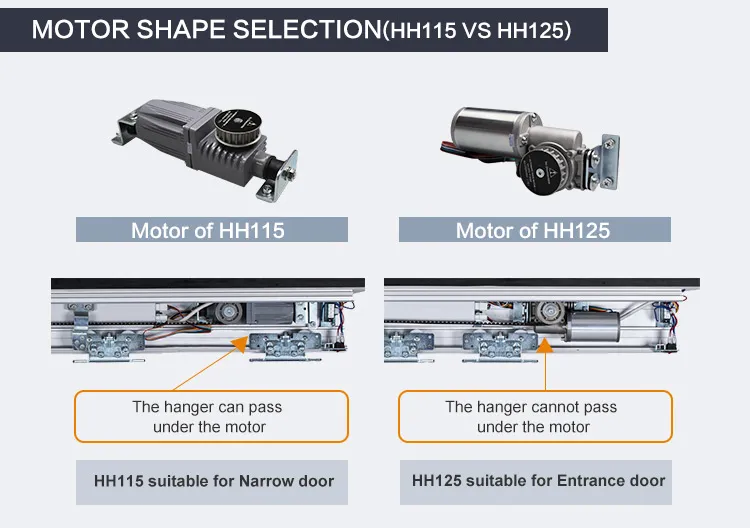

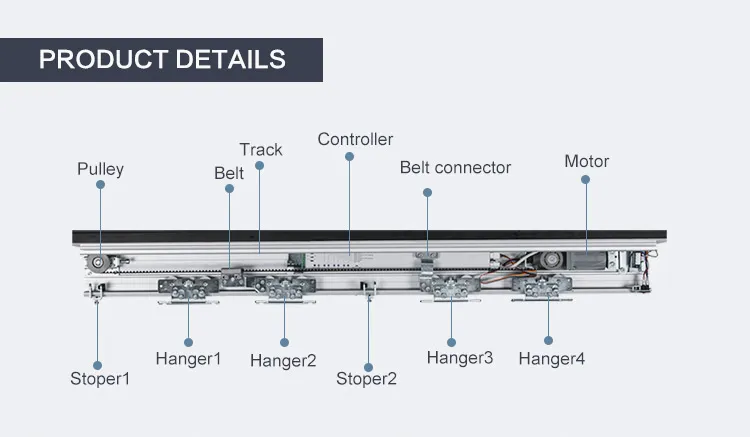

HH115 features a special design where hangers can pass the motor, making it the ideal choice for narrow entrance environments.

  • Five adjustable functions: Always open, half open, exit only, lock, normal open.
  • Battery backup compatibility: Door keeps open during power failure.

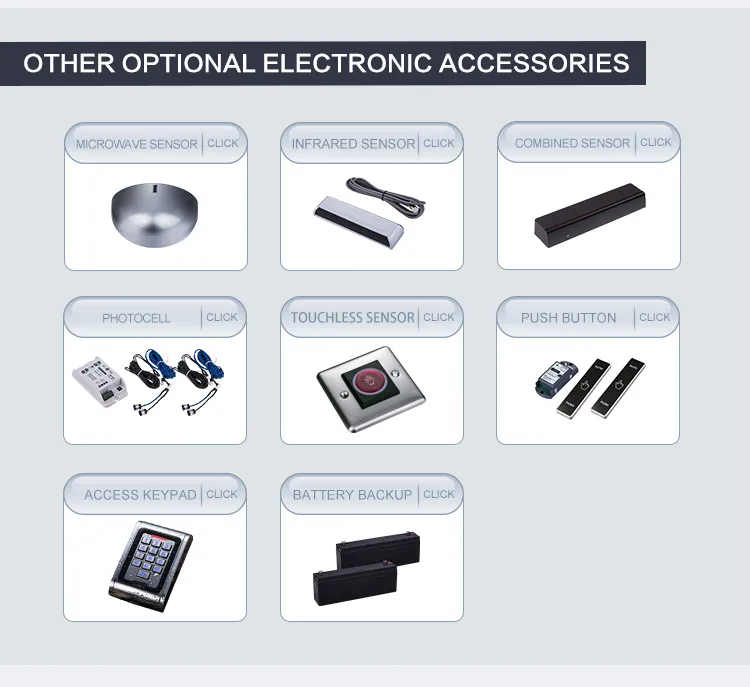

  • Highly compatible with accessories: Fingerprint readers, push buttons, fire alarms, etc.

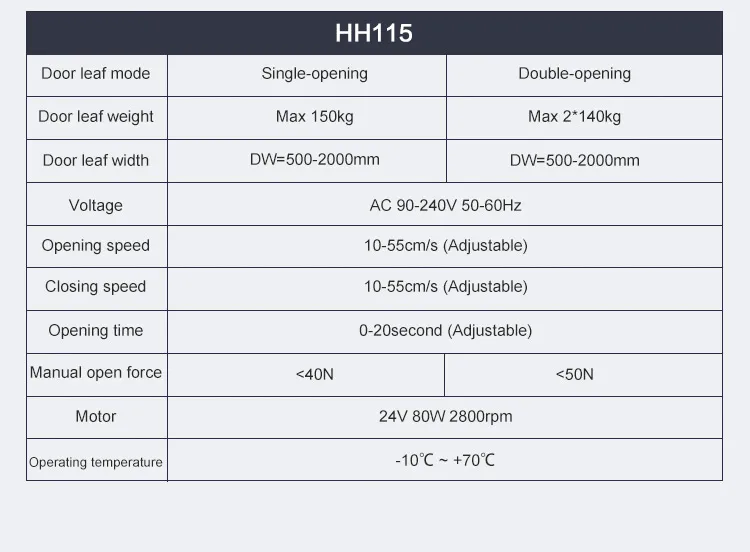

Max door weight (single)1*150kgs
Max door weight (double)2*140kgs
Door leaf width500-2000mm
Opening speed150-500mm/s (Adjustable)
Closing speed150-450mm/s (Adjustable)
Square motor24V 65W brushless DC motor
Opening time0-20 seconds (Adjustable)
VoltageAC90-250V 50Hz-60Hz
Operating Temperature-20°C to +70°C
Drive System
Motor Detail

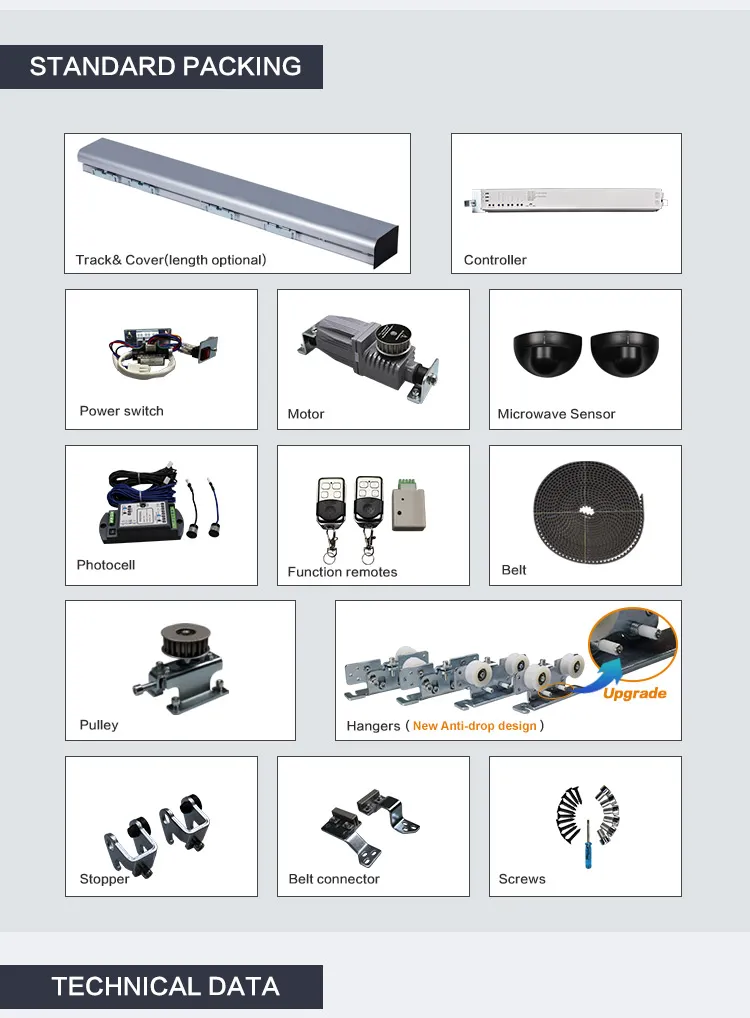

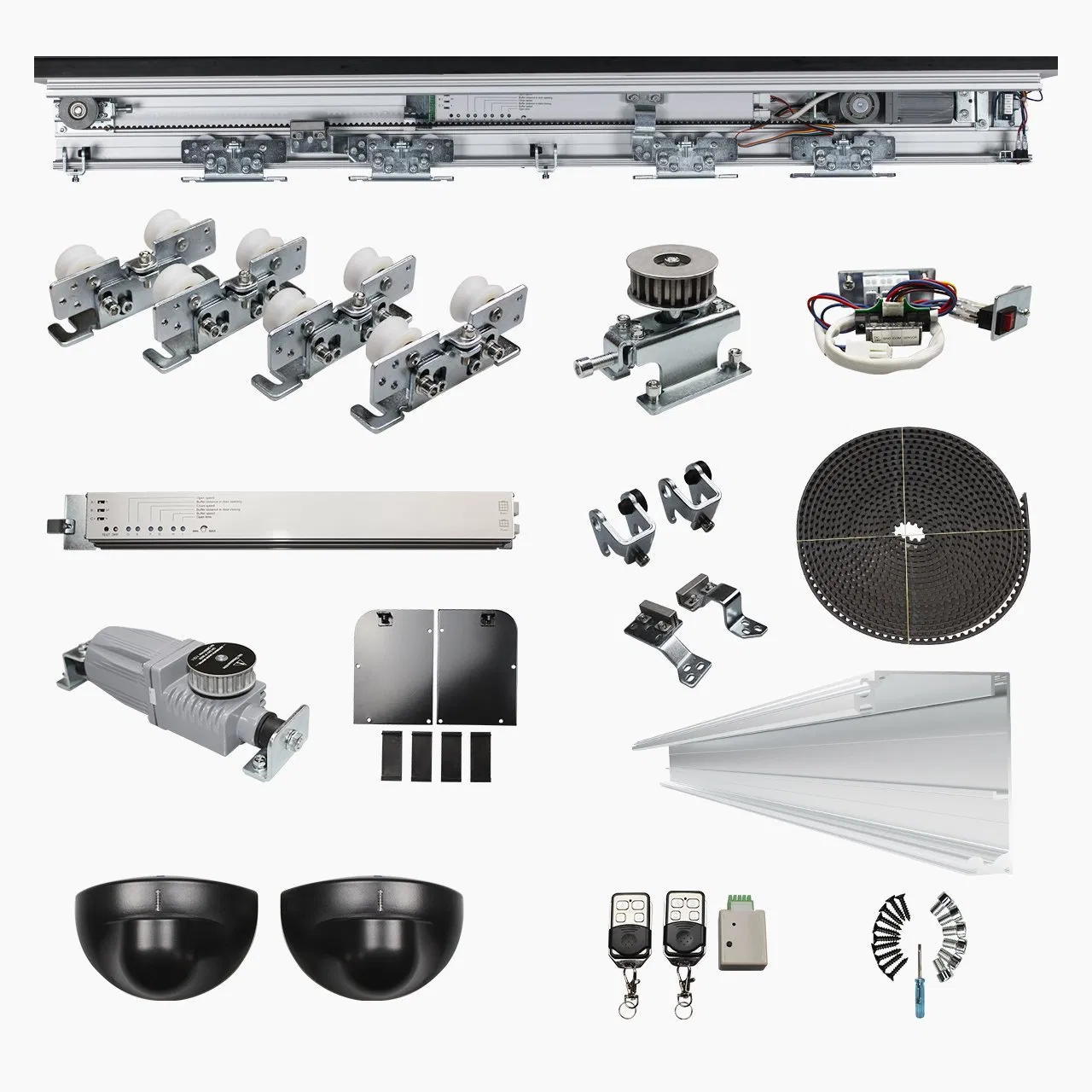

System Components
Installation Diagram
Control Board

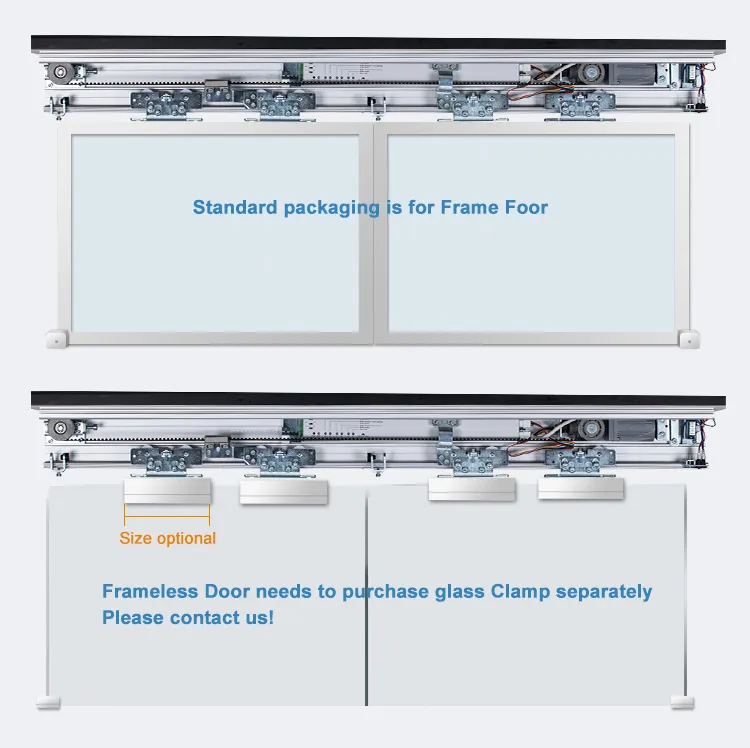

Hanger Design

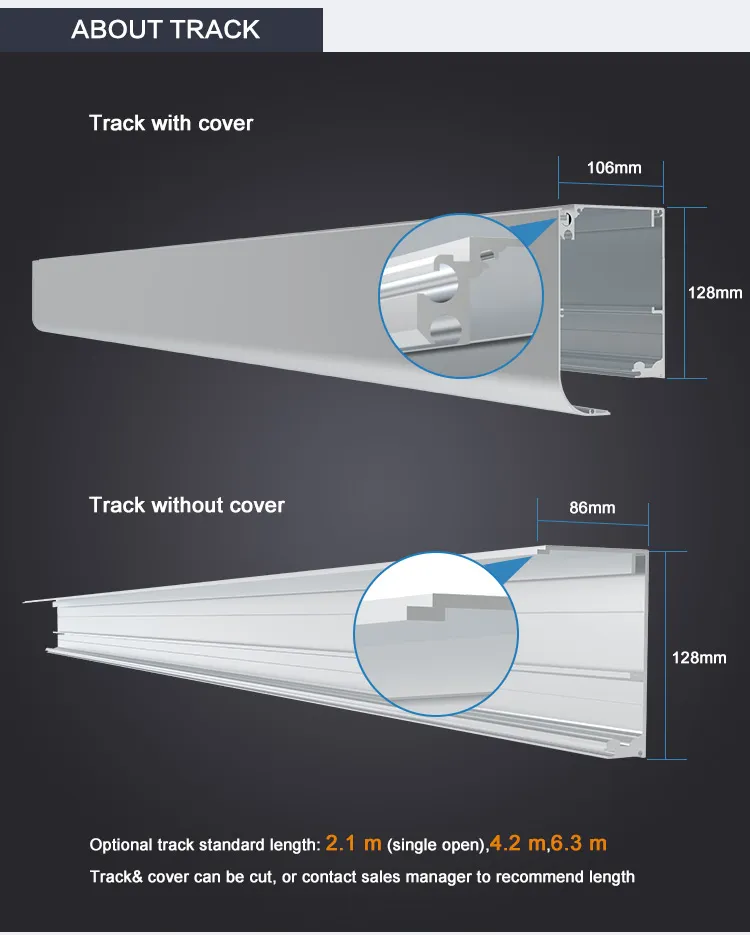

Track Profile

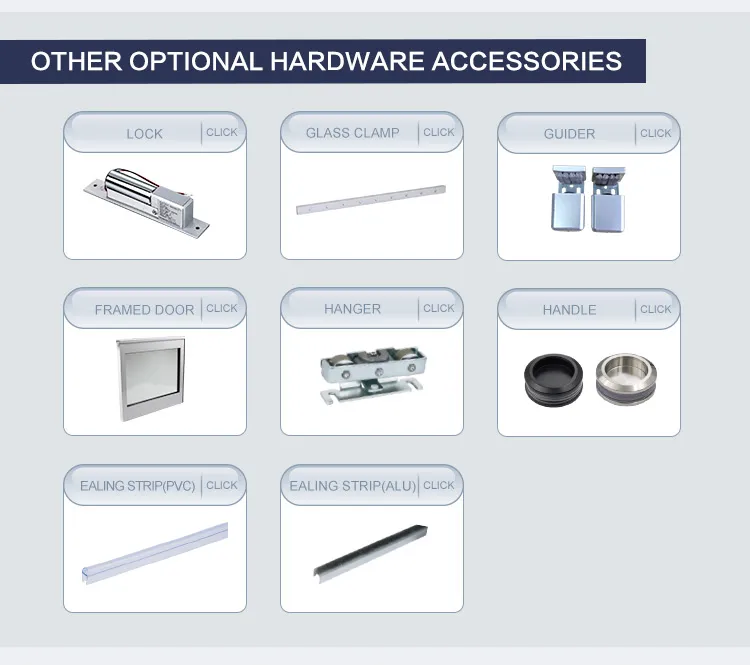

Accessories
Sensor View
Remote Control
Package Details
Final Assembly
Frequently Asked Questions
What makes the HH115 suitable for narrow entrances?
The HH115 is designed with a special Japanese-style hanger system that allows the hangers to pass the motor, maximizing the available space in narrow door frames.
How noisy is the automatic door motor?
The system utilizes a brushless DC motor which operates very quietly, with a noise level of less than 40dB, making it ideal for quiet commercial environments.
What happens if there is a power outage?
When equipped with a backup battery, the HH115 can be configured to keep the door in an open position during power loss for safety and accessibility.
Does the door have safety features to prevent clamping?
Yes, it features built-in anti-clamp technology for both opening and closing cycles, plus dedicated terminals for side safety sensors.
What control modes are available for the door?
Users can choose between five modes: Always Open, Half Open, Exit Only, Lock, and Normal Open via a remote or function keypad.
Is the opening speed adjustable?
Yes, the microprocessor control allows for precise digital adjustment of both opening speed (150-500mm/s) and closing speed (150-450mm/s).
