Extensive expertise in automatic door access control accessories and smart detection systems.
Full lifecycle management from research and development to high-standard production.
Compliant with TUV, ISO9001, CE, FCC, RoHS, and EN16005 international standards.

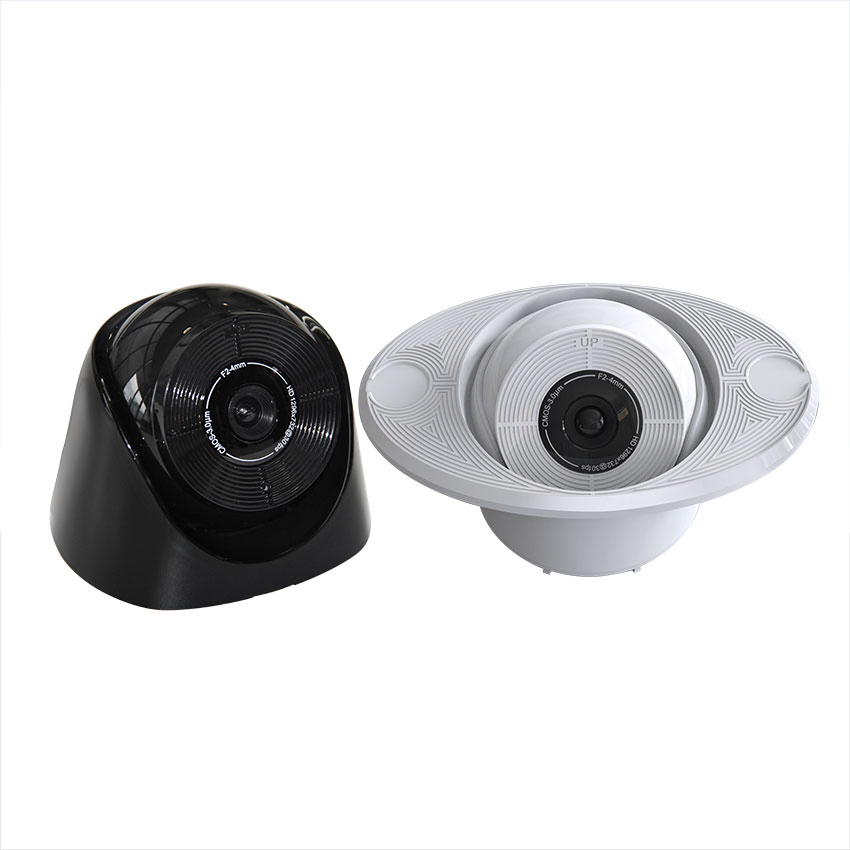

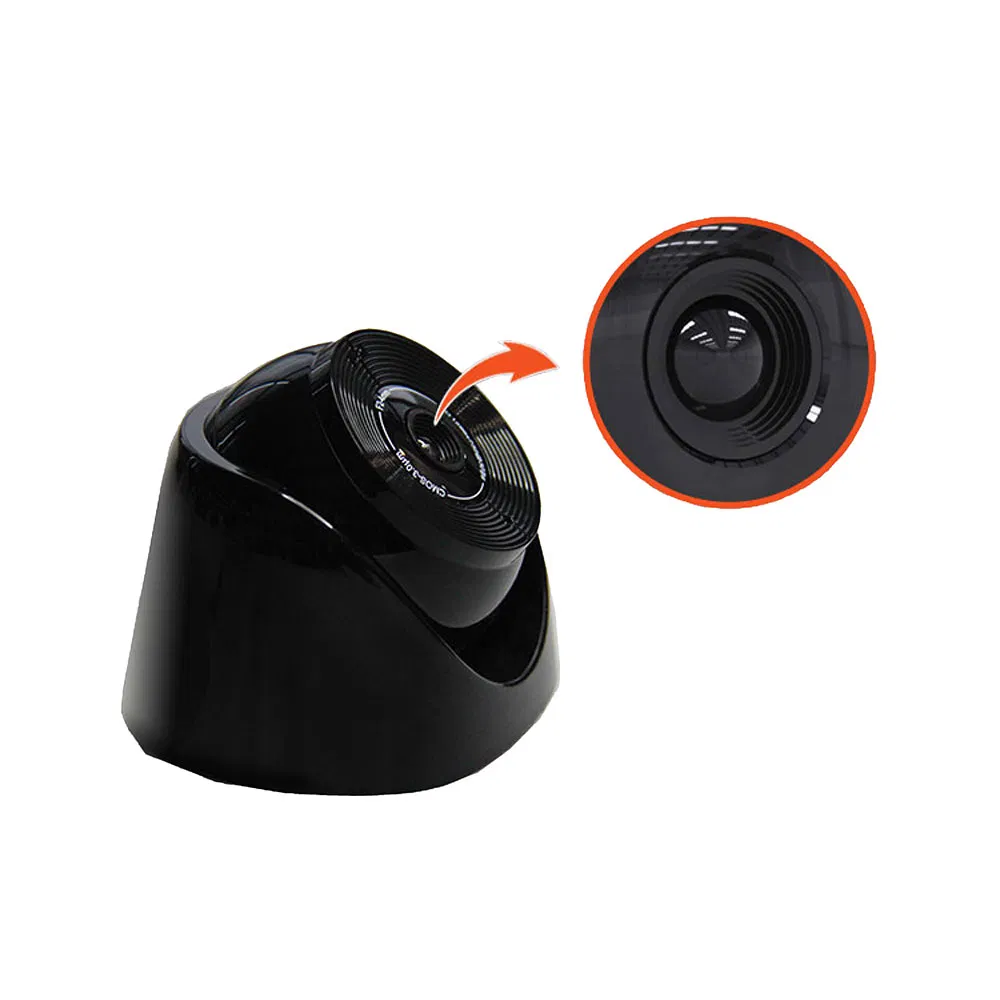

The LV801 Image Recognition Sensor is an advanced, intelligent detection device designed for security and motion functions in automatic door systems. Utilizing cutting-edge AI technology, it delivers reliable human figure recognition and motion detection, making it ideal for both residential and commercial use.

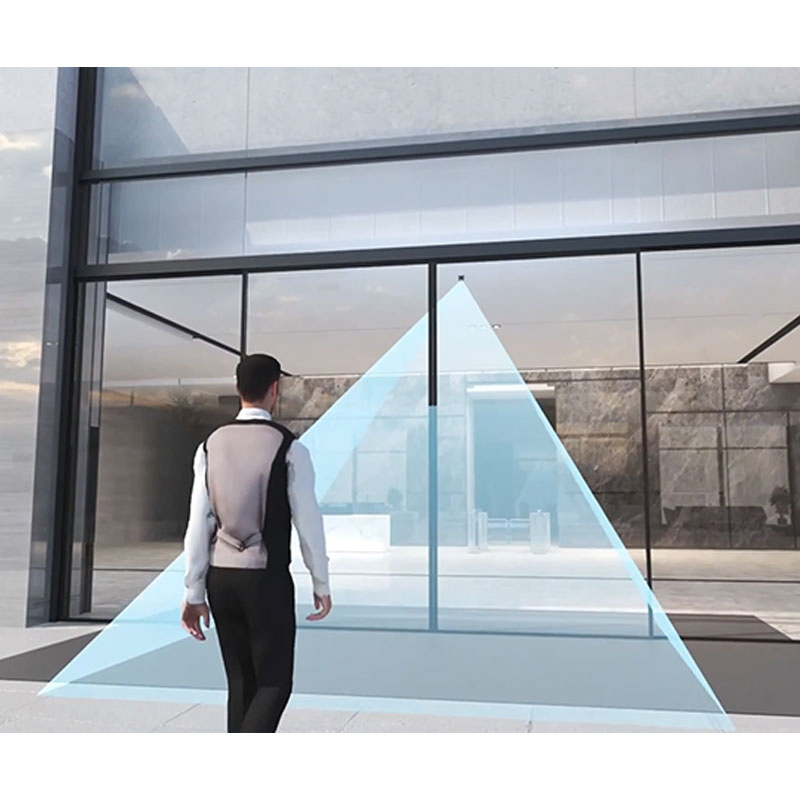

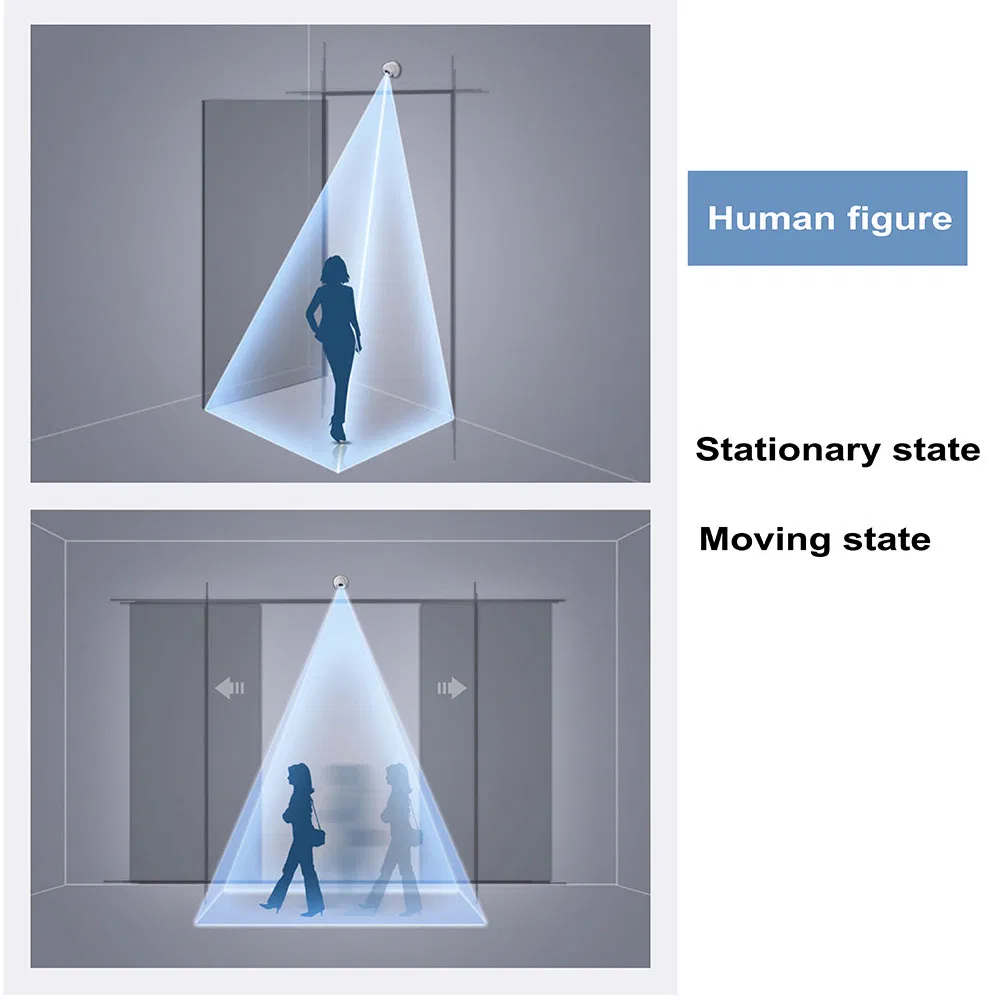

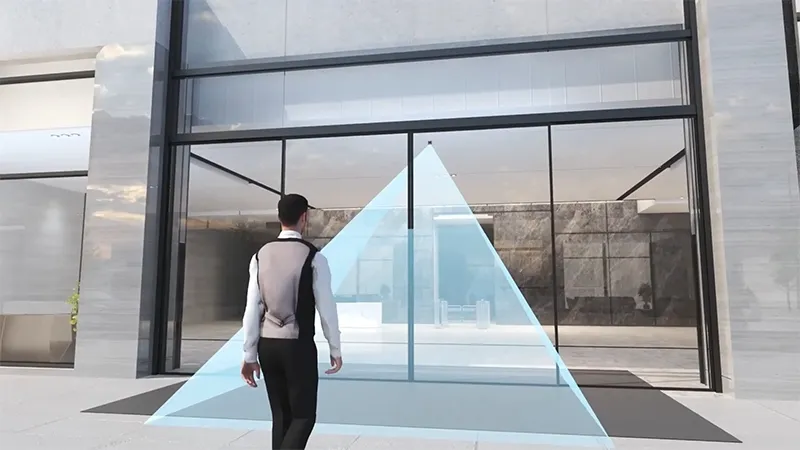

This camera sensor analyzes only the human figure within the detection area. Whether the person is moving or stationary, the sensor can output accurate signals. It functions as both a motion sensor and a presence safety sensor. Note: It does not detect non-human objects and does not store facial data.

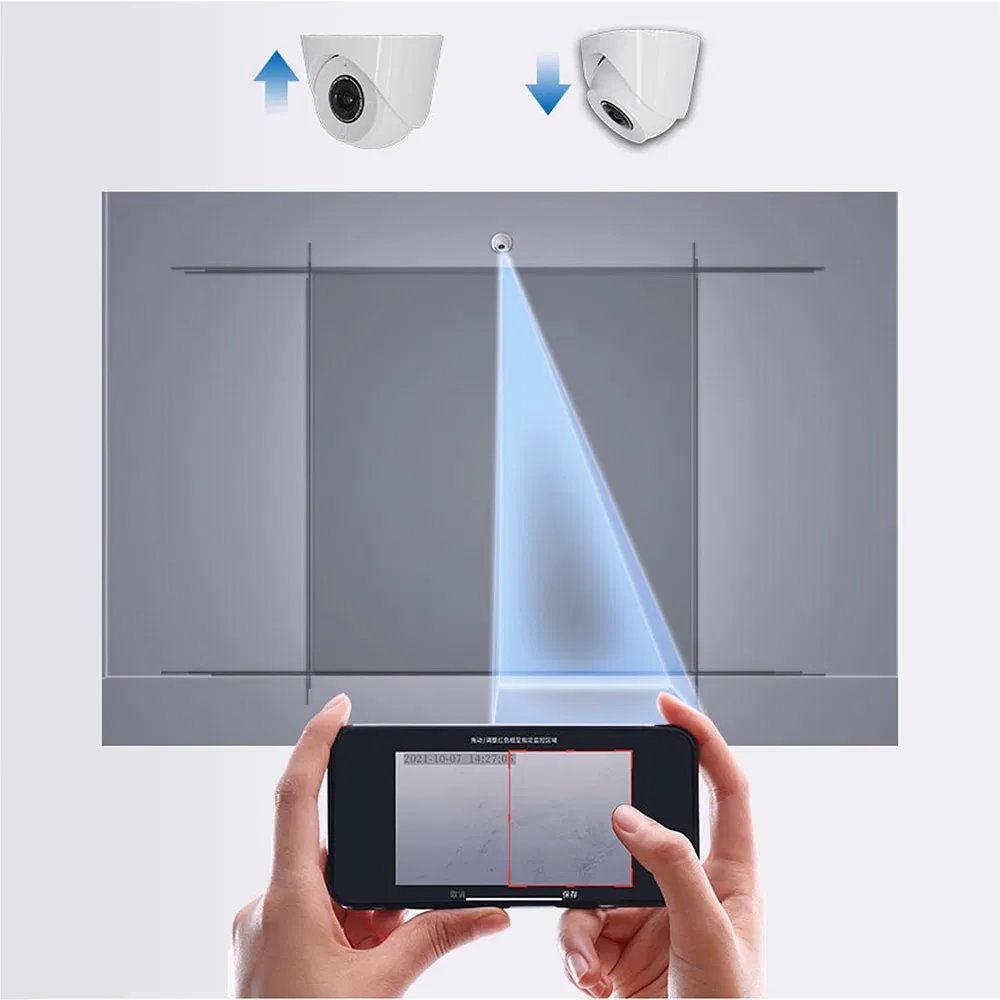

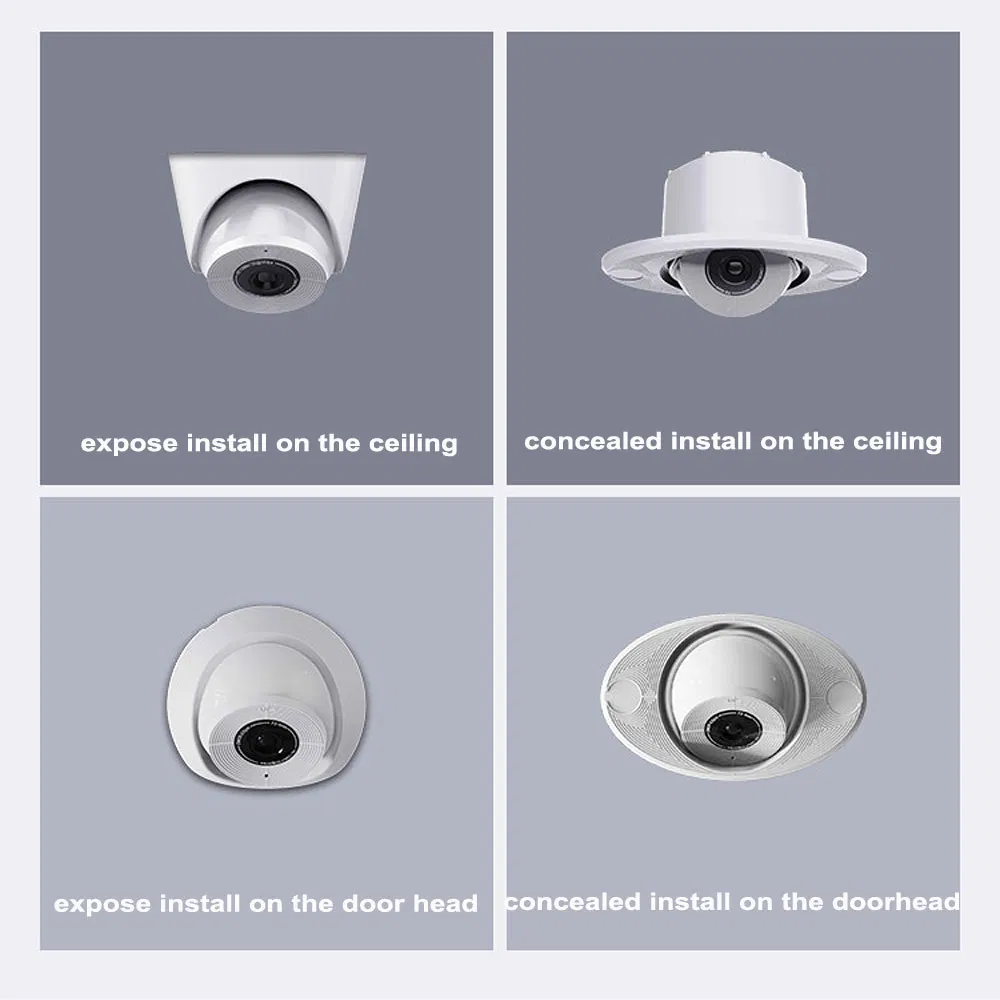

Installation Methods:
| Product | AI Recognition Door Sensor |
| Detection principle | AI Recognition Figure Detection |
| Detection Mode | Moving + Human Figure Detection |
| Camera pixel | HD 1080P (1600x1200) |
| Response speed | 50ms |
| Max Height | ≤6 meters |
| Power supply | AC/DC 12-30V |
| Signal Output | Relay NO/NC optional |
| Temperature | -20℃ ~ 60℃ |

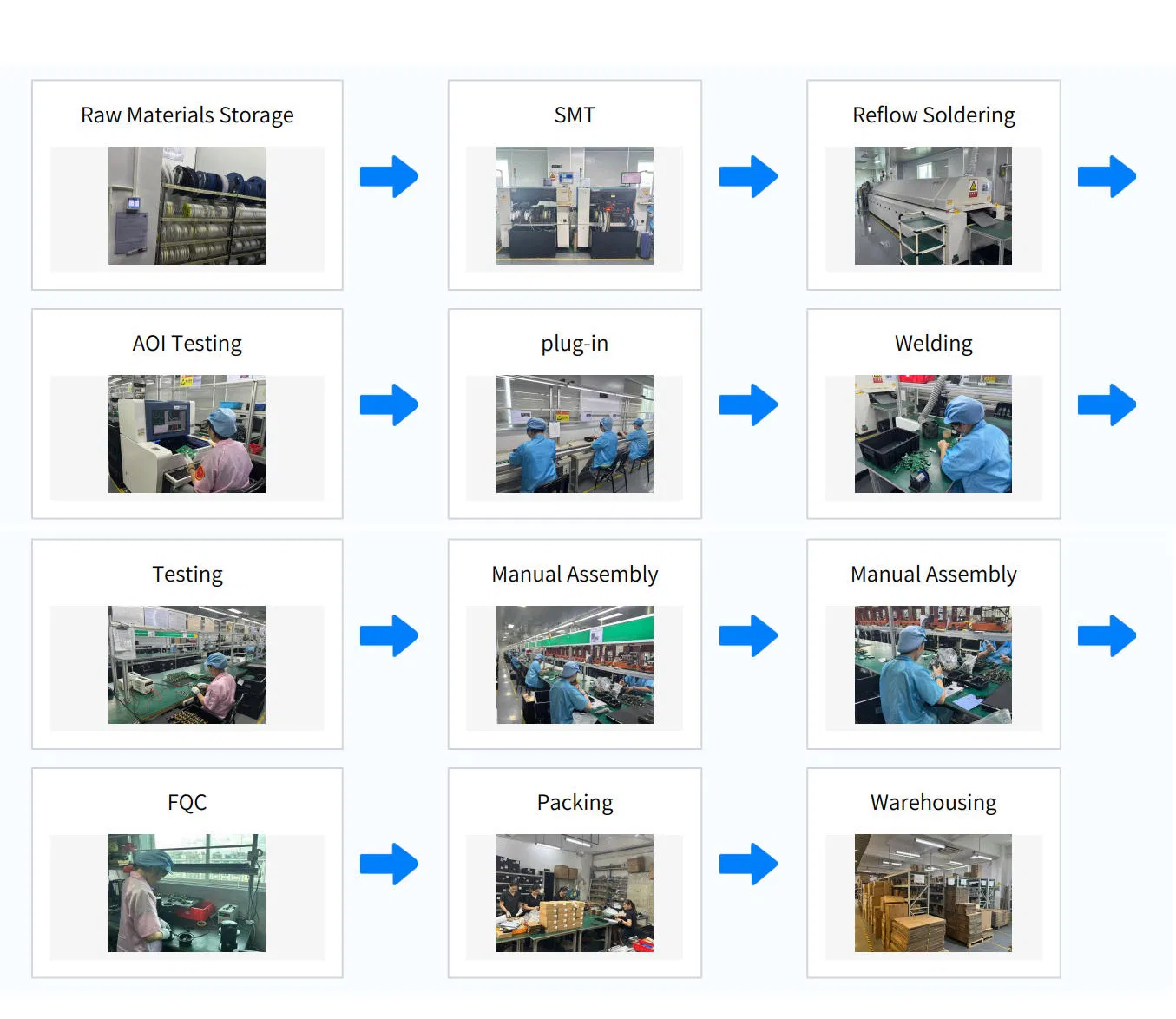

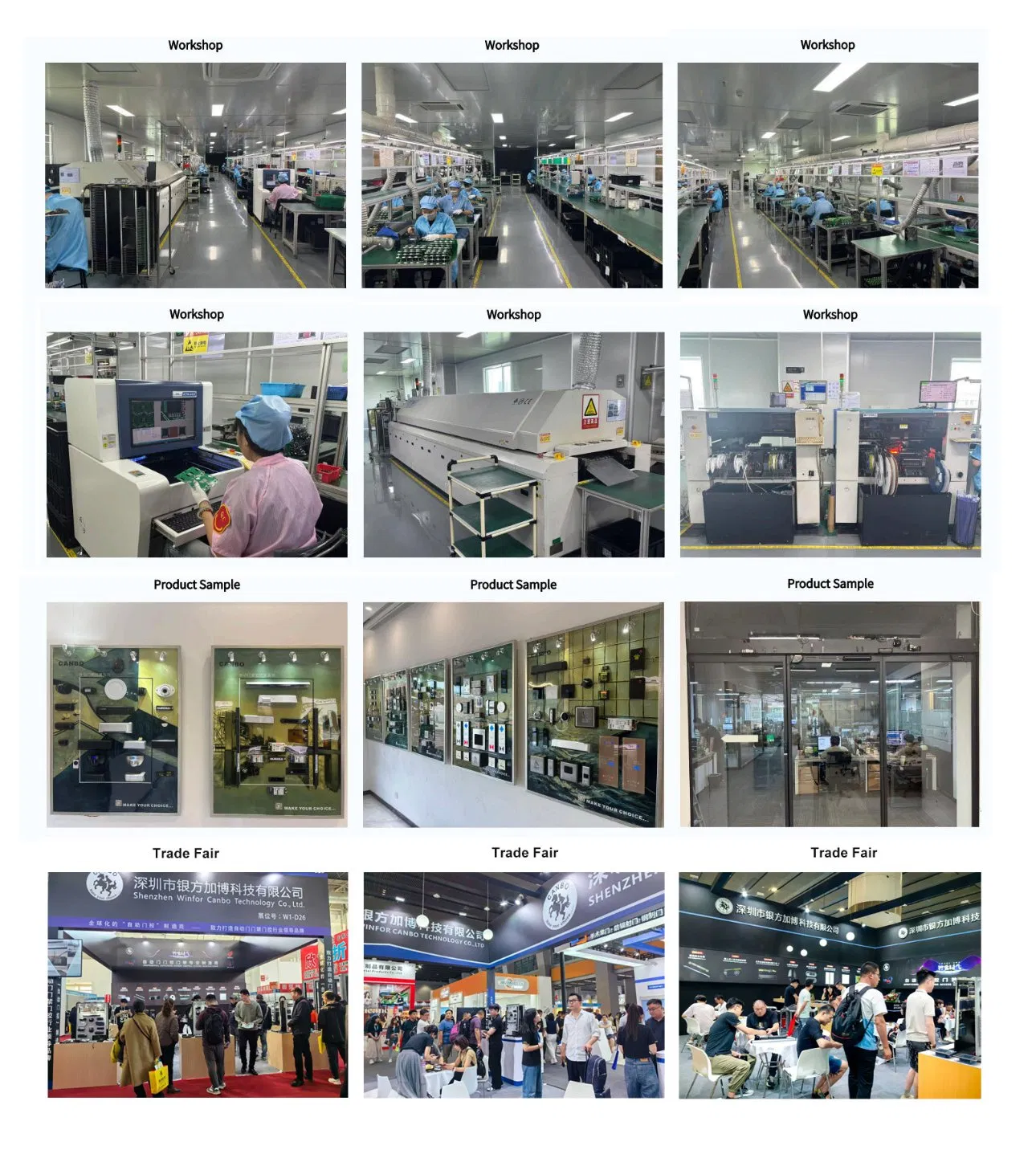

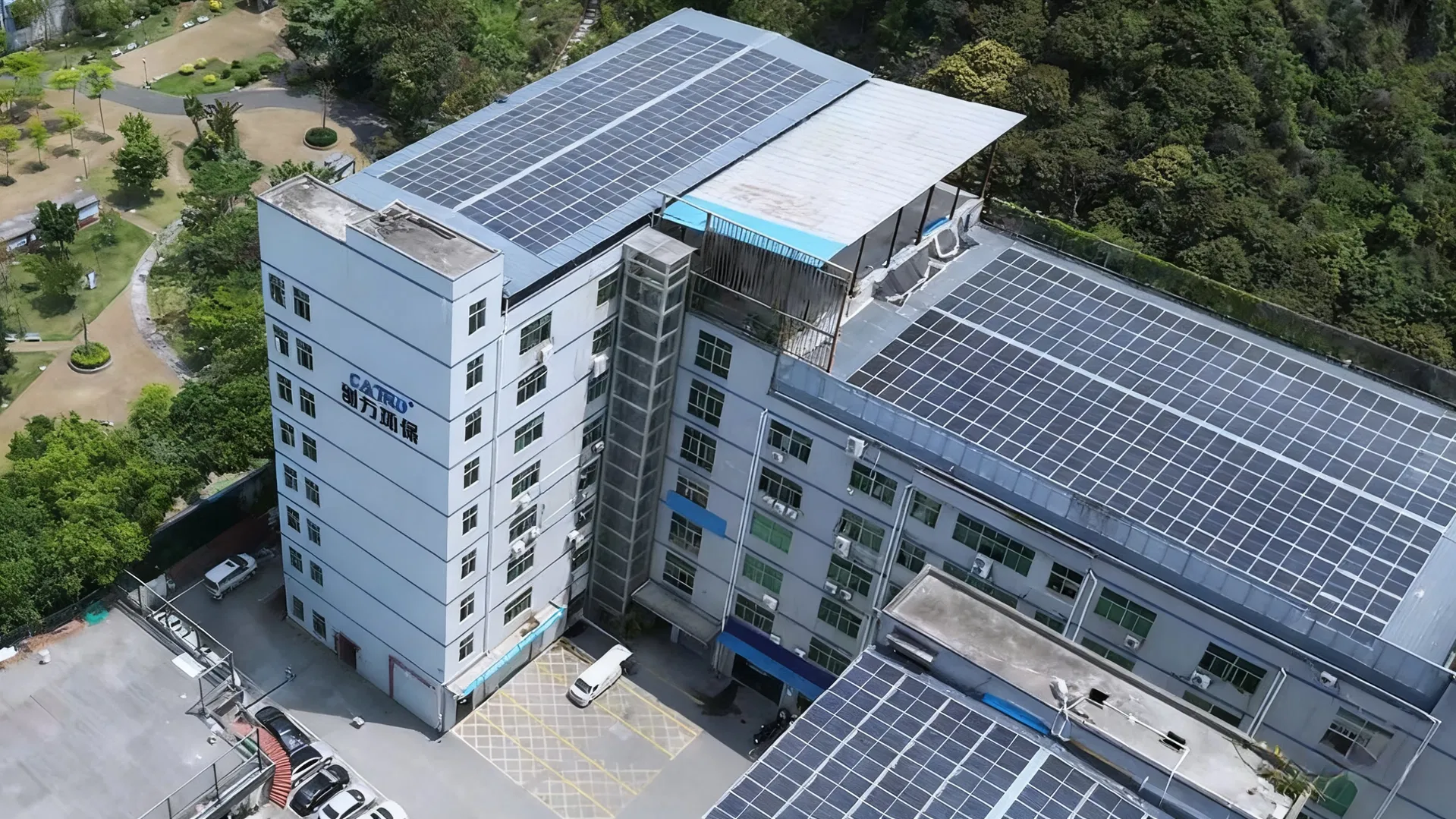

Established in 2006, the facility focuses on the R&D and manufacturing of automatic door control systems. The production lines integrate software, hardware, intelligent identification, and IoT technology. Most products have passed CE, FCC, and ROHS certifications with applied patent protections. These solutions are widely used by engineering companies and international brands globally.
